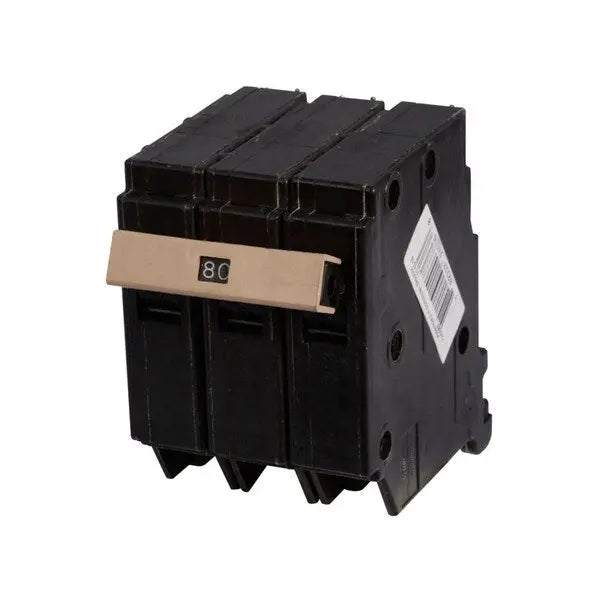

CH3080 - Eaton CH Thermal Magnetic Circuit Breaker

The Eaton CH Thermal Magnetic Circuit Breaker is designed for reliable protection in Type CH loadcenters, offering an 80 A capacity and 10 Kaic rating. This three-pole breaker is ideal for 240V systems and ensures safe operation with a common breaker trip. It accommodates wire sizes from 10 AWG to 1/0 AWG for both copper and aluminum. With its 3/4-inch standard design, it fits seamlessly into CH loadcenters, providing both thermal and magnetic protection.

Key Features:

• 80 A capacity for effective circuit protection
• 10 Kaic rating for high fault current withstand
• Three-pole design for 240V systems
• Common breaker trip for safety
• Accommodates 10 AWG to 1/0 AWG Cu/Al wire
• Fits CH loadcenters with a 3/4-inch standard breaker size

This breaker is an essential component for maintaining the safety and reliability of your electrical system in residential and commercial applications.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - CH3080

Warranty guides
Eaton type CH circuit breaker limited warranty June 2024
