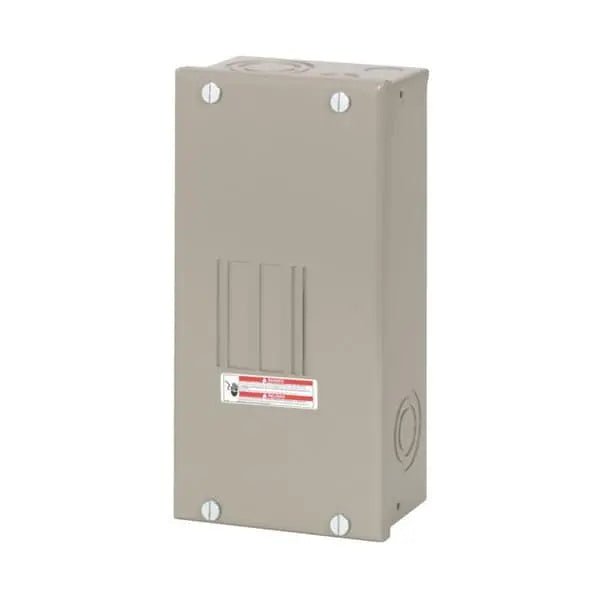

CH2L70SP - Eaton CH Main Lug Loadcenters

The Eaton CH Main Lug Loadcenter (Model: CH2L70SP) is a compact and reliable solution for residential and light commercial electrical distribution. With a 70 A rating, it supports two circuits and two spaces, operating at 120/240 V AC single-phase.The loadcenter accommodates wire sizes ranging from 14 AWG to 2 AWG, ensuring flexibility for various installation needs.Its copper bus material provides reliable conductivity, and the metallic enclosure ensures durability.The unit is designed for surface mounting and supports both top and bottom feed configurations.Its compact dimensions make it suitable for installations where space is limited.

Key Features:

• 70 A rating with support for two circuits and two spaces
• Operates at 120/240 V AC for standard residential applications
• Copper bus material for reliable conductivity
• Supports wire sizes from 14 AWG to 2 AWG
• Compact design suitable for surface mounting
• Supports both top and bottom feed configurations

This Eaton CH Main Lug Loadcenter offers a reliable and space-efficient solution for managing electrical distribution in various settings.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Multimedia
AFCI Educational Video

Specifications and datasheets
Eaton Specification Sheet - CH2L70SP

Warranty guides
Eaton type CH circuit breaker limited warranty June 2024
