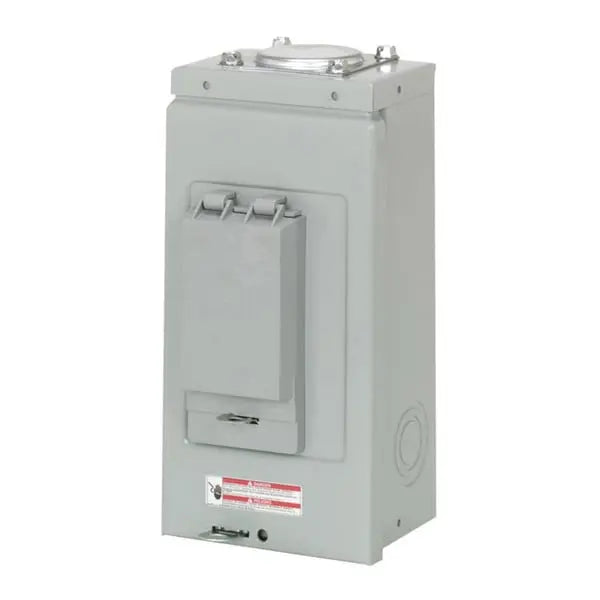

CH2L70RP - Main Lug Load Center

The Main Lug Load Center is engineered for small-scale power distribution with reliable performance and durable construction. Featuring 2 spaces and 2 circuits, it is ideal for subpanels, small residential loads, or outbuilding applications.

With a 70 Amp capacity and 120/240 V AC voltage rating, this load center supports 14 to 2 AWG wire sizes, making it suitable for a range of wiring configurations. The copper bus ensures excellent conductivity and long-lasting performance, while the metallic enclosure offers robust protection in various indoor environments.

Its compact footprint is perfect for tight installations, providing convenience without sacrificing safety or efficiency.

Key Features:

• 2 spaces / 2 circuits – ideal for compact power distribution
• 70 A main lug rating for light-load applications
• Copper bus material for reliable conductivity
• Wire size compatibility: 14 – 2 AWG
• Voltage rating: 120/240 V AC
• Durable metallic construction
• Dimensions: 4.50 in (L) × 3.13 in (W) × 9.50 in (H)
• Weight: 4.06 lb

This 70A Main Lug Load Center is a smart solution for garages, workshops, and accessory buildings where compact yet dependable load distribution is needed.
