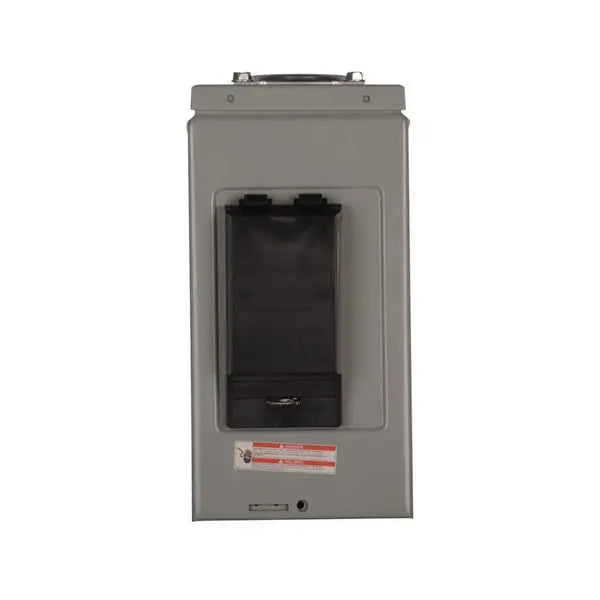

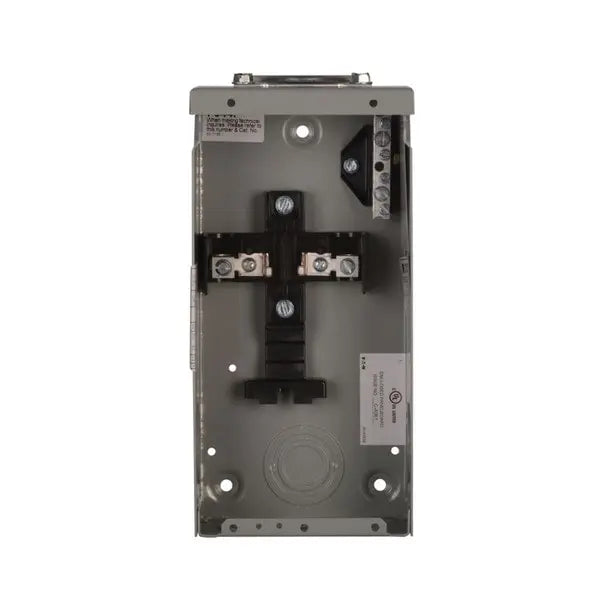

CH2L40RP - Main Lug Load Center

The Main Lug Load Center is a compact and efficient power distribution unit designed for smaller residential or light-duty applications. Rated at 40 A, it supports 2 spaces and 2 circuits, operating at 120/240 V AC. The unit is compatible with wire sizes ranging from 14 AWG to 6 AWG, making it suitable for basic electrical setups. Its durable metallic enclosure and copper bus material ensure solid performance and reliable conductivity. With a lightweight design and surface-mountable dimensions, this load center is easy to install in tight spaces.

Key Features:

• 40 A rating with 2 spaces and 2 circuits
• Operates at 120/240 V AC for standard residential applications
• Supports 14 AWG to 6 AWG wire sizes
• Copper bus material for reliable conductivity
• Compact size: 4.50" L x 3.13" W x 9.50" H, weighing 3.5 lb

This Main Lug Load Center is a reliable choice for compact electrical distribution needs.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Multimedia
AFCI Educational Video

Specifications and datasheets
Eaton Specification Sheet - CH2L40RP

Warranty guides
Eaton type CH circuit breaker limited warranty June 2024
