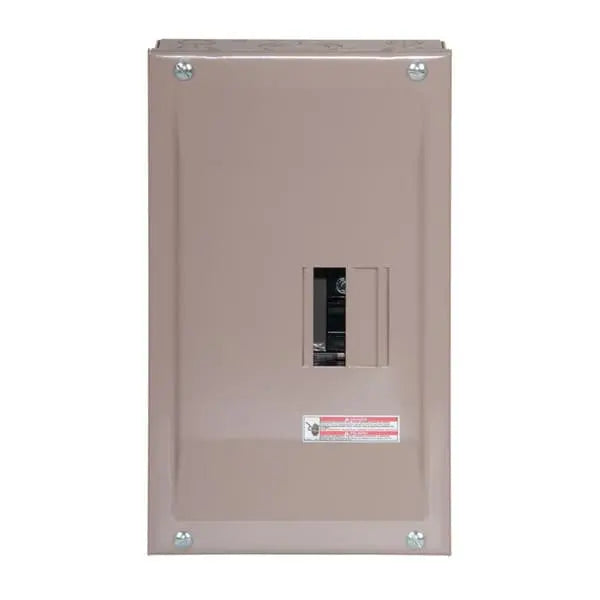

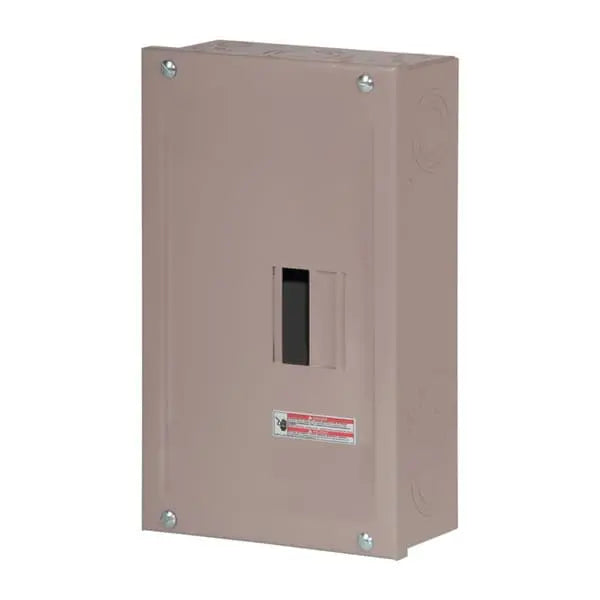

CH2L125SP - Main Lug Load Center

The Main Lug Load Center is a compact and durable power distribution solution designed for residential and light commercial applications. With a 125 A rating, it supports 2 spaces and 2 circuits, making it ideal for small-scale installations. This unit operates at 120/240 V AC and accommodates wire sizes ranging from 1 AWG to 4/0 AWG. Built with a metallic enclosure and copper bus material, it ensures reliable conductivity and long-term performance. The surface mount design and trim style provide easy installation and a clean finish.

Key Features:

• 125 A rating with support for 2 circuits and 2 spaces
• Operates at 120/240 V AC for standard power systems
• Copper bus material for superior electrical conductivity
• Supports wire sizes from 1 AWG to 4/0 AWG
• Compact surface mount design with dimensions of 6.88" L x 3.39" W x 11.38" H

This main lug load center is a practical and efficient choice for compact, safe, and durable circuit management.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Multimedia
AFCI Educational Video

Specifications and datasheets
Eaton Specification Sheet - CH2L125SP

Warranty guides
Eaton type CH circuit breaker limited warranty June 2024
