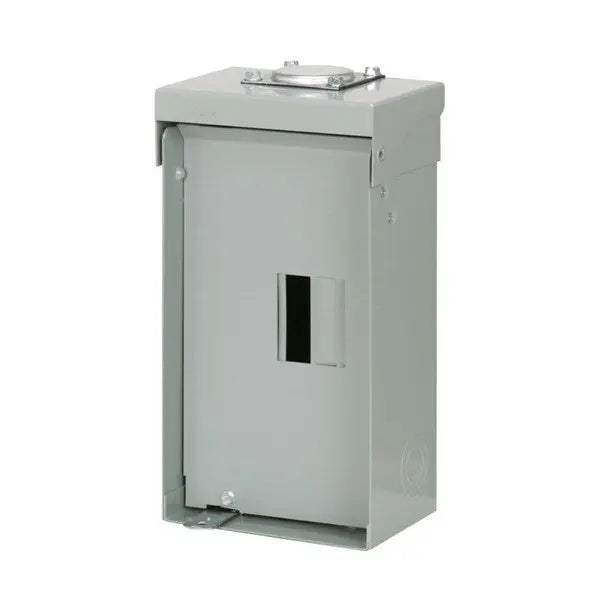

CH2L125RP - Main Lug Load Center

The Main Lug Load Center offers compact and reliable power distribution for smaller electrical systems. With 2 spaces and 2 circuits, it’s an ideal solution for sub-panels, small additions, or other applications where limited circuit capacity is required.

Rated at 125 Amps and 120/240 V AC, this load center supports wire sizes from 1 AWG to 4/0 AWG, making it adaptable to various installation needs. It features a copper bus, ensuring optimal conductivity and long-term durability, while the metallic enclosure provides solid protection in demanding environments.

Its compact design allows for easy integration into tight spaces without compromising safety or performance.

Key Features:

• 2 spaces / 2 circuits for minimal load applications
• 125 A main lug rating for dependable power distribution
• Copper bus for superior electrical performance
• Wire size compatibility: 1–4/0 AWG
• Voltage rating: 120/240 V AC
• Sturdy metallic construction for enhanced durability
• Dimensions: 6.50 in (L) × 4.50 in (W) × 11.75 in (H)
• Weight: 7.35 lb

This Main Lug Load Center is perfect for use in garages, workshops, and outbuildings—offering a high-quality, compact, and dependable solution for your power distribution needs.
