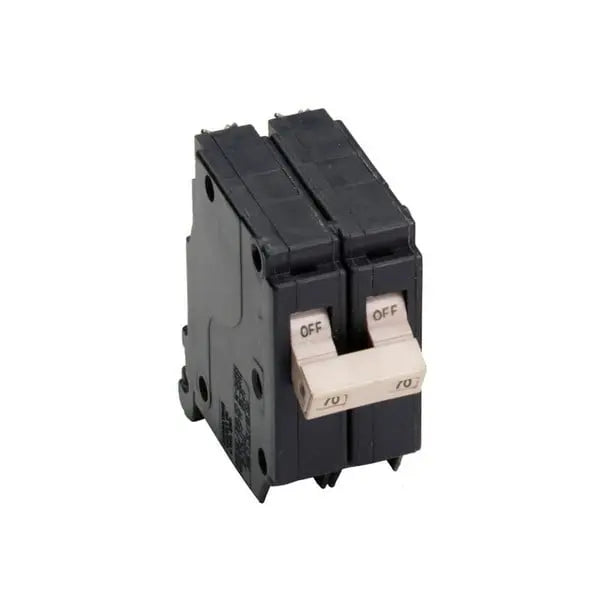

CH270 - Standard Trip Circuit Breaker

The Standard Trip Circuit Breaker provides dependable circuit protection for residential and light commercial applications. Rated at 70 Amps, it’s built to handle medium to high electrical loads safely and efficiently.

Featuring a common tripping mechanism, the breaker enhances safety by ensuring all connected poles trip simultaneously during an overcurrent event. Its Plug-On design simplifies installation into compatible panels, while the 120/240V AC rating supports versatile voltage requirements. With a slim profile at just 0.75 inches wide and a lightweight build of 0.57 lbs, it’s ideal for space-conscious panel configurations.

Key Features:

• 70 Amp rating for moderate to high load circuits
• Common tripping mechanism for synchronized safety
• Plug-On installation for quick, secure setup
• 120/240V AC voltage compatibility
• Compact: 0.75" width, 0.57 lb weight

Engineered for reliability and convenience, this circuit breaker is a smart choice for safe and efficient electrical system management.

Documents:

Catalogs

Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Specifications and datasheets

Eaton Specification Sheet - CH270

Warranty guides

Eaton type CH circuit breaker limited warranty June 2024
