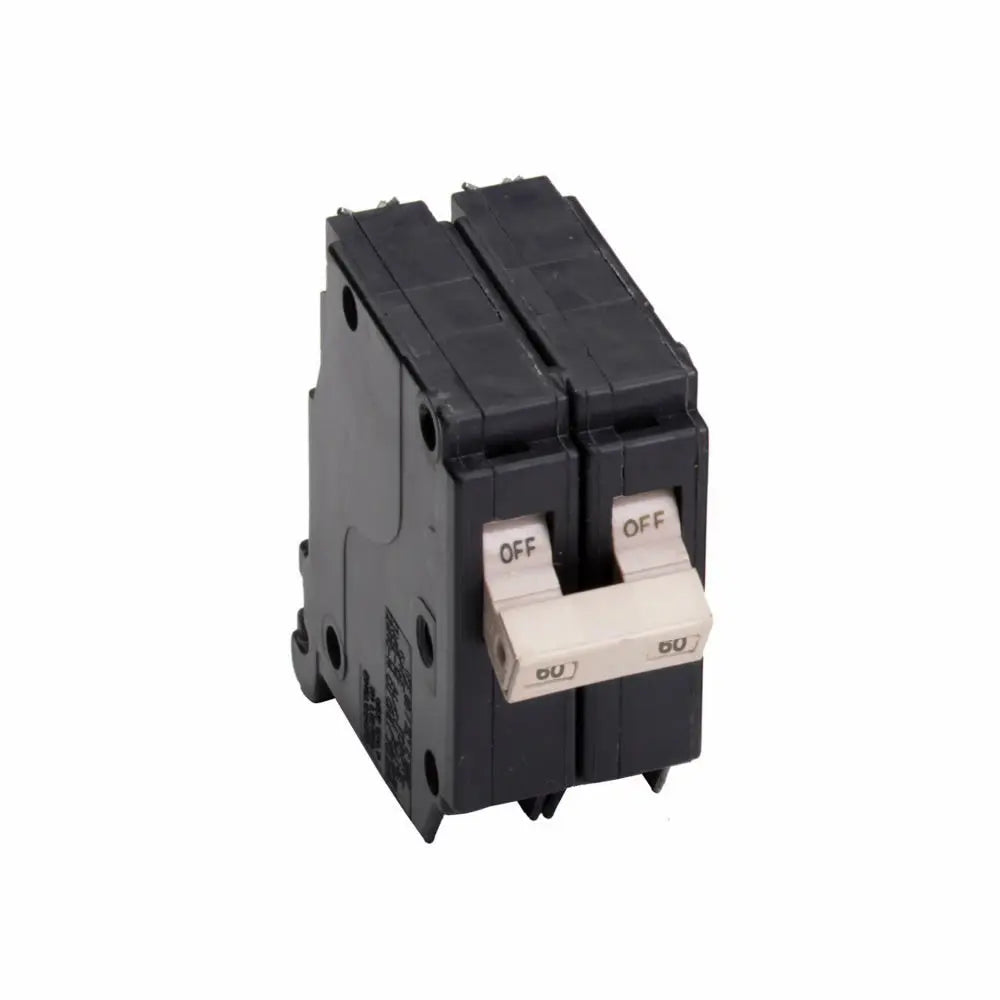

CH260 - Type CH BRKR 60A/2 Pole 120/240V 10K

Eaton CH260 60A Breaker - Reliable 2 Pole 120/240V Protection

Type CH BRKR 60A/2 Pole 120/240V 10K
Eaton CH Thermal Magnetic Circuit Breaker, Type CH 3/4-Inch Standard Circuit Breaker, 60 A, 10 Kaic, Two-Pole, 120/240V, CH, Common Breaker Trip, #14-2 Awg Cu/Al, CH, Type CH Loadcenters

Eaton's residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneous

Key Features:

• Interrupt rating: 10 kAIC
• Poles: Two-pole
• Voltage rating: 120/240 V


Documents:

Specifications and datasheets
Eaton Specification Sheet - CH260

Overview of Eaton CH260 60A Breaker Features

The Eaton CH260 60A breaker is a high-quality 2 pole circuit breaker designed for residential and commercial electrical systems. Operating at 120/240 volts, this Type CH breaker provides reliable protection against overloads and short circuits. Its robust design includes a 10,000-ampere interrupting capacity, ensuring safety and durability even in demanding environments. The CH260 model fits standard Type CH load centers, making it an ideal choice for upgrading or installing new electrical circuits with dependable performance and long-term reliability.

Technical Specifications and Benefits

This Eaton CH260 60A breaker offers significant technical advantages. The 60-amp rating supports moderate to heavy electrical loads, suitable for powering large appliances or multiple devices. With its 2 pole configuration, the breaker provides dual-pole protection at 120/240 volts, effectively covering split-phase electrical systems. The 10K interrupting capacity safeguards your circuits during fault conditions, minimizing potential damage to your home’s wiring. Its easy installation and compatibility with Eaton’s Type CH load centers also make maintenance and upgrades straightforward for electricians and DIY users alike.

Applications and Safety Compliance

Engineered for safety and efficiency, the Eaton CH260 60A breaker complies with industry standards and UL certifications. It is commonly used in residential homes, small businesses, and light commercial buildings where reliable circuit protection is crucial. This Type CH breaker effectively prevents electrical hazards by quickly interrupting fault currents, helping to avoid fires and equipment damage. Whether used for powering HVAC units, water heaters, or other heavy-duty appliances, the CH260 delivers consistent performance and peace of mind for electrical system safety.
