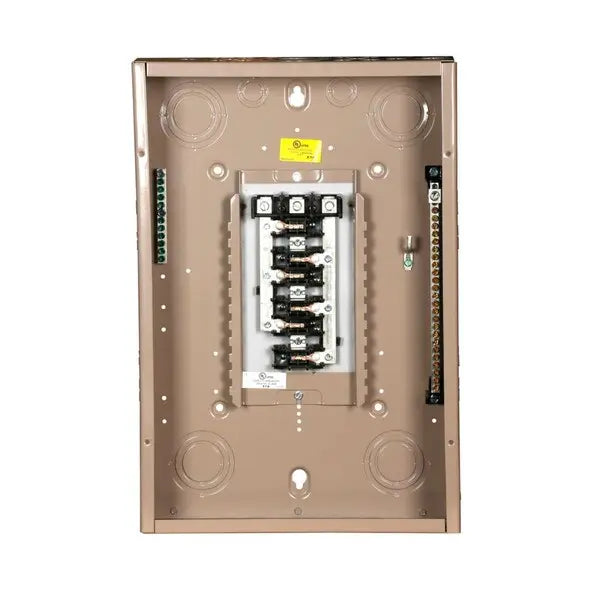

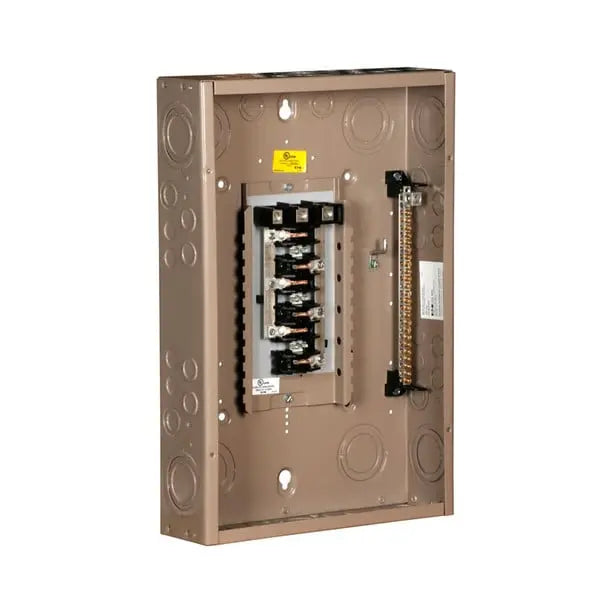

CH18L3125C - Eaton CH Main Lug Loadcenter

The Eaton CH Main Lug Loadcenter is designed for three-phase electrical systems, offering reliable and efficient power distribution. With a 125 A rating and a copper bus bar, it ensures optimal performance in a variety of residential and commercial settings. The loadcenter supports up to 18 circuits and 18 spaces, making it suitable for systems with multiple loads. It features a NEMA 1 indoor rating for protection against dust and light contact, and is designed for top/bottom feed installations. This unit supports a four-wire configuration, with compatibility for wire sizes ranging from 1 AWG to 4/0 AWG.

Key Features:

• 125 A rating with copper bus bar for efficient power distribution
• NEMA 1 indoor rating for protection against dust and light contact
• Supports up to 18 circuits and 18 spaces for versatile installations
• Designed for top/bottom feed configurations for flexible installation
• Compatible with wire sizes from 1 AWG to 4/0 AWG

This Eaton CH Main Lug Loadcenter is a reliable solution for safely distributing power in three-phase electrical systems, ensuring long-term performance and flexibility.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Multimedia
AFCI Educational Video

Specifications and datasheets
Eaton Specification Sheet - CH18L3125C

Warranty guides
Eaton type CH circuit breaker limited warranty June 2024
