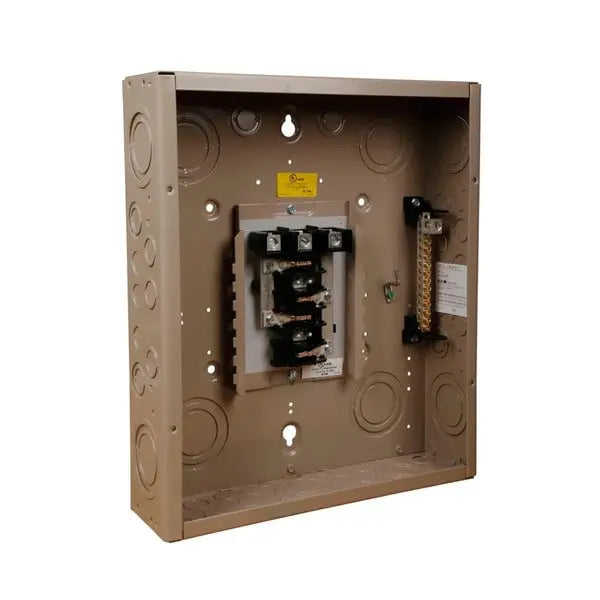

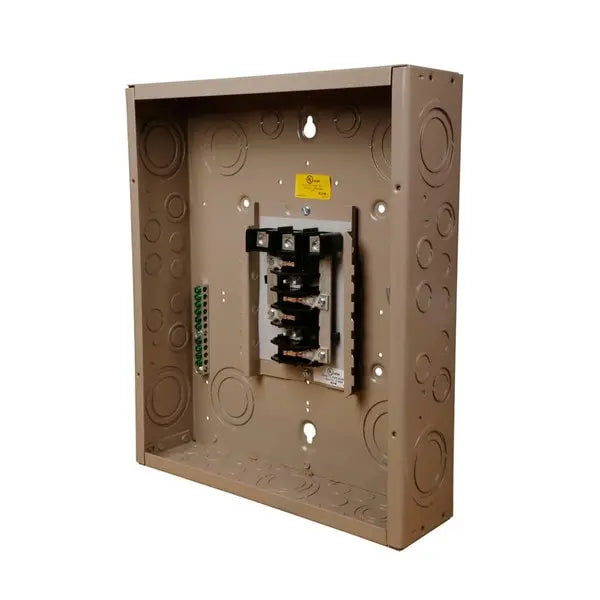

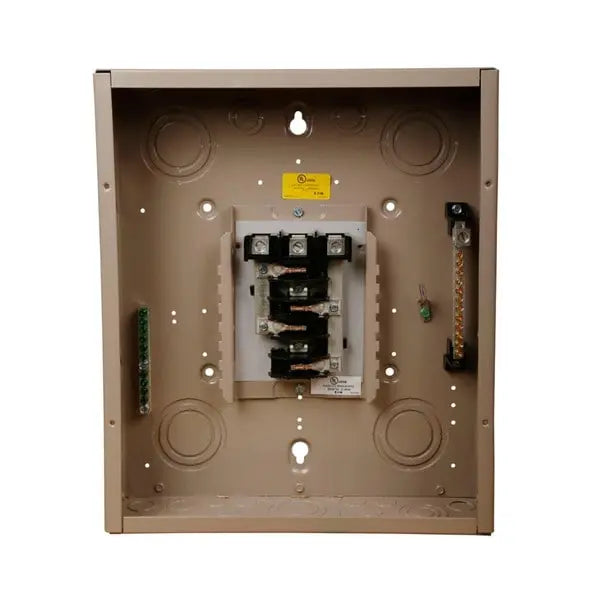

CH12L3125B - Eaton CH Main Lug Loadcenter

The Eaton CH Main Lug Loadcenter is designed for durability and flexibility in modern electrical distribution systems. With a 125 Amp rating and support for three-phase, four-wire configurations, this loadcenter is ideal for both residential and light commercial applications.

Constructed with a copper bus for excellent conductivity and a NEMA 1 metallic enclosure, it provides long-term reliability for indoor installations. Featuring 12 circuits and 12 spaces, it accommodates a wide range of wiring needs, and the top/bottom feed capability adds installation convenience.

Key Features:

• 125 A main lug, CH series for reliable performance
• Copper bus for superior electrical conductivity
• 12 circuits / 12 spaces for flexible load management
• Top and bottom feed design for easy installation
• NEMA 1 indoor-rated, metallic enclosure
• Compatible with 1–4/0 AWG wire sizes
• Three-phase, four-wire configuration

Designed to meet today's code and performance standards, this Eaton CH Loadcenter is a dependable solution for efficient power distribution.

Documents:

Catalogs

Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1
Multimedia

AFCI Educational Video
Specifications and datasheets

Eaton Specification Sheet - CH12L3125B
Warranty guides

Eaton type CH circuit breaker limited warranty June 2024
