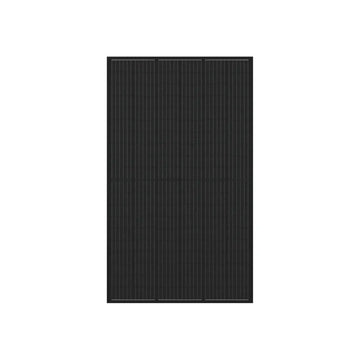

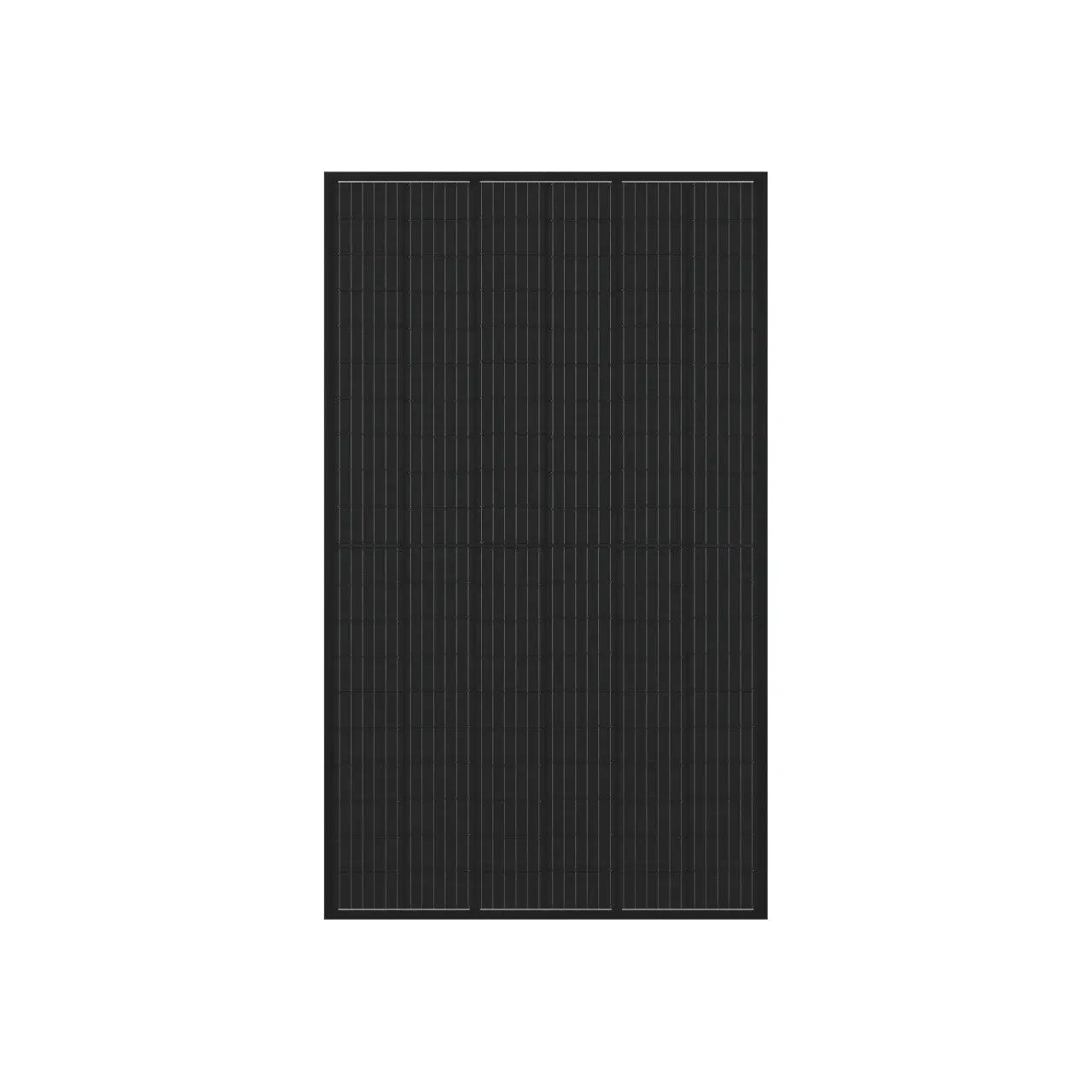

Canadian Solar 445W TOPHiKu6 CS6.2-48TM-H 445 N-Type Mono TOPCon Solar Panel

Discover the Canadian Solar TOPHiKu6 CS6.2-48TM-445H (445W) 48-Cell Solar Panel

The Canadian Solar TOPHiKu6 CS6.2-48TM-445H delivers exceptional performance and durability for both residential and commercial applications. Built with advanced N-Type TOPCon (Tunnel Oxide Passivated Contact) technology, this 445W module provides higher efficiency, improved temperature performance, and long-term reliability even in challenging environments.

Key Features

• High Power Output: 445W module power with industry-leading efficiency of up to 22.5%.

• N-Type TOPCon Technology: Provides superior power retention and lower degradation rates.

• Enhanced Low-Light Performance: Optimized for maximum energy yield in low irradiance conditions.

• Reduced LID & LeTID: Ensures stable long-term energy production with minimal performance loss.

• Durable Design: Certified for high wind (up to 2400 Pa) and snow loads (up to 5400 Pa).

• All-Black Aesthetic: Sleek design perfect for modern rooftop installations.

• Improved Bifaciality: Rear-side power gain of up to 30% for bifacial applications.

Electrical Specifications

• Rated Power (Pmax): 445W

• Module Efficiency: Up to 22.5%

• Open Circuit Voltage (Voc): 52.3V

• Short Circuit Current (Isc): 10.82A

• Maximum Power Voltage (Vmp): 43.8V

• Maximum Power Current (Imp): 10.17A

Mechanical Specifications

• Cell Type: N-Type Monocrystalline TOPCon, 48 cells (6x8 layout)

• Module Dimensions: 1,728 × 1,133 × 30 mm (68.0 × 44.6 × 1.18 in)

• Weight: 20.8 kg (45.9 lbs)

• Frame: Anodized aluminum alloy

• Front Cover: 3.2 mm tempered glass

Certifications

• IEC 61215 / IEC 61730 / UL 61730

• ISO 9001, ISO 14001, ISO 45001

Warranty

• 12-year product warranty on materials and workmanship

• 30-year performance warranty with 87.4% guaranteed power output at year 30


High Efficiency and Performance

The Canadian Solar TOPHiKu6 CS6.2-48TM-445H panel is renowned for its high efficiency, delivering an impressive 445W output. This efficiency is achieved through advanced engineering and cutting-edge technology, making it one of the top options in the market. Additionally, with its 48-cell design, it not only maximizes power output but also ensures enhanced performance under low-light conditions. Because of these factors, many homeowners and businesses are opting for this solar panel to reduce energy costs.

Durability for Long-Lasting Use

Constructed with high-quality materials, the Canadian Solar TOPHiKu6 is designed to endure harsh weather conditions. Its robust frame and tempered glass offer exceptional resilience against wind, snow, and hail. Therefore, installing this solar panel can provide peace of mind knowing it has been built for long-lasting durability. As a result, customers can expect reliable performance for 25 years or more, making it a sound investment for one’s energy needs.

Environmentally Friendly Solution

Solar energy is a renewable resource, and the Canadian Solar TOPHiKu6 contributes positively to the environment by reducing carbon footprints. Utilizing this panel means harnessing clean, green energy that helps reduce dependency on fossil fuels. Because of its outstanding efficiency and eco-friendly properties, many users find satisfaction knowing they are making a difference. Thus, switching to the Canadian Solar TOPHiKu6 is not just a smart financial choice; it’s also a commitment to sustainable living.

Document: Specification Sheet
