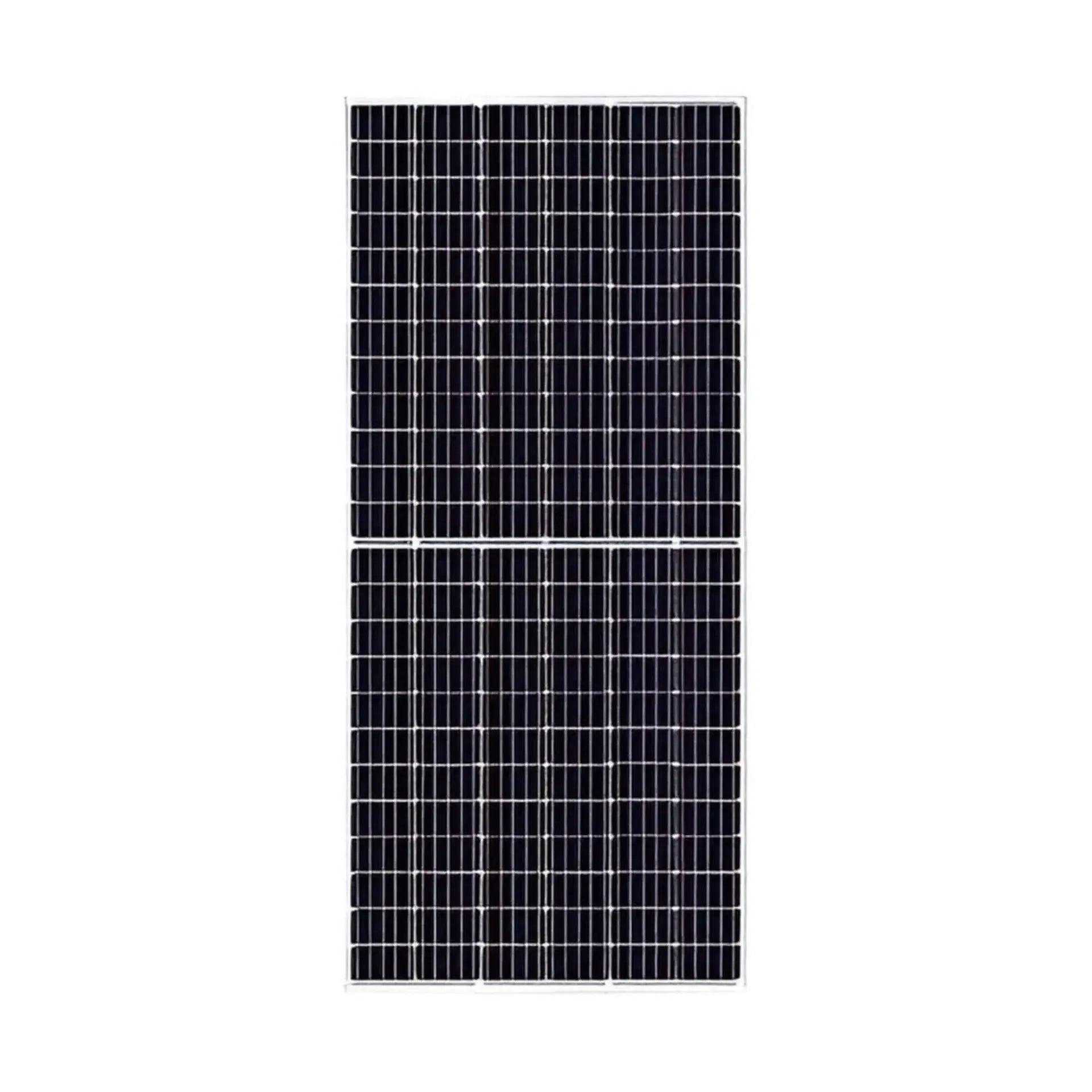

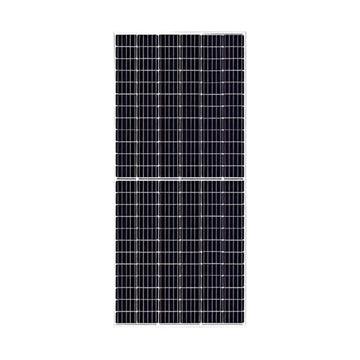

Canadian Solar KuMax 380W 144 Cells Mono Solar Panel
-
Estimated Delivery:Jun 11 - Jun 15
-
Free Shipping & Returns: On all orders under $50
Canadian Solar KuMax 380W 144 Cells Mono Solar Panel
Explore the Features and Benefits of the Canadian Solar KuMax 380W Panel
The Canadian Solar KuMax 380W is a proven, bankable solar module from one of the world's most trusted manufacturers. Designed for residential and commercial rooftop applications, this high-efficiency Mono PERC panel delivers reliable performance, strong low-light output, and the peace of mind that comes with Canadian Solar's industry-leading warranty and global reputation.
✅ In Stock — Ready to Ship from Our U.S. Distribution Centers
Why Choose the Canadian Solar KuMax 380W?
- High-Efficiency Mono PERC Technology: Maximizes energy output in limited roof space
- Bankable & Trusted Brand: Canadian Solar is one of the most financeable module brands in the world
- Excellent Low-Light Performance: Consistent output even in diffuse light conditions
- Low Hot Spot Temperature: Reduces thermal stress for longer module lifespan
- Versatile Application: Ideal for residential rooftops, commercial installations, and C&I projects
Technical Specifications
| Specification | Value |
|---|---|
| Model | CS3U-380MS |
| Peak Power (Pmax) | 380W |
| Power Range | 380–400W |
| Cell Technology | Mono PERC |
| Cell Configuration | 144 Half-Cut Cells (4BB) |
| Open Circuit Voltage (Voc) | 49.2V |
| Short Circuit Current (Isc) | 9.84A |
| Max Power Voltage (Vmp) | 41.4V |
| Max Power Current (Imp) | 9.19A |
| Max System Voltage | 1000V / 1500V DC |
| NOCT | 42 ± 3°C |
| Temp. Coefficient (Pmax) | -0.36% / °C |
| Temp. Coefficient (Voc) | -0.29% / °C |
| Temp. Coefficient (Isc) | +0.05% / °C |
| Module Dimensions | 2000 x 992 x 35 mm (78.7 x 39.1 x 1.38 in) |
| Weight | 24.9 kg (54.9 lbs) |
| Frame | Silver Anodized Aluminum |
| Front Glass | 3.2mm Anti-Reflective Tempered Glass |
| Junction Box | IP67 Rated |
| Connector Type | MC4 Compatible |
| Front Load (Wind/Snow) | 5400 Pa |
| Rear Load | 2400 Pa |
| Product Warranty | 10 Years |
| Performance Warranty | 25 Years Linear |
📄 Product Datasheet
Download Canadian Solar KuMax 380W Datasheet (PDF)
Best For
- Residential rooftop solar installations
- Commercial and C&I rooftop projects
- Installers seeking a bankable, financeable module
- Projects requiring proven long-term performance
Advanced Technology of the Canadian Solar KuMax 380W Panel
The Canadian Solar KuMax 380W panel integrates cutting-edge monocrystalline solar cell technology across 144 cells, delivering exceptional power output and reliability. Designed for both residential and commercial installations, this panel offers a superior conversion efficiency that maximizes sunlight absorption even in low-light conditions. Its robust design incorporates weather-resistant framing and anti-reflective coatings, ensuring long service life and consistent energy production. By choosing this panel, users benefit from optimized performance tailored for various environments, making it an excellent solution for sustainable energy generation.
Durability and Weather Resistance for Long-Term Use
This mono solar panel from Canadian Solar is engineered to withstand harsh weather conditions including heavy snow, strong winds, and high temperatures. The KuMax 380W panel features a sturdy aluminum frame and tempered glass that protect it from mechanical stress and environmental degradation. This durability ensures stable performance over decades, reducing maintenance costs and providing peace of mind for users. Whether installed in residential rooftops or large solar farms, this panel maintains efficiency and durability, solidifying its position as a reliable renewable energy product.
Installation Flexibility and Environmental Benefits
The Canadian Solar KuMax 380W panel is designed for ease of installation, accommodating various mounting systems and orientations. Its relatively lightweight and standard dimensions allow for quick integration into new or existing solar arrays. Additionally, this panel contributes significantly to reducing carbon footprints by generating clean, renewable energy. Customers choosing this product support environmental sustainability while achieving cost savings on energy bills. The combination of flexible installation options and strong environmental credentials makes the KuMax 380W panel a smart investment for eco-conscious consumers and businesses alike.
