Canadian Solar 610W TOPBiHiKu6 N-Type Bifacial All Black Solar Panel CS6.2-66TB-610HR

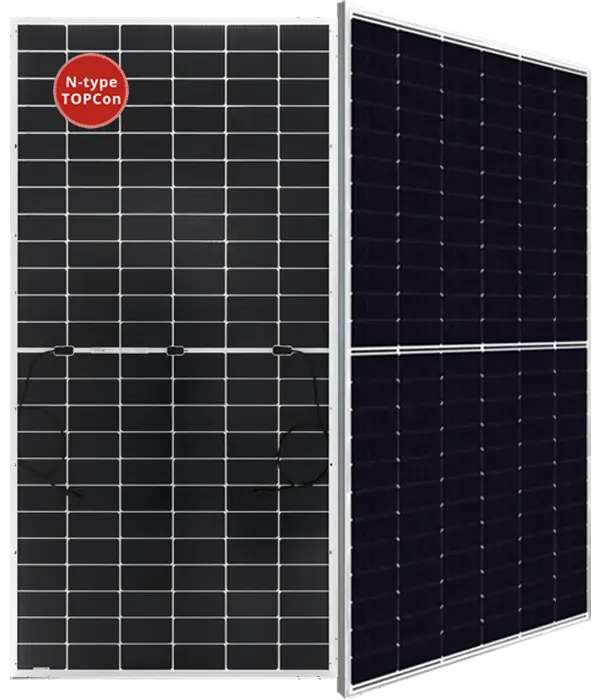

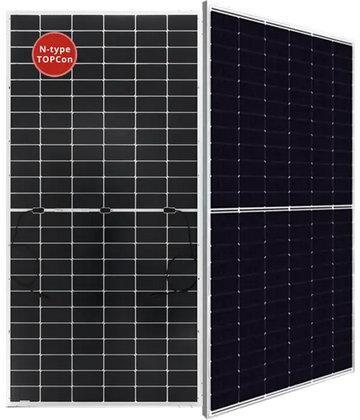

Canadian Solar 610W TOPBiHiKu6 N-Type Bifacial All Black Solar Panel
Model: CS6.2-66TB-610HR | Brand: Canadian Solar | Color: All Black (Black Frame, Clear Glass with Partial Black Grid)
The Canadian Solar TOPBiHiKu6 Black is an elegant dual-glass N-type bifacial TOPCon solar module delivering up to 630W of power. Featuring a sleek black frame and clear glass with partial black grid design, it is ideal for rooftop and other premium installations.
Key Features
- N-Type TOPCon bifacial technology for maximum energy yield
- Module power up to 630W with bifacial gain
- 12-year enhanced product warranty on materials and workmanship
- 30-year linear power performance warranty
- Excellent anti-LeTID & anti-PID performance
- Low power degradation: 1st year ≤1%, subsequent years ≤0.4%/year
- Heavy snow load up to 6000 Pa, wind load up to 5400 Pa
- Tested up to ice ball of 35mm diameter per IEC 61215
- IP68 junction box with 3 bypass diodes
- UL 61730 certified
Electrical Specifications (STC)
| Parameter | Value |
|---|---|
| Nominal Max. Power (Pmax) | 610W |
| Optimum Operating Voltage (Vmp) | 42.6V |
| Optimum Operating Current (Imp) | 14.34A |
| Open Circuit Voltage (Voc) | 49.3V |
| Short Circuit Current (Isc) | 15.43A |
| Module Efficiency | 22.6% |
| Power Tolerance | 0~+10W |
| Power Bifaciality | 80% |
Mechanical Specifications
| Parameter | Value |
|---|---|
| Cell Type | TOPCon cells |
| Cell Arrangement | 132 [2x(11x6)] |
| Dimensions | 2382×1134×40mm (93.8×44.6×1.57 in) |
| Weight | 33.4 kg (73.6 lbs) |
| Front Glass | 2.0mm heat strengthened glass with anti-reflective coating |
| Back Glass | 2.0mm heat strengthened glass |
| Frame | Anodized aluminium alloy (Black) |
| Connector | T6 or MC4-EVO2A |
| Max. System Voltage | 1500V (IEC/UL) |
| Max. Series Fuse Rating | 35A |
| Operating Temperature | -40°C ~ +85°C |
| Per Pallet | 27 pieces |
Temperature Characteristics
| Parameter | Value |
|---|---|
| Temperature Coefficient (Pmax) | -0.29%/°C |
| Temperature Coefficient (Voc) | -0.25%/°C |
| Temperature Coefficient (Isc) | +0.045%/°C |
| NMOT | 41±3°C |
Warranty
- Product Warranty: 12 years on materials and workmanship
- Power Warranty: 30-year linear power performance warranty
- 1st year degradation ≤1%, subsequent years ≤0.4%/year
Certifications
UL 61730 | ISO 9001:2015 | ISO 14001:2015 | ISO 45001:2018 | IEC 62941:2019
Datasheet: Download Official Datasheet (PDF)
