Canadian Solar TOPHiKu6 CS6.2-48TM-440H 440W N-Type TOPCon All-Black Solar Panel

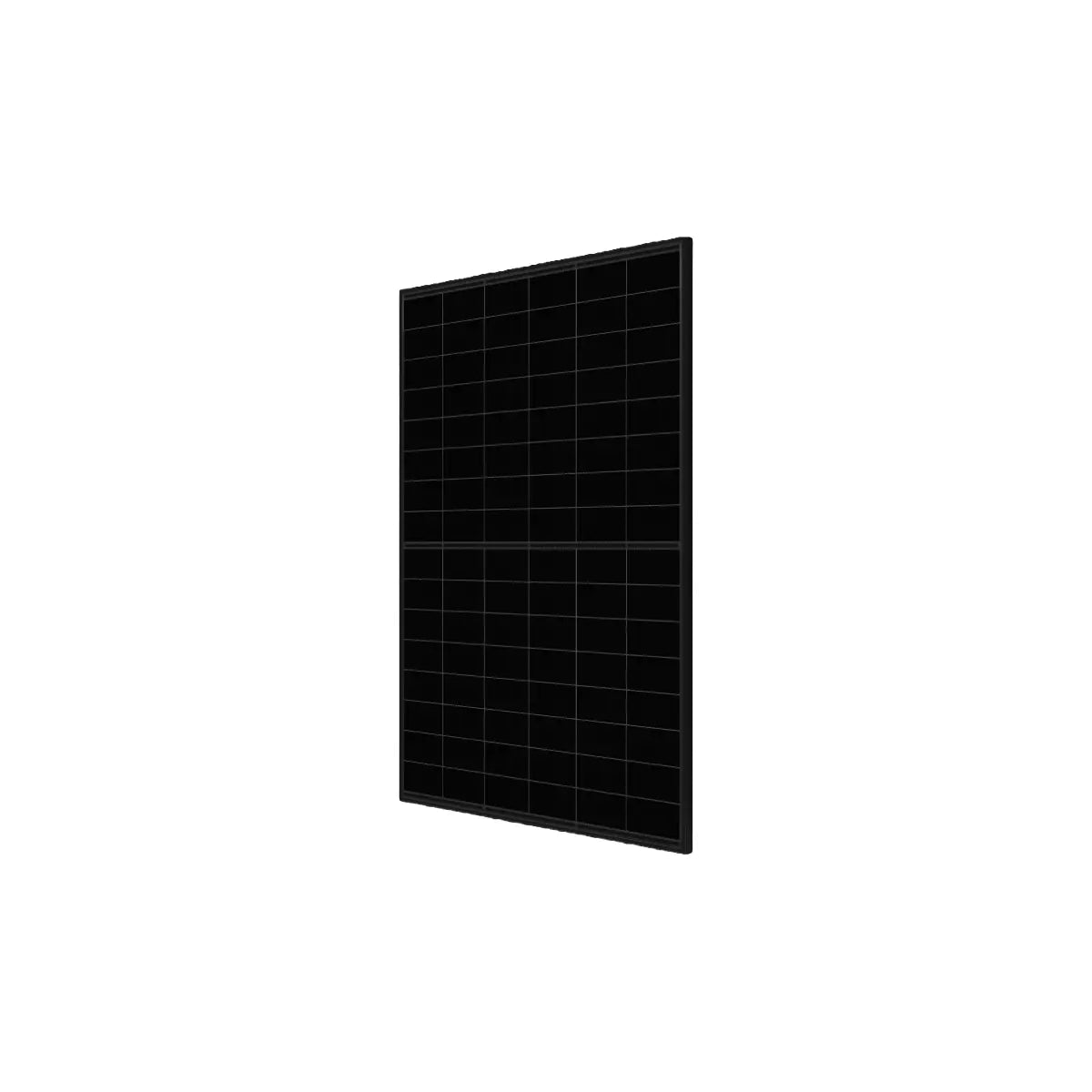

Canadian Solar TOPHiKu6 CS6.2-48TM-440H — 440W N-Type TOPCon All-Black Solar Panel
The Canadian Solar TOPHiKu6 CS6.2-48TM-440H is a premium 440W N-Type TOPCon all-black solar module designed for high efficiency, low degradation, and reliable performance in hot climates. Built with advanced N-type TOPCon cell technology, this monocrystalline solar panel is an excellent choice for residential rooftop installations where both aesthetics and long-term energy production matter.
Key Features
- N-Type TOPCon cell technology for superior efficiency
- 96 TOPCon cells [2×(8×6)] — All-Black design (BLK/BLK)
- 440W power output with 22.0% module efficiency
- Excellent anti-LeTID & anti-PID performance
- Low power degradation, high energy yield
- Lower temperature coefficient (Pmax): -0.29%/°C
- Heavy snow load up to 8100 Pa, wind load up to 5600 Pa
- Tested up to ice ball of 45mm diameter (IEC 61215)
- 1500V DC maximum system voltage
- 30-Year Linear Power Performance Warranty
Electrical Specifications (STC)
| Parameter | Value |
|---|---|
| Rated Maximum Power (Pmax) | 440W |
| Optimal Operating Voltage (Vmp) | 30.2V |
| Optimal Operating Current (Imp) | 14.58A |
| Open Circuit Voltage (Voc) | 35.4V |
| Short Circuit Current (Isc) | 15.88A |
| Module Efficiency | 22.0% |
| Power Tolerance | 0~+10W |
| Max System Voltage | 1500V DC (IEC/UL) |
| Max Series Fuse Rating | 30A |
| Operating Temperature | -40°C ~ +85°C |
Temperature Characteristics
| Parameter | Value |
|---|---|
| Temperature Coefficient (Pmax) | -0.29%/°C |
| Temperature Coefficient (Voc) | -0.25%/°C |
| Temperature Coefficient (Isc) | 0.045%/°C |
| Nominal Module Operating Temperature (NMOT) | 42±3°C |
Mechanical Specifications
| Parameter | Value |
|---|---|
| Cell Type | N-Type TOPCon |
| Cell Arrangement | 96 [2×(8×6)] |
| Dimensions | 1762×1134×35mm (69.4×44.6×1.38 in) |
| Weight | 21.8 kg (48.1 lbs) |
| Front Glass | 3.2mm tempered glass with anti-reflective coating |
| Frame | Anodized aluminium alloy (Black) |
| J-Box | IP68, 3 bypass diodes |
| Cable | 4mm² (IEC) / 12AWG (UL) |
| Connector | MC4 |
| Per Pallet | 31 pieces |
Certifications
IEC 61215 | IEC 61730 | UL 61730 | IEC 61701 | IEC 62716 | ISO 9001:2015 | ISO 14001:2015 | ISO 45001:2018 | IEC 62941:2019
Warranty
- Industry Leading Product Warranty on Materials and Workmanship
- 30-Year Linear Power Performance Warranty
- 1st year power degradation no more than 1%
- Subsequent annual power degradation no more than 0.4%
Frequently Asked Questions
Is this panel suitable for residential rooftop installations?
Yes. Its all-black design, high efficiency, and durable construction make it well suited for residential rooftop solar projects.
What makes TOPCon technology beneficial?
N-Type TOPCon technology supports excellent efficiency, low degradation, and strong performance in high-temperature conditions.
Does the panel come with a warranty?
Yes. It includes an industry-leading product warranty and a 30-year linear power performance warranty.
Datasheet
