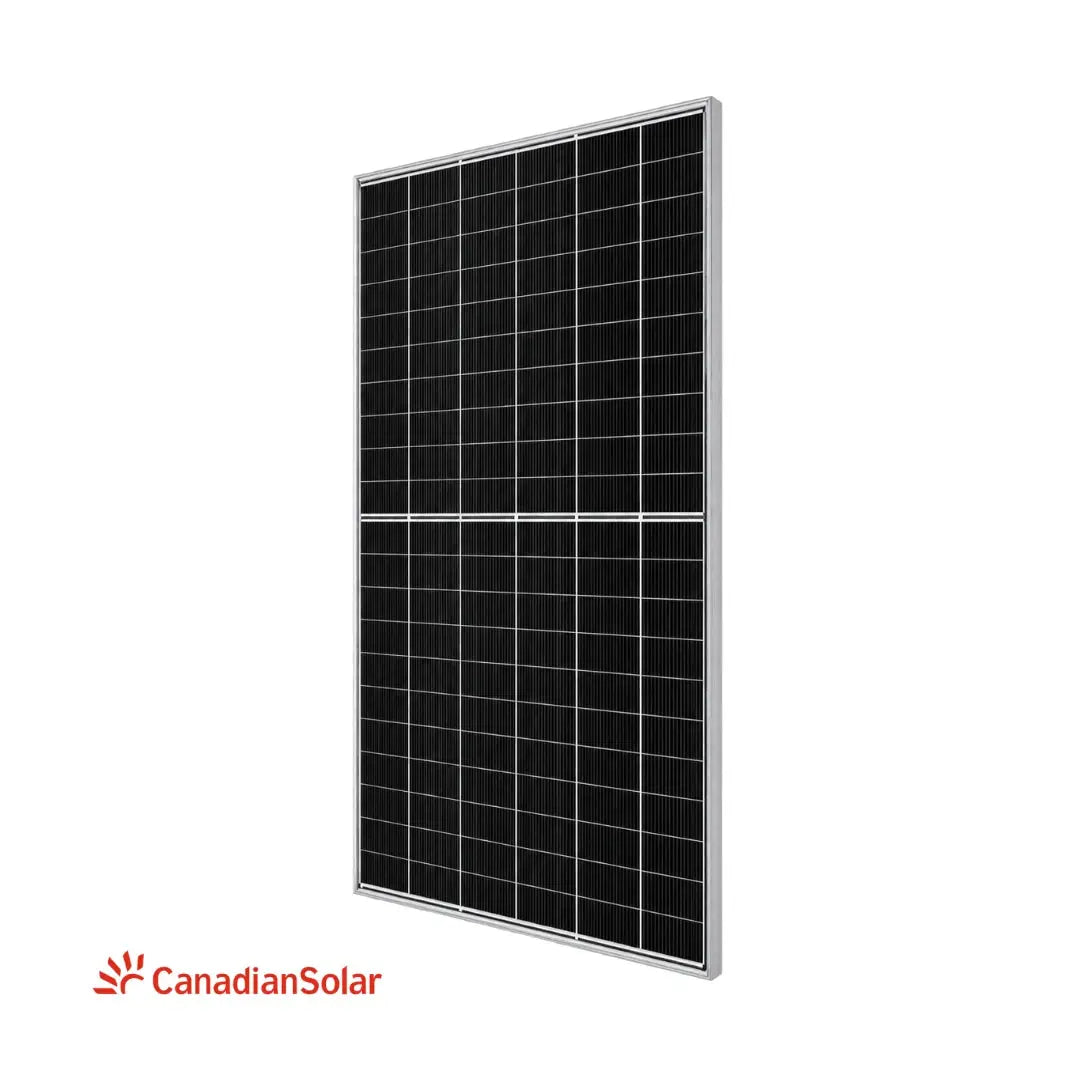

Canadian Solar 695W TOPCon Solar Panel | CS7N-695TB-AG
-
Estimated Delivery:Sep 19 - Sep 23
-
Free Shipping & Returns: On all orders under $50
Canadian Solar 695W TOPCon Solar Panel | CS7N-695TB-AG
Canadian Solar 695W TOPCon Solar Panel | CS7N-695TB-AG
Canadian Solar's N-type TOPCon 695W Bifacial Panel is engineered for utility-scale performance, delivering exceptional efficiency, durability, and energy yield. Featuring cutting-edge N-type Tunnel Oxide Passivated Contact (TOPCon) cell technology, this module offers industry-leading bifacial gains and superior power output in all environmental conditions. Unlock the future of solar with Canadian Solar's most advanced module yet—combining power, reliability, and sustainability.
Key Features
- Higher Energy Yield: 2% higher energy generation and about 2.3% lower LCOE than PERC
- Enhanced Reliability: Minimize cell micro-crack impacts to module and snow loads up to 5400Pa
- Long Lasting Production: 1st year power degradation no more than 1% and 0.4% subsequent annual power degradation
- Bifacial Design: Glass-glass construction captures sunlight from both sides, increasing total energy yield by up to 20% with optimal ground reflectivity
- FEOC Compliant
Electrical Specifications (STC)
| Nominal Max. Power (Pmax) | 695W |
| Module Efficiency | 22.4% |
| Opt. Operating Voltage (Vmp) | 39.8V |
| Opt. Operating Current (Imp) | 17.47A |
| Open Circuit Voltage (VOC) | 47.7V |
| Short Circuit Current (ISC) | 18.44A |
| Bifacial Gain (5%) | 730W |
| Bifacial Gain (10%) | 765W |
| Bifacial Gain (20%) | 834W |
Mechanical Specifications
| Cell Type | N-Type TOPCon |
| Cell Arrangement | 132 cells [2x(11x6)] |
| Panel Type | Bifacial |
| Dimensions | 2384 × 1303 × 35mm (93.9 × 51.3 × 1.38 in) |
| Weight | 37.9 kg (83.6 lbs) |
| Front Glass | 2.0mm heat strengthened glass with anti-reflective coating |
| Back Glass | 2.0mm heat strengthened glass |
| Frame | Anodized aluminium alloy |
| Junction Box | IP68, 3 bypass diodes |
| Cable | 4.0mm² (IEC), 12AWG (UL) |
| Connector | T6 or MC4-EVO2A |
| Per Pallet | 31 pieces |
| Per 53' Truck | 496 pieces |
Warranty
- 12-Year Product Warranty
- 1st year power degradation: no more than 1%
- Subsequent annual power degradation: no more than 0.4%
Datasheet
