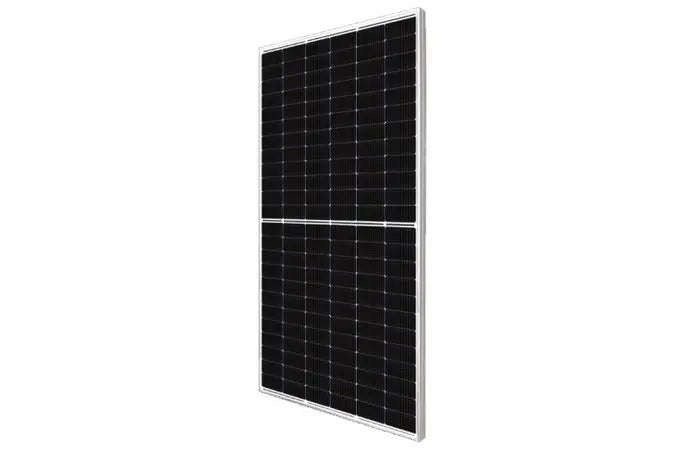

Canadian Solar 545W 144 Cells Bifacial Solar Panel

Detailed Overview of Canadian Solar 545W Solar Panel

The Canadian Solar 545W Bifacial Solar Panel is engineered for superior performance and long-term reliability. Featuring 144 monocrystalline PERC half-cut cells, this panel efficiently captures sunlight from both sides — front and rear — maximizing total energy output, especially in reflective environments. Designed for utility-scale and commercial solar systems, it offers high module efficiency, robust mechanical strength, and enhanced durability.

Key Features

• Model: CSI-545W

• Power Output: 545W

• Cell Type: 144 Monocrystalline PERC Half-Cut Cells

• Bifacial Gain: Up to 30% additional energy from rear side reflection

• Module Efficiency: Up to 21.3%

• Front Glass: 3.2mm tempered glass with high transmittance

• Frame: Anodized aluminum alloy for enhanced corrosion resistance

• Connector Type: MC4 compatible

• Maximum System Voltage: 1500V DC (IEC/UL)

• Operating Temperature: -40°C to +85°C

• Dimensions: 2256 × 1133 × 30 mm

• Weight: 32.3 kg

Applications

• Large-scale solar farms

• Commercial rooftop systems

• Ground-mounted and bifacial tracking systems

Certifications

• IEC 61215 / IEC 61730 / UL 61730

• ISO 9001, ISO 14001, ISO 45001 Certified Manufacturing

Document: Specification Sheet

High Efficiency and Innovative Design

The Canadian Solar 545W solar panel features 144 bifacial cells, delivering high power output and superior energy generation. This panel’s advanced bifacial design captures sunlight on both the front and back sides, increasing efficiency and total energy yield. Ideal for residential and commercial solar installations, the Canadian Solar 545W solar panel incorporates cutting-edge technology to maximize solar capture even in low-light conditions, making it a reliable solution for long-term energy needs.

Durability and Weather Resistance

Built with premium materials, the Canadian Solar 545W solar panel ensures robust durability against harsh environmental factors. Its high-quality tempered glass and corrosion-resistant frame offer protection against extreme weather events like hail, wind, and snow. The panel’s certifications for mechanical load and weather resistance guarantee lasting performance, making it suitable for diverse climates and challenging outdoor conditions while maintaining optimal energy output throughout its lifespan.

Easy Installation and Versatile Applications

The 545W solar panel from Canadian Solar is designed for straightforward installation, compatible with standard mounting systems to reduce setup time and costs. Its large 144-cell layout balances power and size, fitting seamlessly into various solar array designs. Perfect for rooftop systems, ground-mounted installations, and solar farms, this panel supports scalable solar projects, providing flexibility and efficiency for homeowners and businesses aiming to reduce their carbon footprint with renewable energy.
