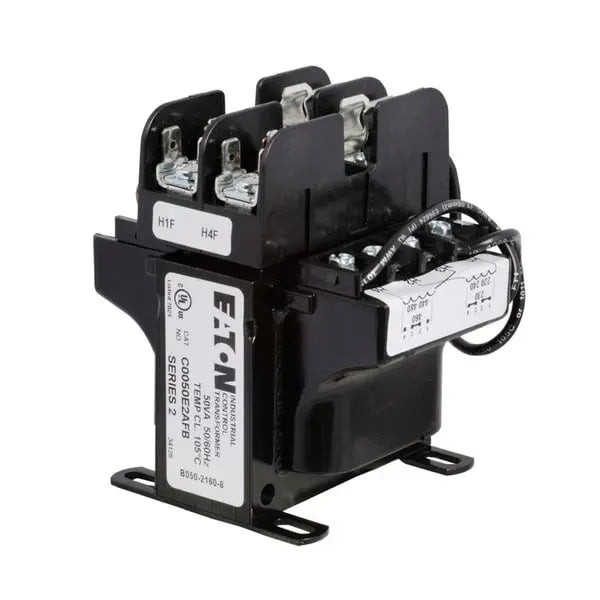

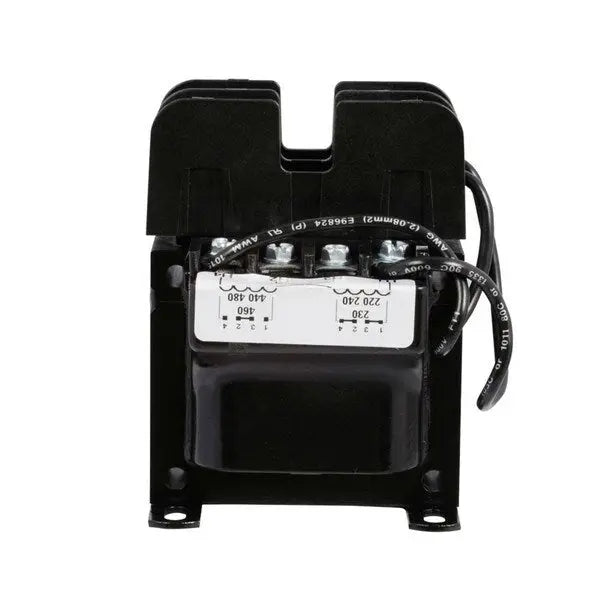

C0050E2AFB - Control Transformer

The Control Transformer is designed for reliable voltage conversion in industrial and commercial control systems. It offers multiple primary voltage inputs (240 x 480V, 230 x 460V, 220 x 440V) and secondary outputs (120/115/110V). With a 50 VA rating and a copper winding construction, it ensures efficient and durable performance. This single-phase transformer operates at 50/60 Hz and is built to withstand temperatures up to 55°C.

Key Features:

• Product Type: Control Transformer
• Primary Voltage: 240 x 480V, 230 x 460V, 220 x 440V
• Secondary Voltage: 120/115/110V
• Power Rating: 50 VA
• Frequency: 50/60 Hz
• Phase: Single-Phase
• Winding Material: Copper
• Temperature Rating: 55°C
• Dimensions: 2.992" Length x 2.992" Width x 3.937" Height

This control transformer is ideal for applications requiring reliable and compact voltage conversion.

Documents:

Specifications and datasheets
Eaton Specification Sheet - C0050E2AFB
