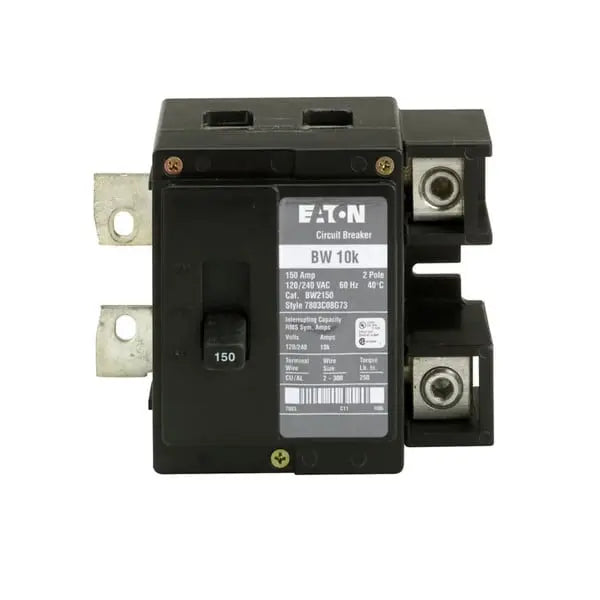

BW2150 - Circuit Breaker

The Eaton 150A 2-Pole Circuit Breaker is engineered to provide reliable overcurrent protection in residential and light commercial electrical systems. This breaker features a plug-on terminal design, allowing for easy installation into compatible load centers. It supports wire sizes ranging from #2 AWG to 300 kcmil, accommodating both copper and aluminum conductors. With an interrupting rating of 10 kAIC, it ensures safety during fault conditions.

Key Features:

• 150 A current rating for effective circuit protection
• 2-pole configuration suitable for 120/240 V AC, 208Y/120 V AC, and 240 V AC systems
• Plug-on terminal design for straightforward installation
• Compatible with wire sizes from #2 AWG to 300 kcmil (copper or aluminum)
• 10 kAIC interrupting rating for enhanced safety
• UL listed for quality and compliance

This circuit breaker offers dependable performance and is an essential component for maintaining electrical safety in various installations.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Specifications and datasheets
Eaton Specification Sheet - BW2150
