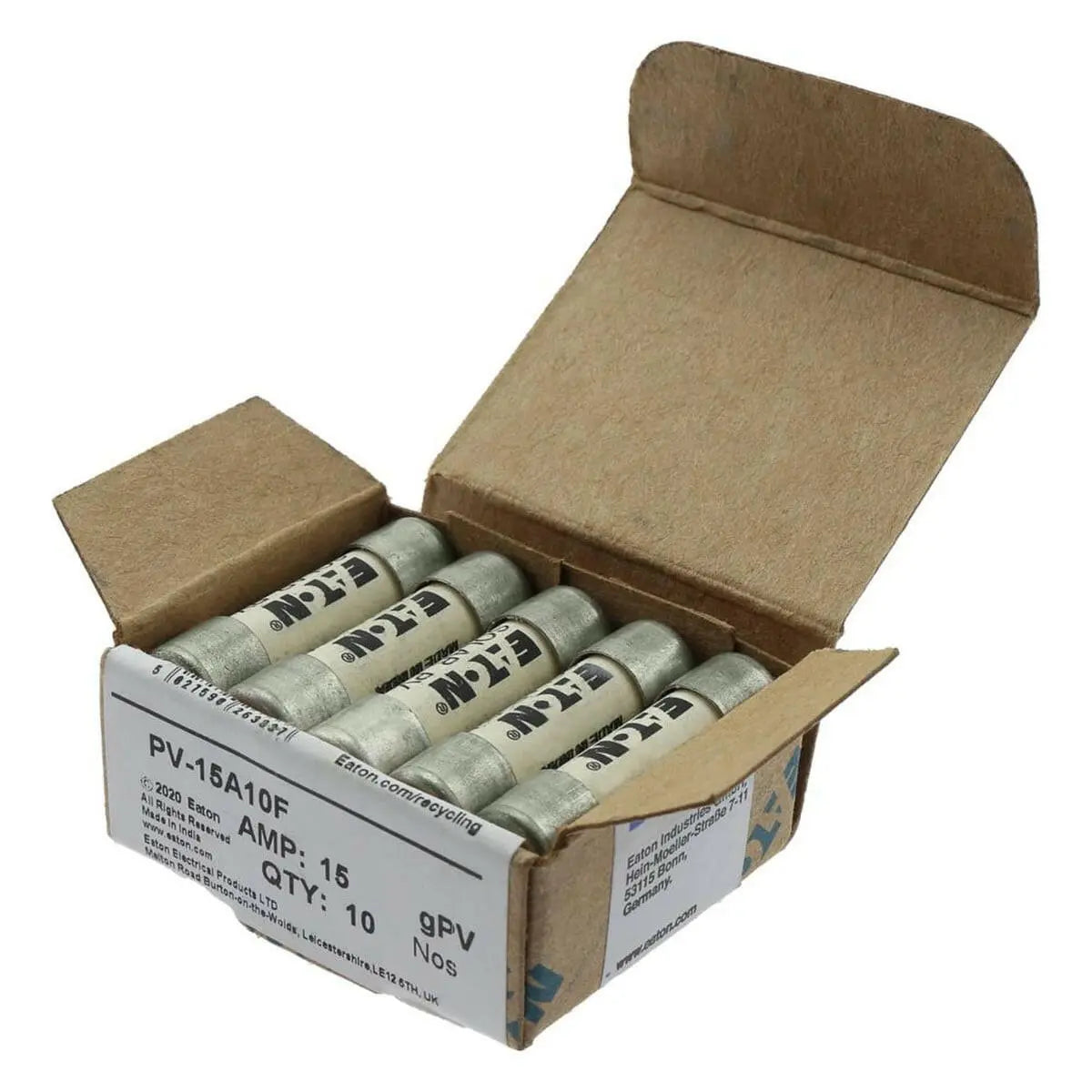

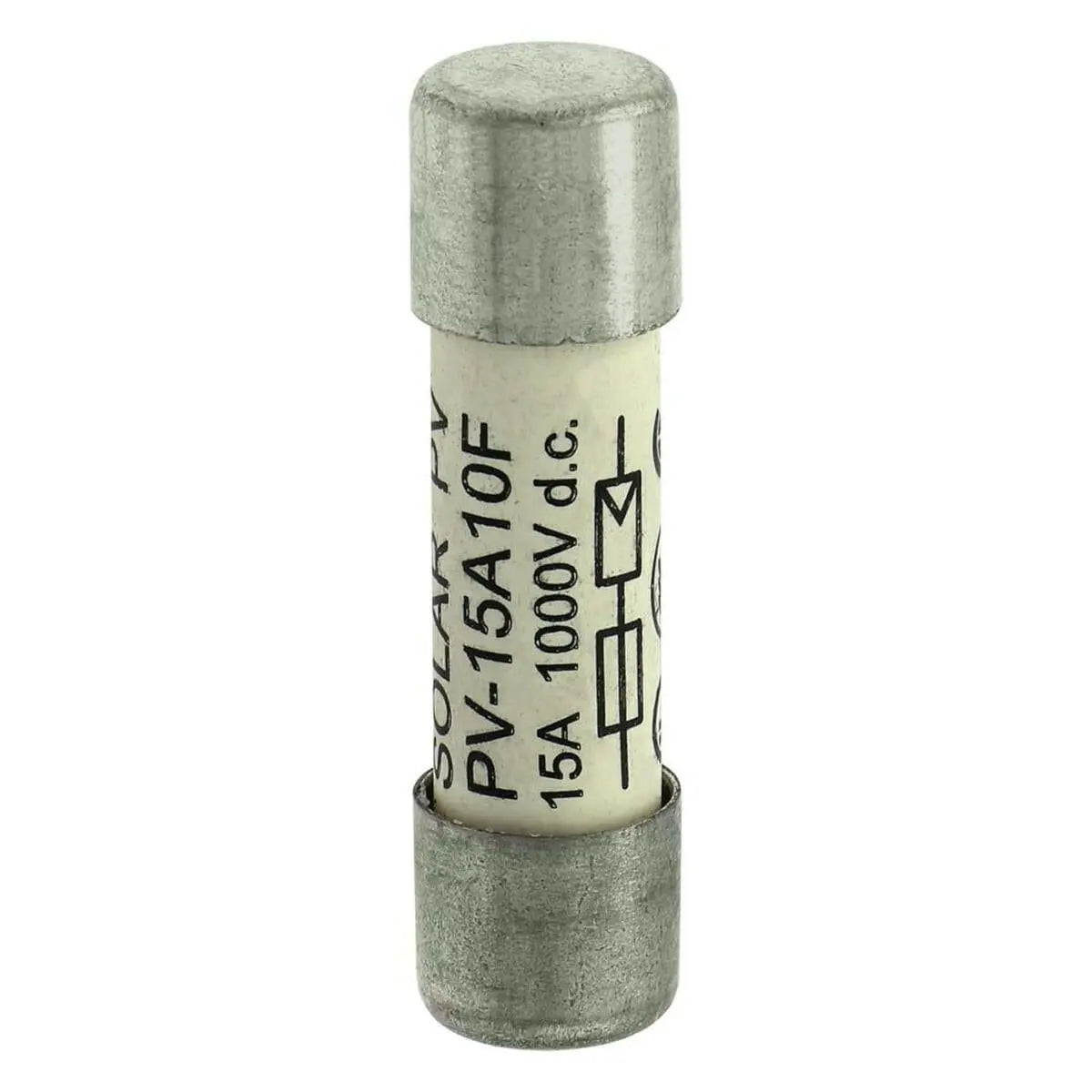

Bussmann PV-15A10F Midget Fuse 15A 1000VDC

A range 10 x 38 mm, 1000 VDC PV fuses for the protection and isolation of photovoltaic strings. The fuses are specifically designed for use in PV systems with extreme ambient temperature, high cycling and low fault current conditions (reverse current, multi-array fault) string arrays.

Features

• User Friendly - In-line crimp terminal version is easy to apply in wire harness construction. Low temperature rise performance for more precise sizing
• Efficient - Low watts loss performance for energy efficiency
• Safe - Meets UL and IEC photovoltaic standards for global acceptance


Specifications

• Type: Photovoltaic
• Series/Model: PV-F
• Voltage Rating: 1000 VDC
• Current Rating: 15 A
• Interrupt Rating: 50 kAIC
• Class: Class gPV/UL PV
• Visual Indication: Non-Indicating
• Speed: Fast Acting
• Body Style: Cylindrical
• Body Material: Ceramic
• Element: Single
• Diameter: 10 mm
• Length: 38 mm
• Watt Losses: 1.7 W
• Pre Arc (I2T): 22
• Standards: UL Listed, UL 2579, UL Listed 61010-1 File E185559, IEC Rated, CSA Certified, CCC Marked, RoHS Compliant, CE Marked
• Application: Combiner Boxes, Inverters, PV Wire Harnesses, Photovoltaic Strings


Documents

• Specification Sheet
• Catalog
