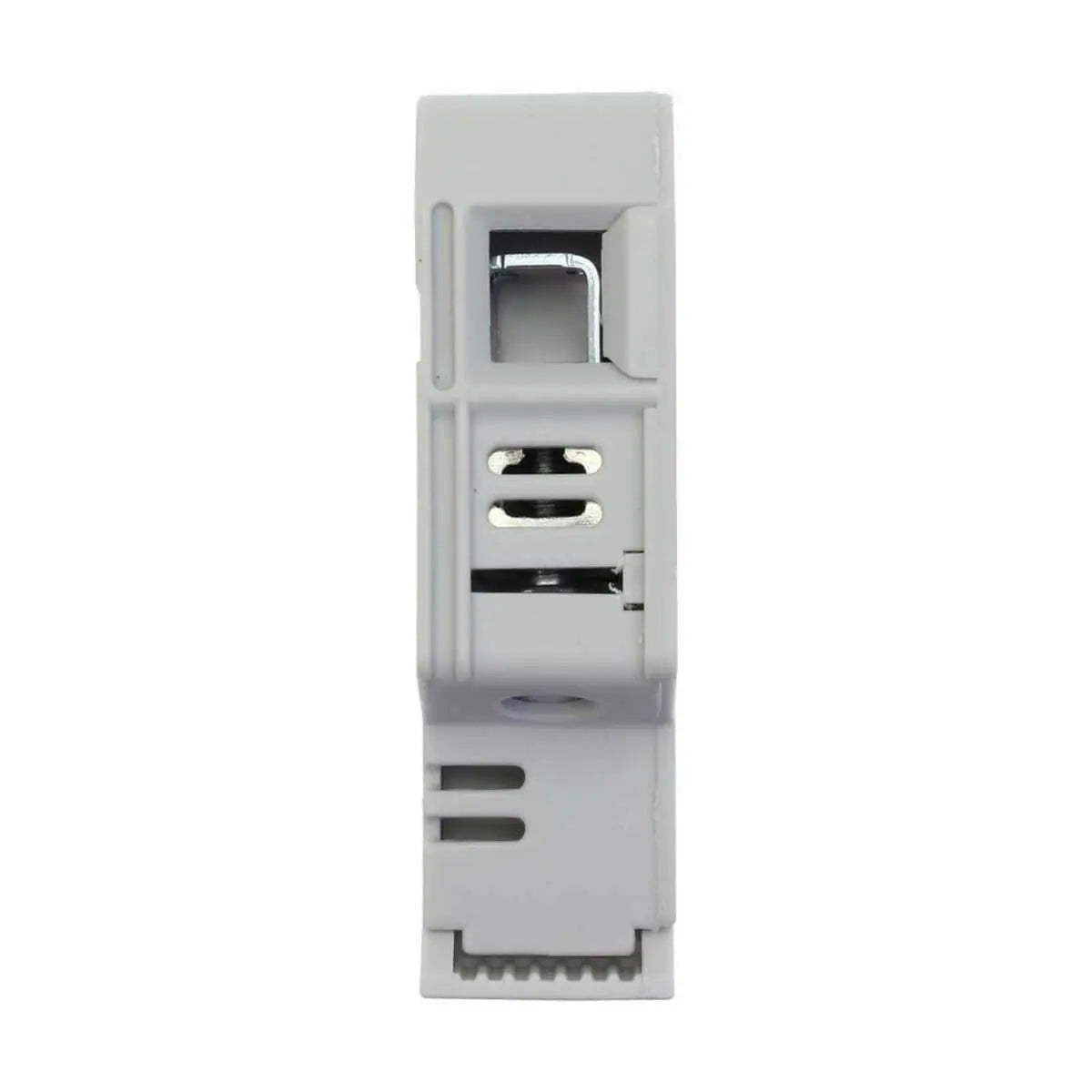

Bussmann CHPV1U 30A DIN Mount Fuse Holder

Direct Power & Water Corporation has built a reputation of producing heavy duty hardware for dealers, integrators and installers who require the best possible for their customers, including Standard and Custom battery enclosures. Standard enclosures are built for the Concorde, Deka (MK), and Surette batteries, although other batteries will fit within the same form factor. DPW makes custom enclosures for virtually any battery. All of their enclosures are manufactured from heavy materials that don't lose their shape after being loaded with batteries.

Features

• User Friendly - Easy color coding for use: yellow for PV, red for IEC, and black for UL applications
• Available remote PLC indication with the CH-PLC module
• Efficient - Agency ratings up to 1000Vdc for use with solar PV fuses. Rated for use with 75 or 90 deg C wire, fine stranded wire, spade terminals and with comb-bus bars
• Use any higher temperature rated wire with appropriate de-rating
• Safe - Finger-safe, high SCCR rated, Class CC and midget holders with indicator options. Also for Class J and IEC size fuses
• Complete range of UL Listed and high SCCR rated 1-phase and 3-phase finger-safe comb-bus bars and power feed lugs


Specifications

• Type: Photovoltaic
• Series/Model: CHPV
• Voltage Rating: 1000 VDC
• Current Rating: 30 A
• Fuse Block Design: Finger-Safe
• Visual Indication: Non-Indicating
• Wire Range: 18-4 AWG
• Mounting Type: DIN Rail
• Body Material: Thermoplastic
• Connector Type: Clamp/Spade Lug
• Number of Poles: 1
• Suitable For Use With: 1-1/2 in Length x 13/32 in Diameter Fuse
• Operating Temperature: -20 to 120 deg C
• Standards: CE, CSA Certified, UL Listed, RoHS Compliant
