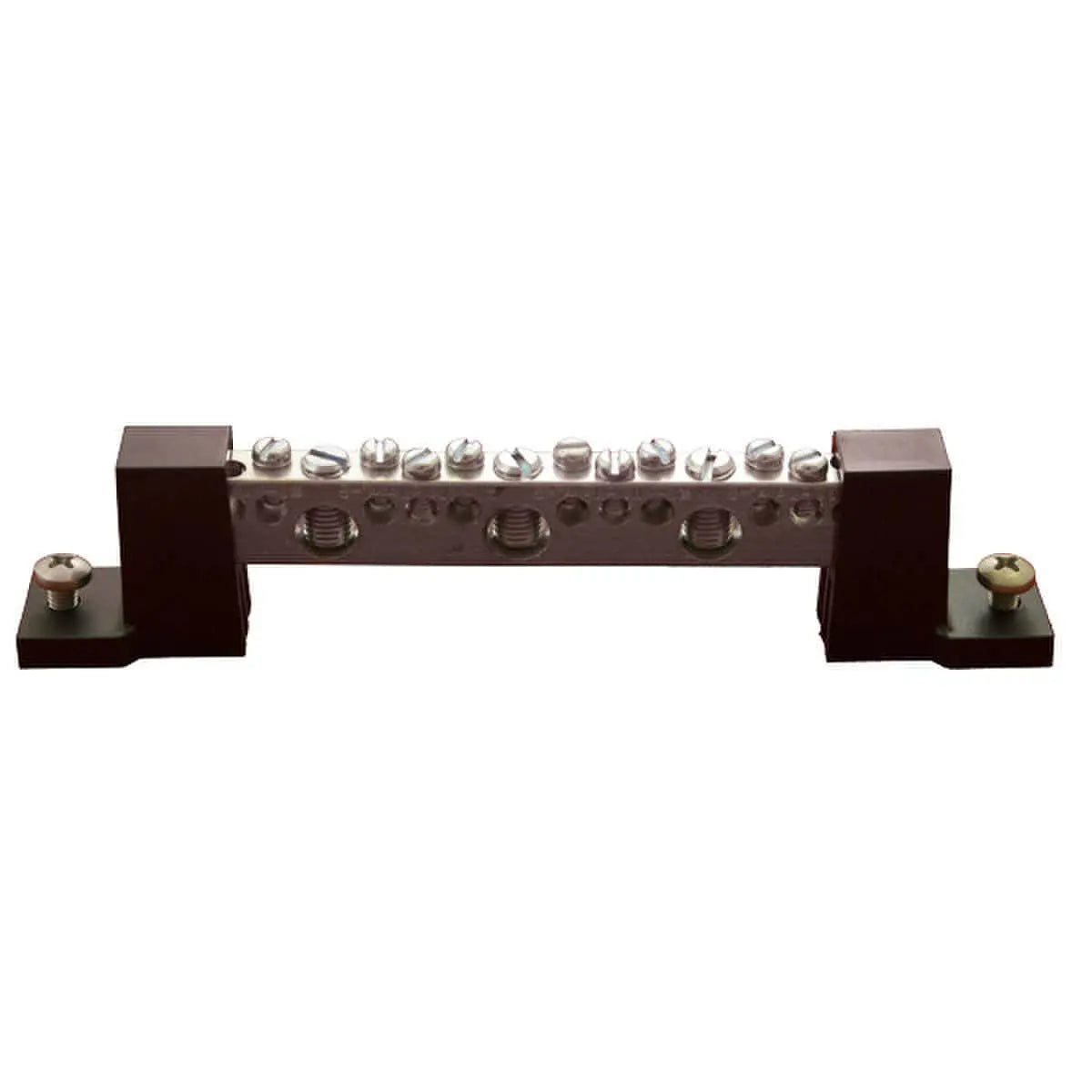

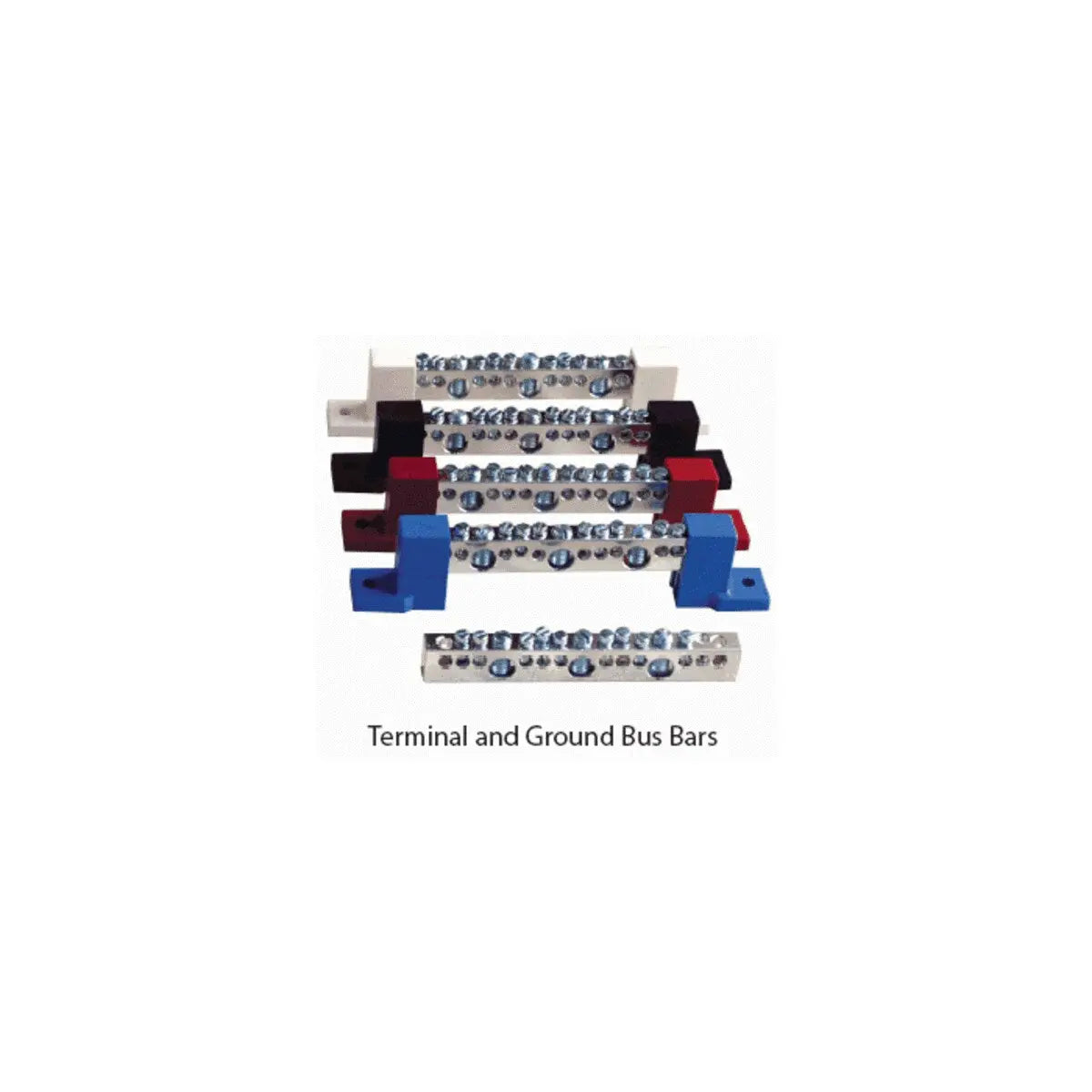

Bus Bar with Black Insulators & Mounting Screws.

Three #1/0 to 14 AWG and eight #6 to 14 AWG screw type compression terminals, mounting screws included. Rated at 180 A.

Features

• Safety - Used for adding more wire terminations or for isolating multiple positive/negative circuits
• Efficiency - TBBs rated for a maximum of 180 amps AC/DC. No ring lugs are required
• User friendly - All TBB models have three #1/0 to 14 AWG and eight #6 to 14 AWG screw type compression terminals. Available with black, white, red, blue and brown insulators


Specifications

• Dimensions: 4 in x 4 in x 4 in
• Wire Size: (3) #1/0 - 14 AWG
• Terminals: (8) #6-14 AWG Screw Type Compression
• Rated Current Rating: 180 A AC/DC
• Includes: Black Insulator, Mounting Screws
• Standards: UL Listed
• Weight: 0.25 lb


Documents

• Specification Sheet
