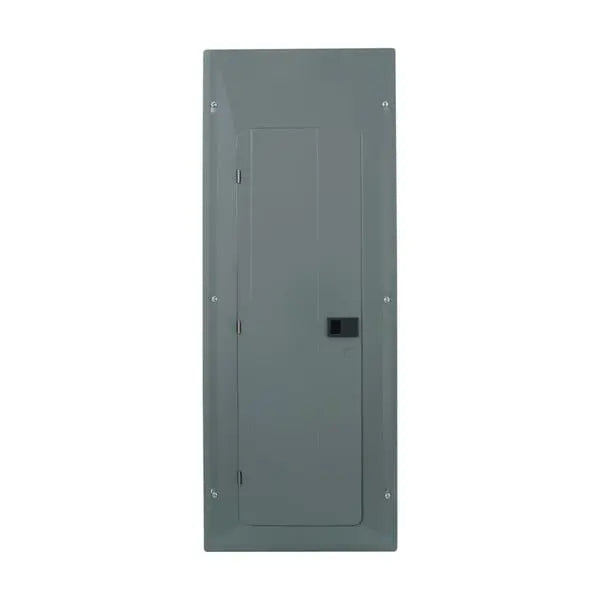

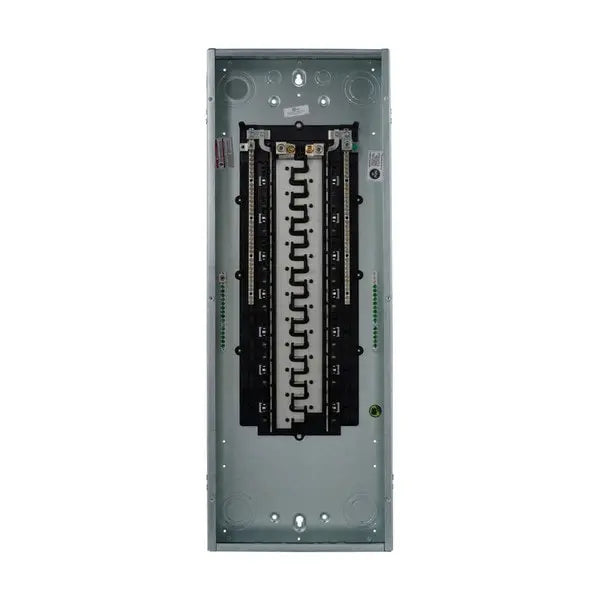

BRP42LC225G - Eaton Eaton BR Main Lug Loadcenter

The Eaton BR Main Lug Loadcenter is a reliable and versatile solution for residential and light commercial electrical distribution. Designed as a main lug only configuration, this loadcenter supports up to 225 A and offers 42 spaces capable of accommodating 84 single-pole circuits. It includes both a neutral and a ground bar, ensuring organized and code-compliant wiring. Constructed with copper bus material and a NEMA 1 gray enclosure, it is suitable for indoor surface or flush mounting. Rated at 10kAIC and designed for single-phase, 120V systems, it delivers safe and efficient power distribution.

Key Features:

• Loadcenter Type: Main Lug Only
• Amperage: 225 A
• Voltage: Single-phase, 120V
• Circuits/Spaces: 84 circuits / 42 spaces (single-pole)
• Bus Material: Copper
• Bars Included: A neutral and a ground bar
• Mounting: Surface or flush
• Enclosure Rating: NEMA 1 – indoor use
• Interrupt Rating: 10kAIC
• Color: Gray
• Series: BR

This loadcenter is an excellent choice for dependable power distribution, offering high capacity, flexibility, and ease of installation in residential and commercial environments.

Documents:

Specifications and datasheets
Eaton Specification Sheet - BRP42LC225G

Warranty guides
Eaton type BR circuit breaker limited warranty June 2024
