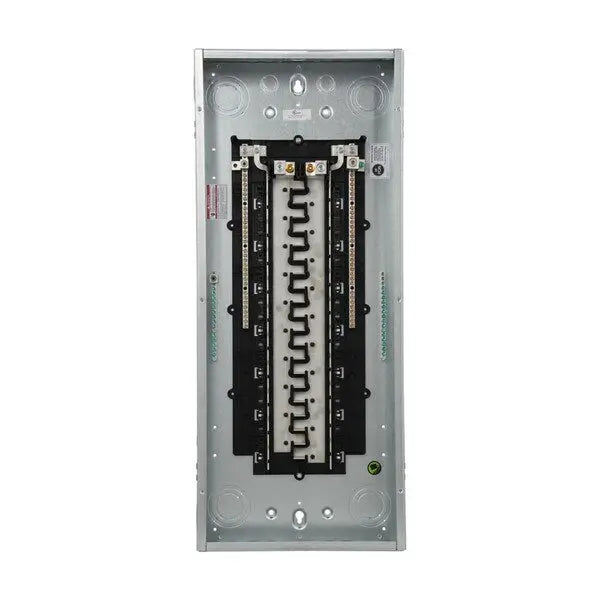

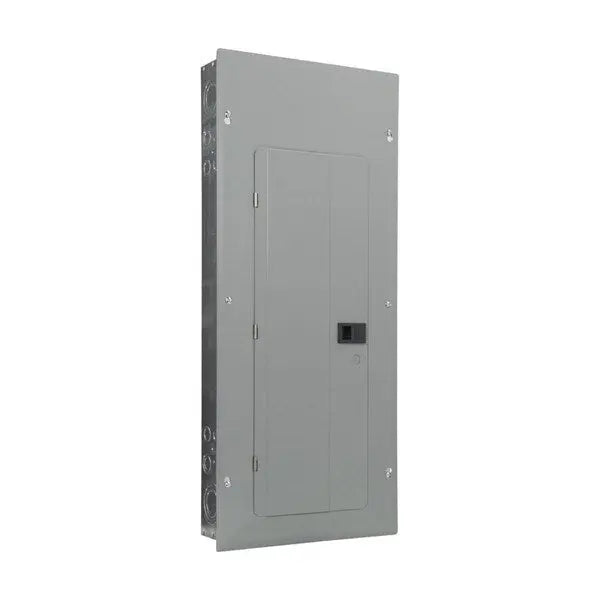

BRP40L200R - Eaton Eaton BR Main Lug Loadcenter

The Eaton BR Main Lug Loadcenter is a robust and versatile electrical panel designed for high-capacity residential and commercial applications. With a 200A rating, this main lug-only loadcenter is engineered for durability and safety, offering a metallic aluminum construction and a NEMA 3R rating for protection against the elements in outdoor or harsh environments. It features a 10 kAIC rating for high fault current handling. The loadcenter supports up to 80 circuits, providing ample space for future expansions. It is designed for single-phase, three-wire systems and accommodates Type BR 1-inch breakers for 120/240V systems, with a wire range of 1–300 kcmil.

Key Features:

• Product Type: Main Lug Loadcenter
• Rating: 200A
• Configuration: Main Lug Only
• Enclosure Rating: NEMA 3R (Outdoor Use)
• Material: Aluminum
• Breaker Type: BR 1-Inch Breakers
• Number of Circuits: 80
• Number of Spaces: 40
• Pole Configuration: Single-Pole
• Voltage Rating: 120/240V
• Current Interrupting Rating (Kaic): 10 kAIC
• Wire Range: 1–300 kcmil
• Phase: Single-Phase
• Enclosure: Metallic

This Eaton BR loadcenter is designed to provide reliable power distribution in demanding environments, offering flexibility, scalability, and superior protection for your electrical system.

Documents:

Specifications and datasheets
Eaton Specification Sheet - BRP40L200R
