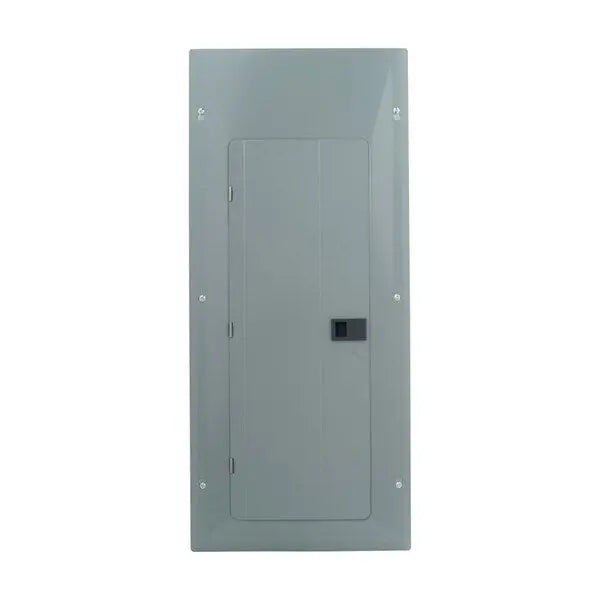

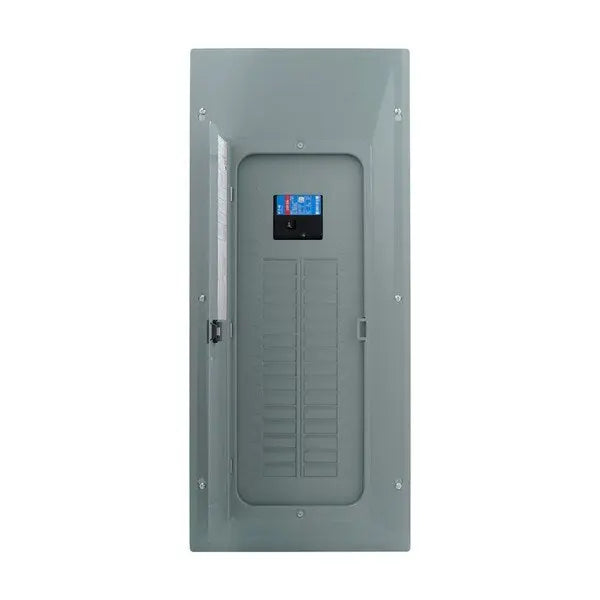

BRP30B200R - Eaton BR Main Breaker Loadcenter

The Eaton BR Main Breaker Loadcenter delivers powerful performance and versatile capacity for residential and light commercial electrical systems. This 200 Amp, Plug-On loadcenter is designed to support up to 60 circuits with 30 single-pole spaces, making it an excellent choice for larger installations or future expansions.

Built with a durable metallic enclosure and rated NEMA 3R for outdoor use, this loadcenter offers dependable protection in harsh environments. It comes complete with an aluminum bus, main breaker, and cover included—ensuring fast, easy installation and long-term reliability. The loadcenter supports Type BR 1-inch breakers and features a 10kAIC interrupting rating, offering robust fault current protection.

Ideal for three-wire, single-phase systems, this combination panel provides the flexibility needed for modern electrical demands, while maintaining code compliance and panel organization.

Key Features:

• 200A main breaker, supports 60 circuits / 30 single-pole spaces
• Plug-On design for quick, secure breaker installation
• NEMA 3R rated metallic enclosure for outdoor applications
• Aluminum bus with cover included
• 10kAIC interrupting capacity for high fault protection
• Compatible with Type BR 1-inch breakers
• Designed for three-wire, single-phase systems

Choose the Eaton BR Loadcenter for maximum capacity, durability, and ease of installation—engineered to meet today’s power distribution needs with confidence.

Documents:

Eaton Specification Sheet - BRP30B200R
