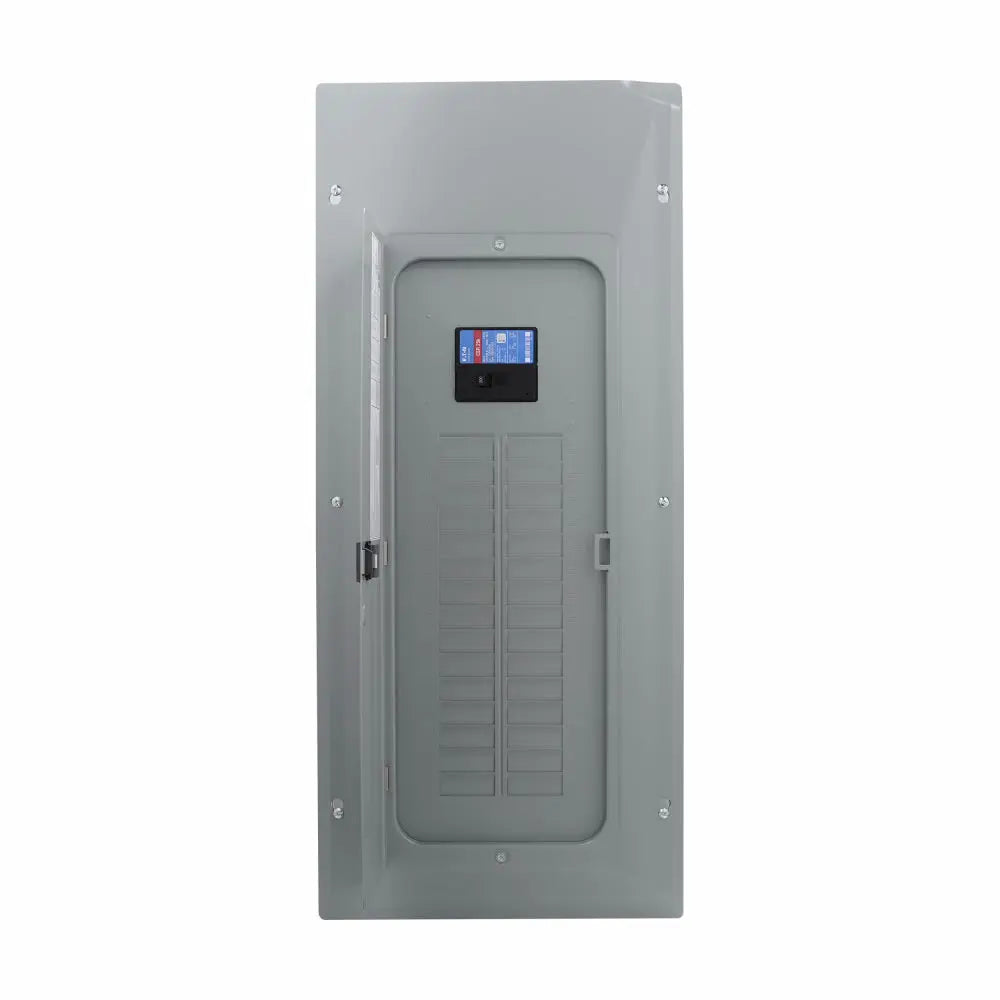

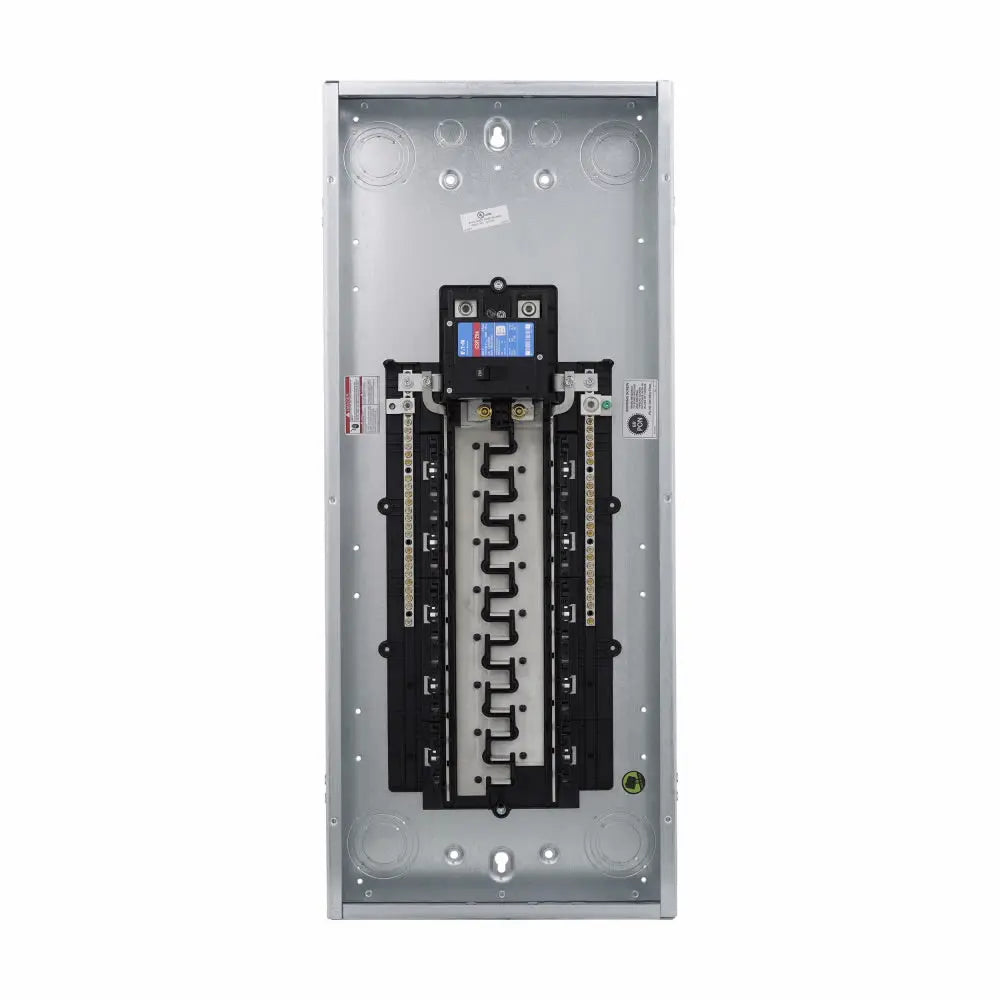

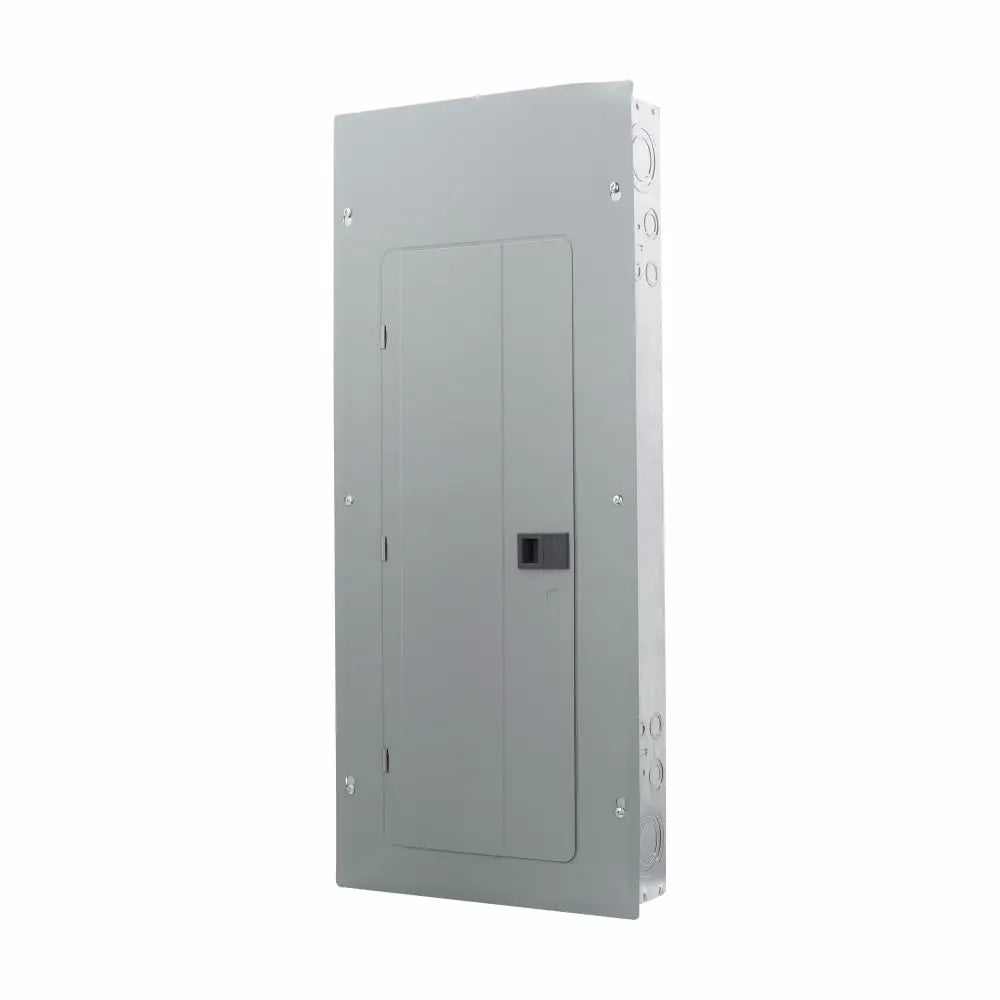

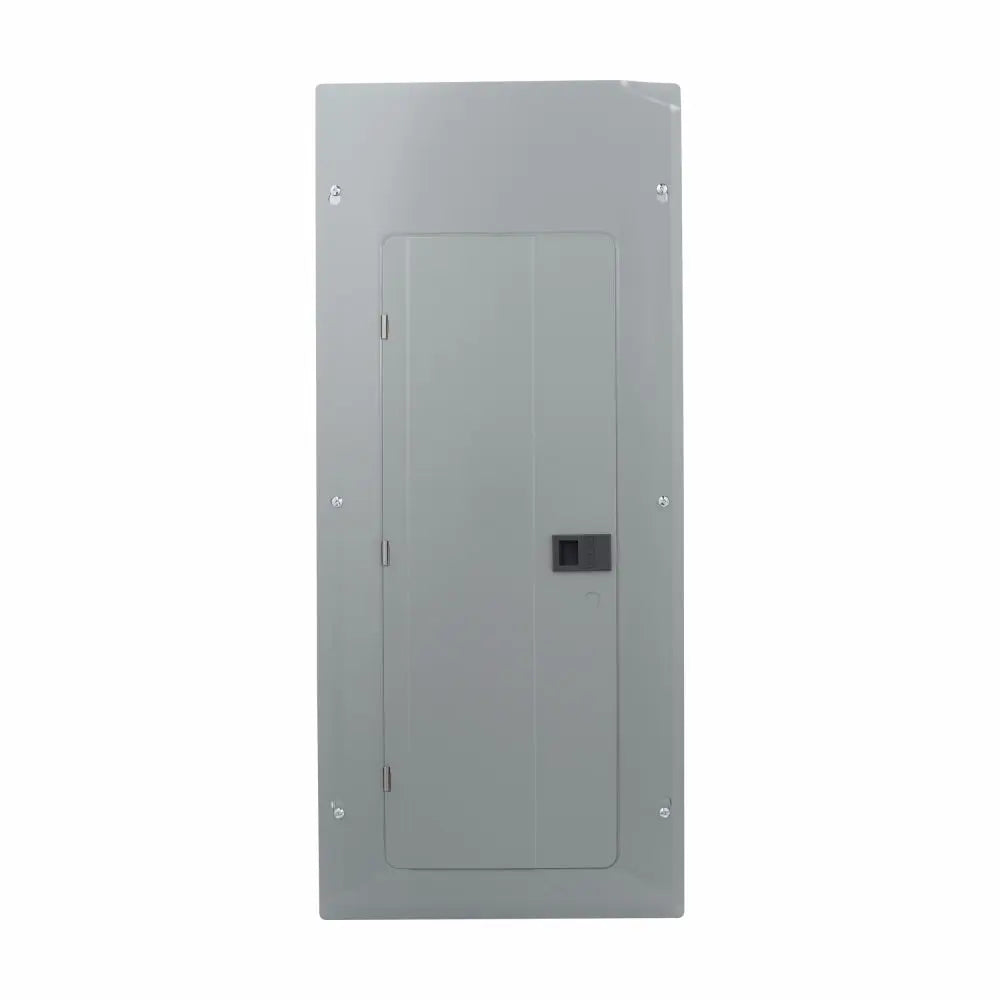

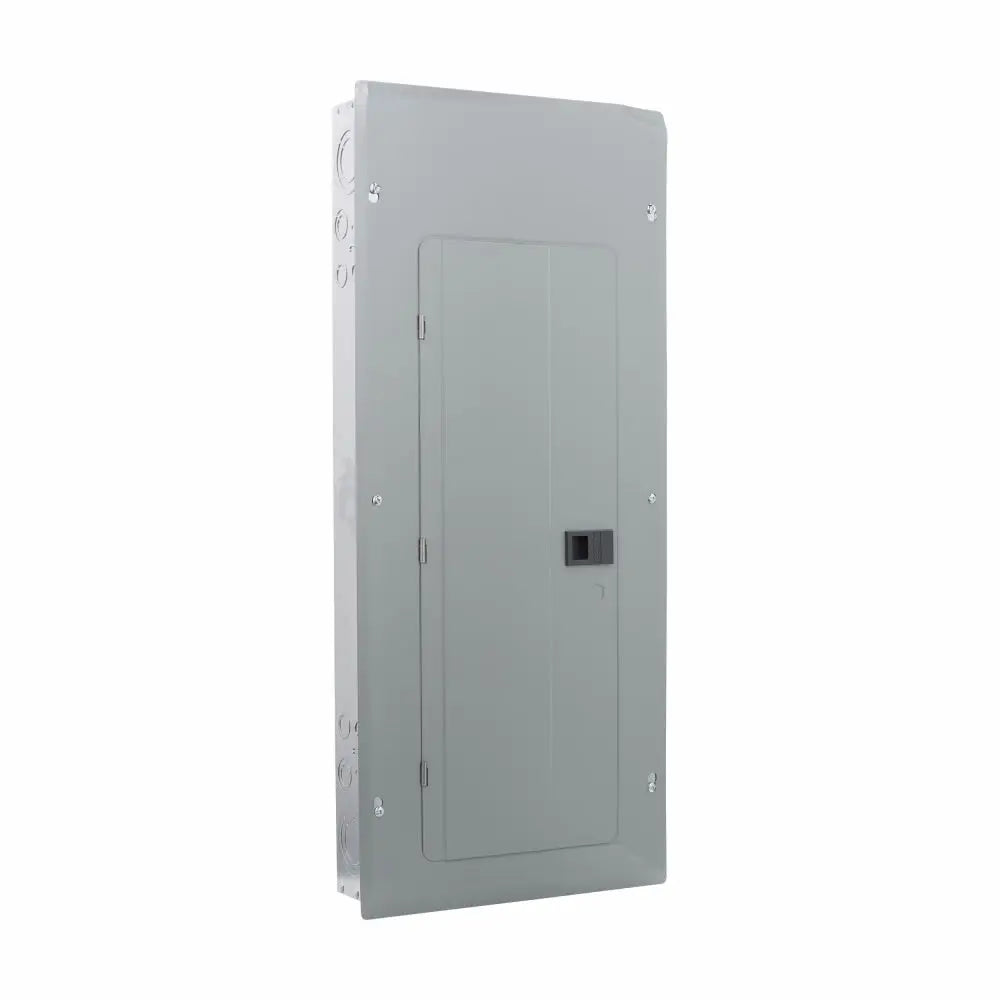

BRP30B150 - BR Pon Loadcntr 150A Main BRKR 30 Space

BR Pon Loadcntr 150A Main BRKR 30 Space
Eaton Plug-On Neutral Main Circuit Breaker Loadcenter, 150A, X6, Aluminum, Cover Included, Nema 1, Metallic, 25 Kaic, CSR2125, 60 Circuits, Single Pole, 30 Spaces, Two Hots, A Neutral, and A Ground, Single-Phase, Combination, Type BR 1-Inch Breakers

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

Key Features:

• Amperage rating: 150A
• Cover type: Cover included
• Interrupt rating: 25 kA
• Phase: Single-phase
• Voltage rating: 120/240V
• Configuration: Single-pole


Documents:

Specifications and datasheets
Eaton Specification Sheet - BRP30B150
