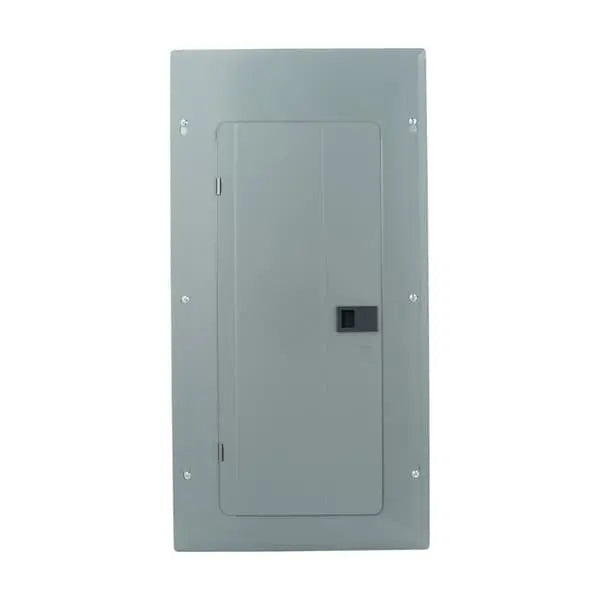

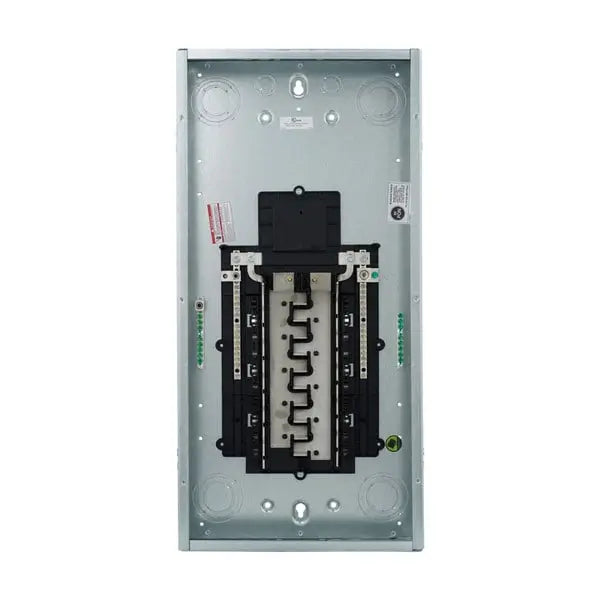

BRP20N200G - Eaton BR Convertible Loadcenter

The Eaton BR Convertible Loadcenter is a versatile and reliable power distribution solution designed for residential and light commercial applications. This loadcenter supports up to 200 amps and includes a factory-installed ground bar, neutral, and provision for two hot conductors. With a convertible main design and a NEMA 1 metallic enclosure, it offers installation flexibility for either main lug or main breaker configurations. Featuring 20 spaces for single-pole breakers and supporting up to 40 circuits, it’s engineered for use with Eaton BR and CSR breakers. A cover is included for a complete installation.

Key Features:

• Loadcenter Type: Convertible
• Series: BR
• Ampacity: 200 A
• Mounting Style: Combination
• Breaker Compatibility: BR and CSR
• Material: Aluminum Bus
• Enclosure Rating: NEMA 1 (Indoor Use)
• Enclosure Type: Metallic
• Interrupting Rating: 10 kAIC
• Number of Spaces: 20 (Single-Pole)
• Circuit Capacity: 40 Circuits
• Phases: Single-Phase
• Configuration: Two Hots, One Neutral, One Ground
• Accessories Included: Ground Bar and Cover
• Catalog Number: X5

The Eaton BR Convertible Loadcenter delivers safe, code-compliant power distribution with built-in flexibility, making it a dependable choice for modern electrical system installations.

Documents:

Specifications and datasheets
Eaton Specification Sheet - BRP20N200G

Warranty guides
Eaton type BR circuit breaker limited warranty June
