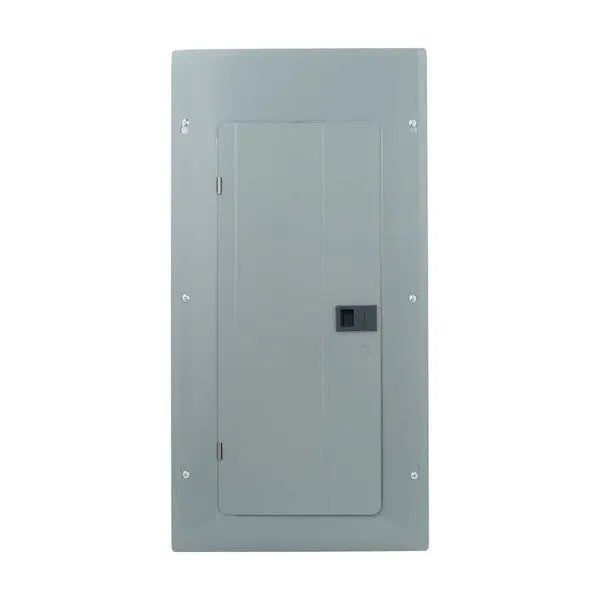

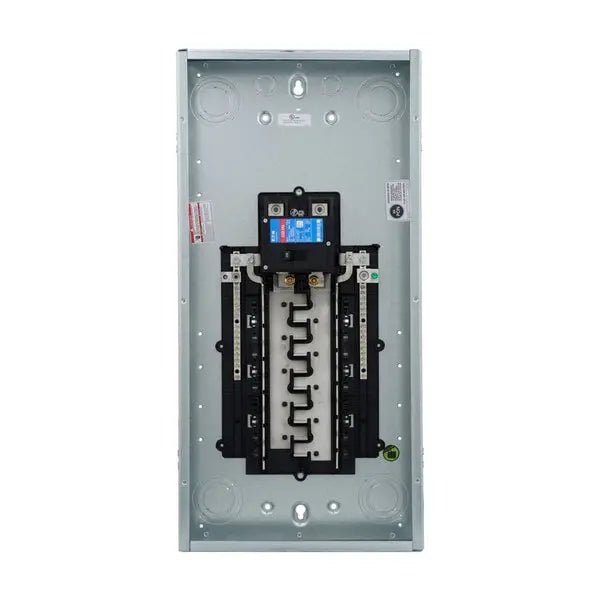

BRP20B200 - Plug-On Neutral Main Circuit Breaker Loadcenter
The Plug-On Neutral Main Circuit Breaker Loadcenter offers a robust indoor power distribution solution with a 200A rating and a durable aluminum bus. Enclosed in a NEMA 1 metallic casing, this loadcenter features 20 spaces supporting up to 40 single-pole circuits. It includes a cover and supports easy wiring with a plug-on neutral system.
Key Features:
- 200A rated, X5 configuration
- NEMA 1 enclosure for indoor use
- 20 spaces for up to 40 circuits
- 22 kAIC interrupt rating
- Single-phase, two hots, a neutral, and a ground
- Compatible with CSR2200 main breaker
- Accepts 6–1/0 AWG Cu/Al wire
- Plug-on neutral for quicker, neater installations
Perfect for residential and commercial indoor applications requiring high-capacity circuit protection.
