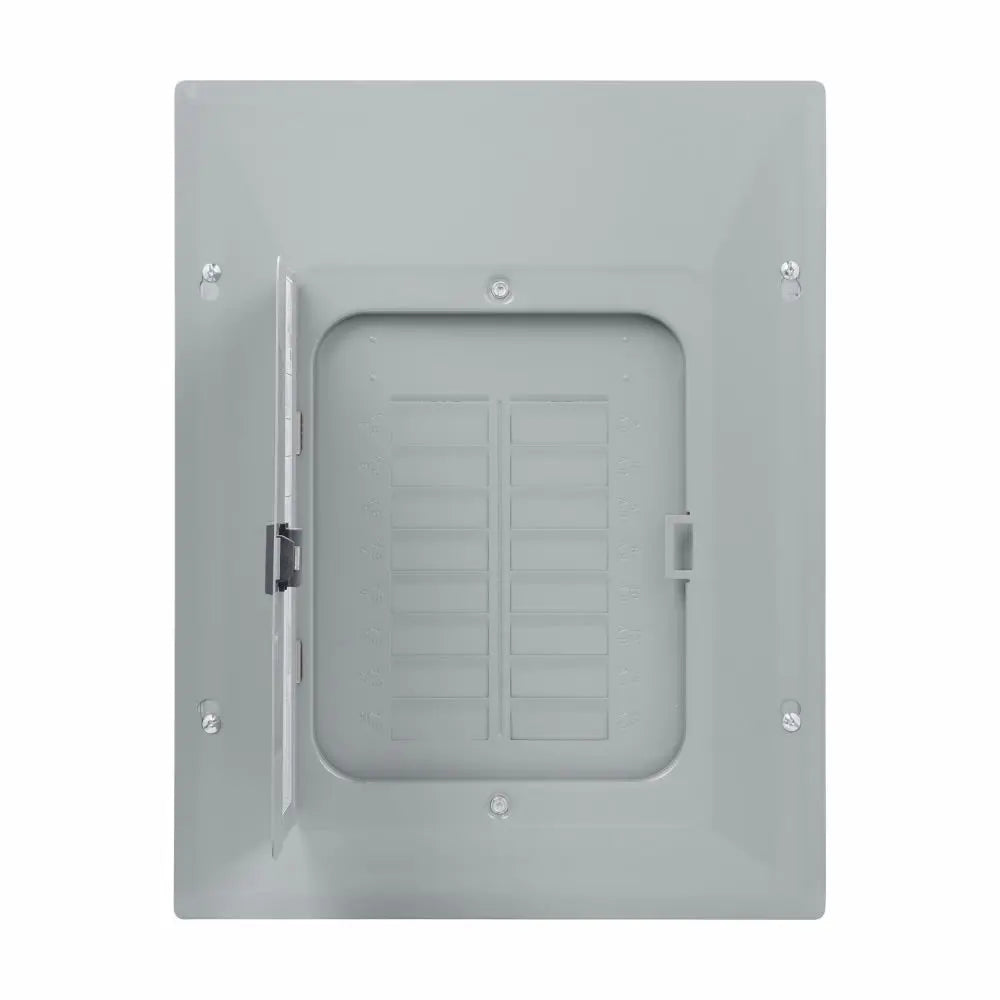

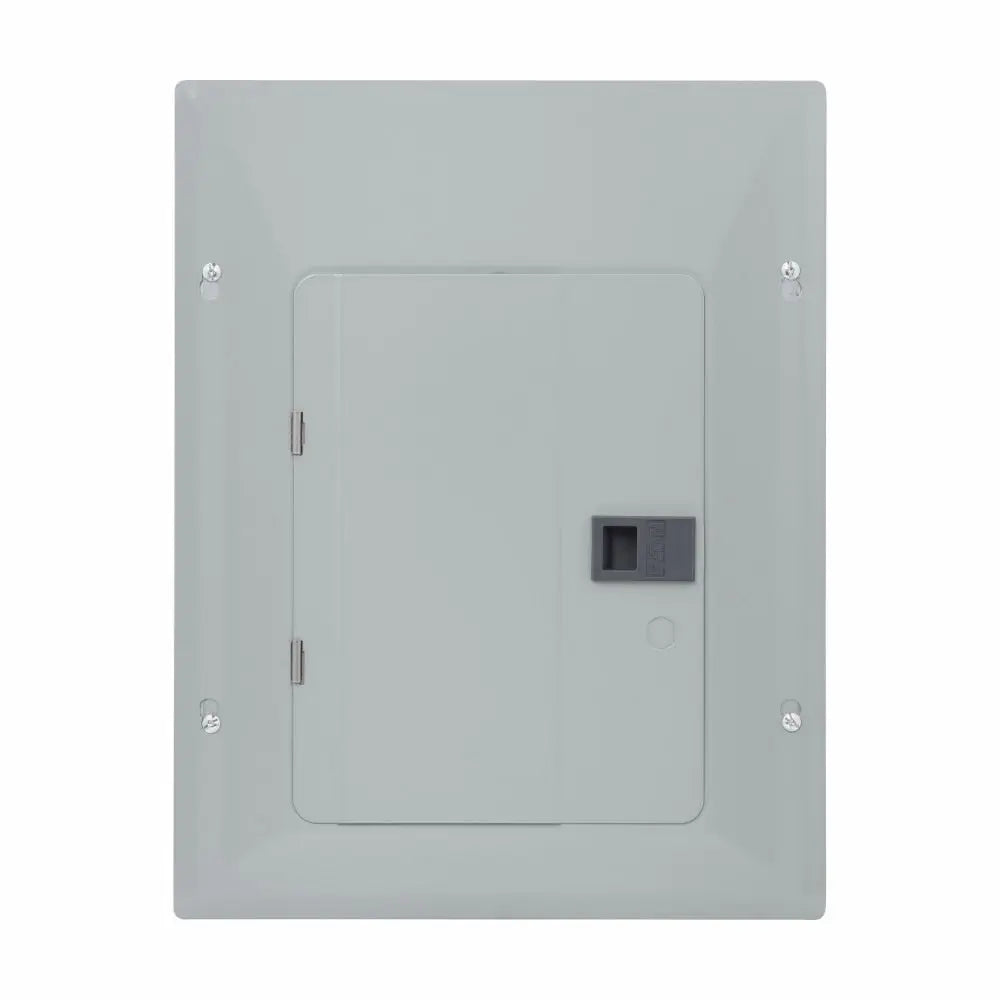

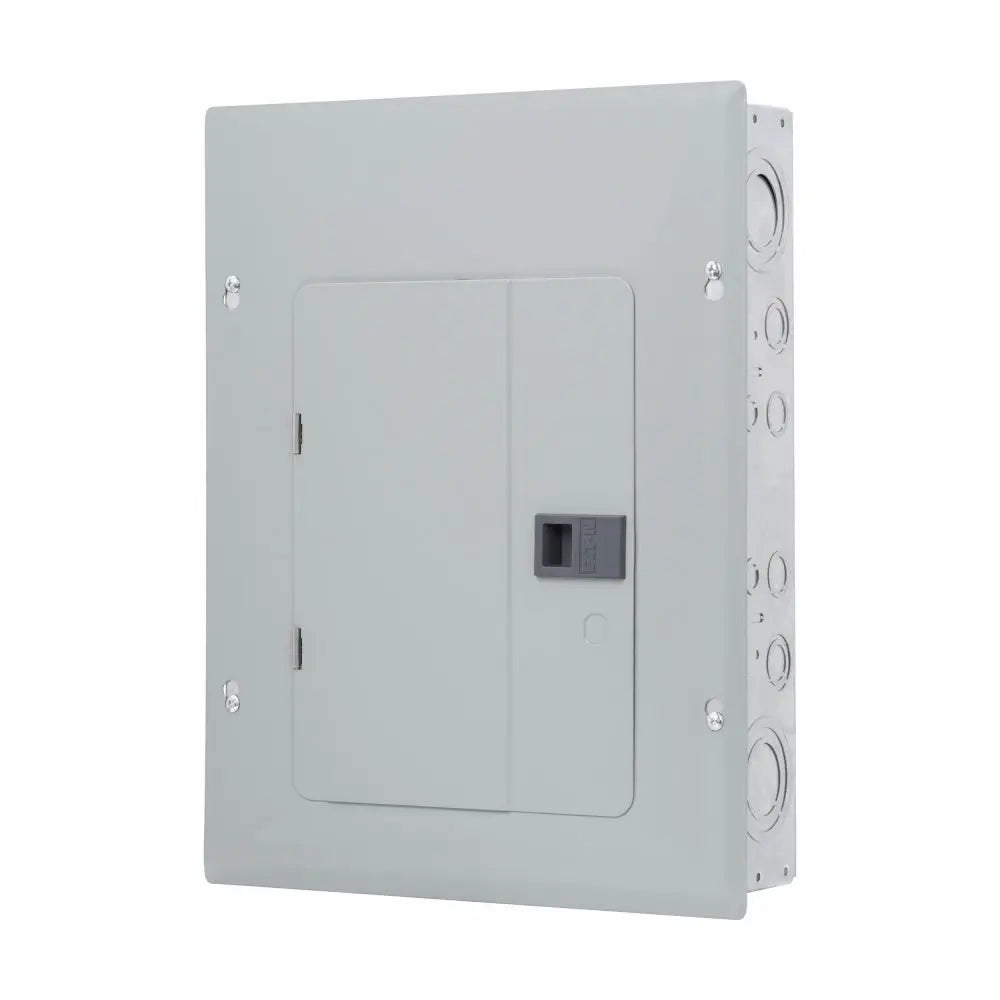

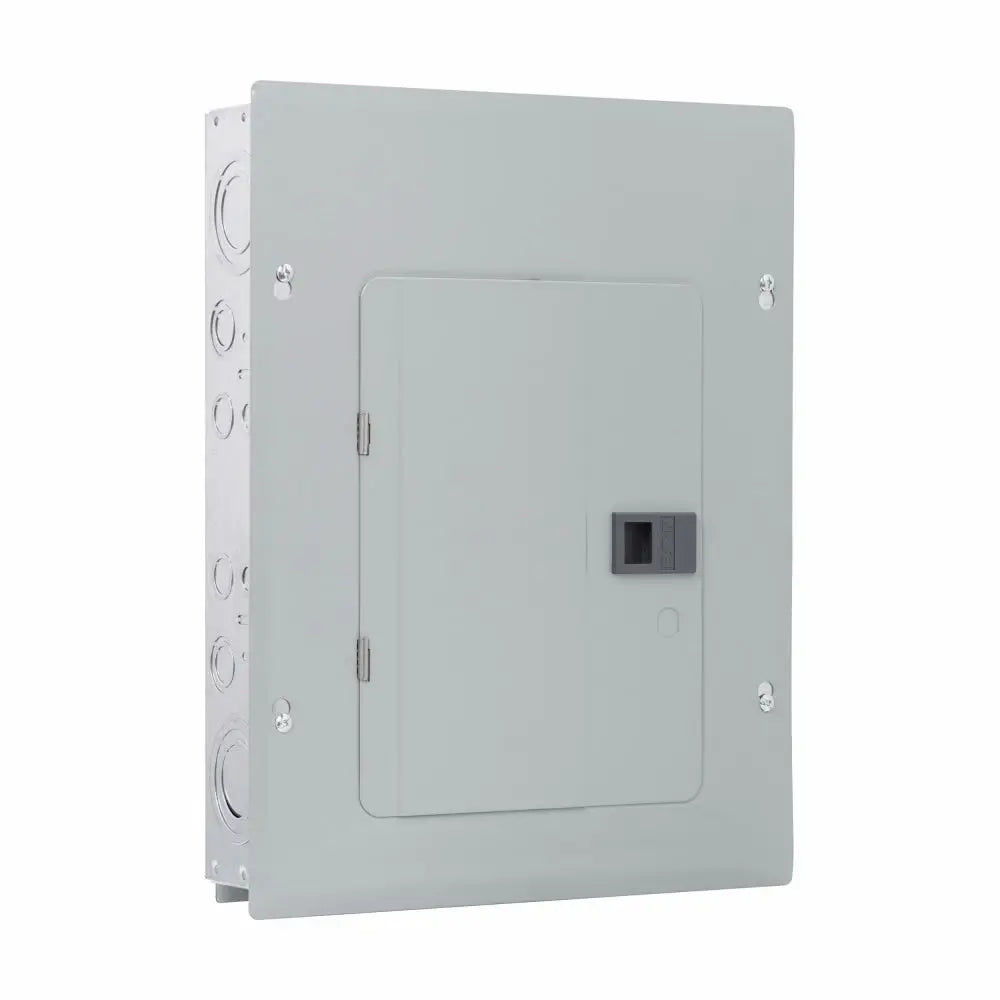

BRP16L125R - BR Pon Loadcntr 125A Mlo 16 Space N3R

BR Pon Loadcntr 125A Mlo 16 Space N3R
Eaton Eaton BR Main Lug Loadcenter, Main Lug Only, 125 A, X1, Aluminum, Nema 3R, Metallic, 10 Kaic, BR, Nema 3R, 32 Circuits, Single-Pole, 16 Spaces, Three-Wire, Single-Phase, Type BR 1-Inch Breakers, 120/240V, #6–2/0

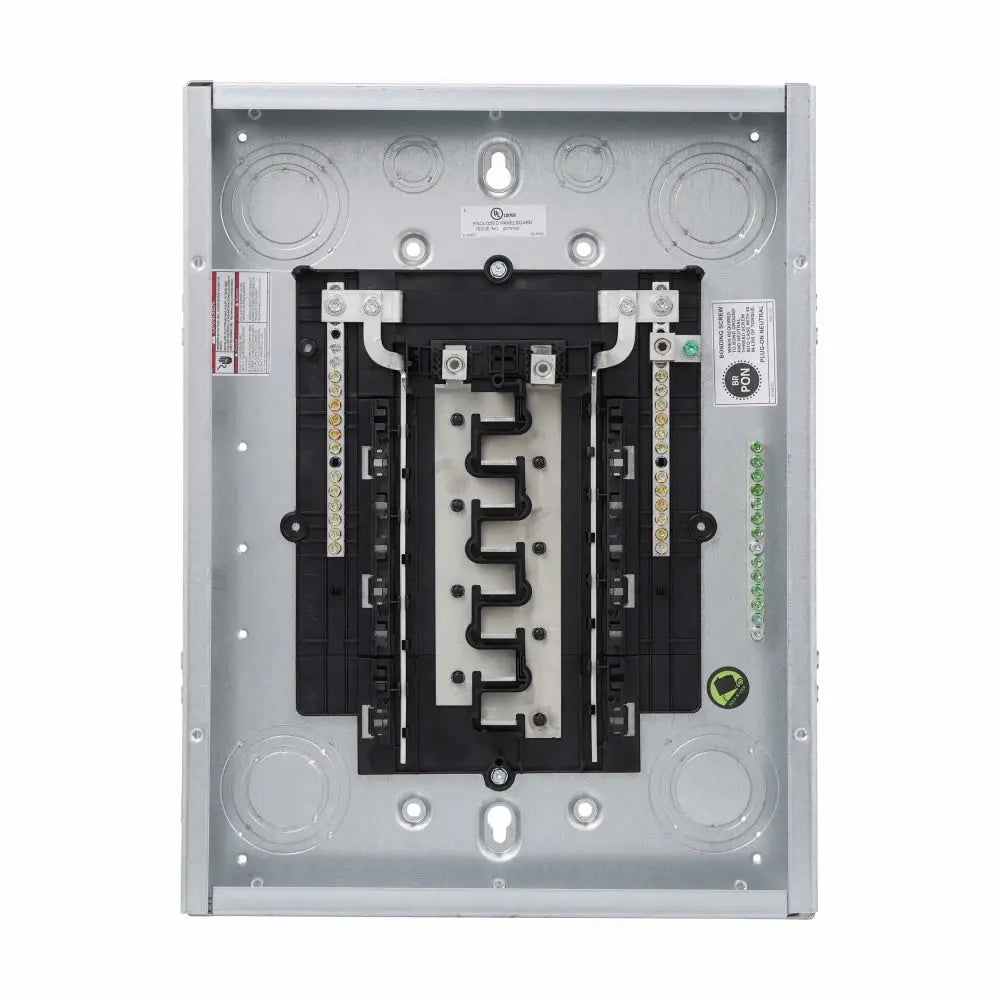

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

Key Features:

• Amperage rating: 125A
• Cover type: Cover included
• Interrupt rating: 10 kA
• Phase: Single-phase
• Voltage rating: 120/240V
• Configuration: Single-pole


Documents:

Specifications and datasheets
Eaton Specification Sheet - BRP16L125R
