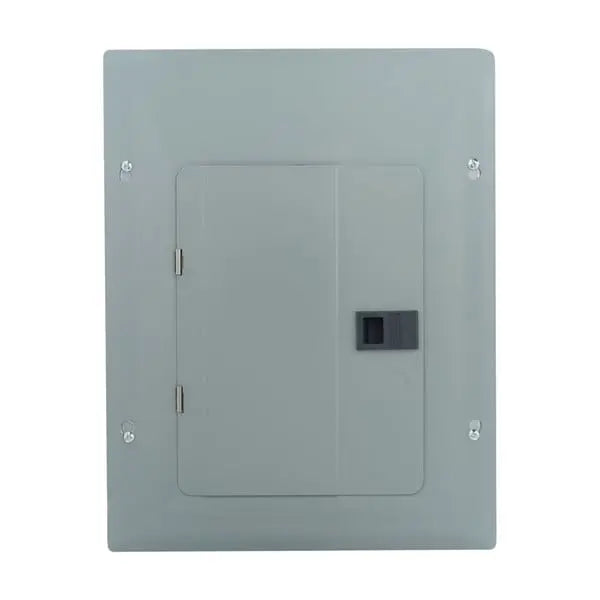

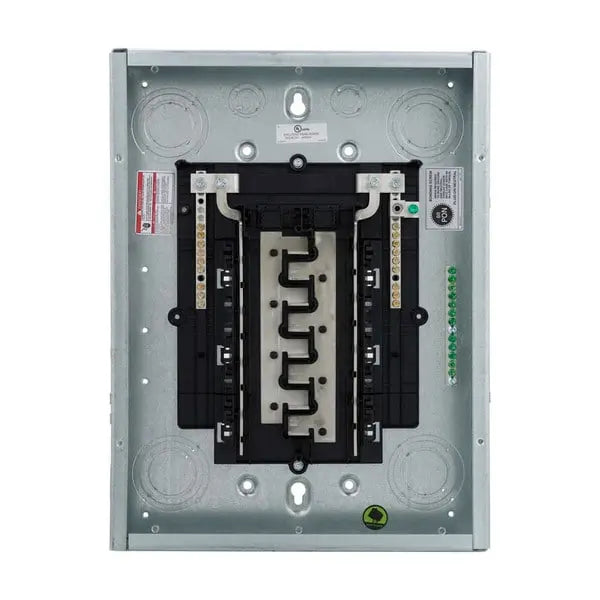

BRP12N125G - Eaton BR Convertible Loadcenter

The Eaton BR Convertible Loadcenter is a versatile, plug-on neutral main circuit breaker panel designed for reliable power distribution in residential and light commercial applications. With a 125A main rating and a 25kAIC interrupt rating, this loadcenter supports up to 24 circuits (12 spaces) and features a factory-installed ground bar for simplified wiring. Its convertible design allows for top or bottom feed, making it ideal for flexible installation.

Constructed from durable metallic materials and featuring an aluminum bus, this NEMA 1-rated loadcenter is intended for indoor use. It comes complete with a cover and supports single-phase applications with two hot lines, neutral, and ground.

Key Features:

• Amperage Rating: 125A
• Voltage: Single-phase
• Interrupt Rating: 25 kAIC
• Bus Material: Aluminum
• Spaces / Circuits: 12 Spaces / 24 Circuits
• Design: Convertible (top or bottom feed)
• Breaker Type: BR plug-on neutral main breaker
• Ground Bar: Included
• Enclosure Type: NEMA 1 (indoor use)
• Material: Metallic construction
• Cover: Included
• Configuration: 2 Hots, Neutral, and Ground

This Eaton BR Loadcenter offers a safe, organized, and code-compliant solution for modern electrical installations.
