BRP12L125R - Eaton Eaton BR Main Lug Loadcenter
-
Estimated Delivery:Dec 01 - Dec 05
-
Free Shipping & Returns: On all orders over $75
BRP12L125R - Eaton Eaton BR Main Lug Loadcenter

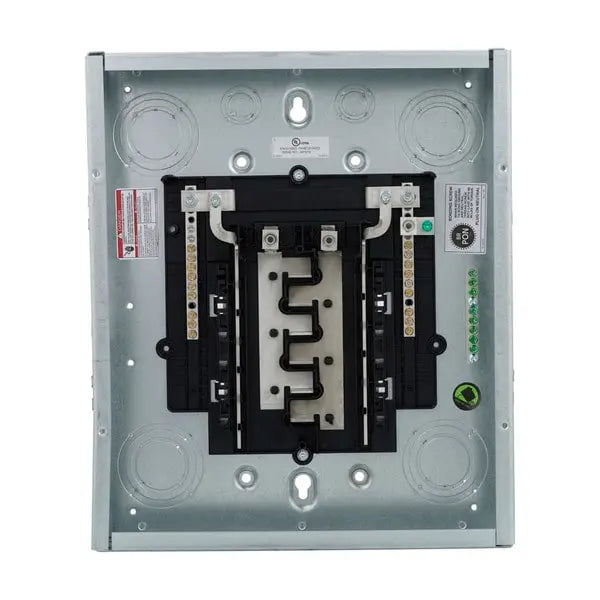

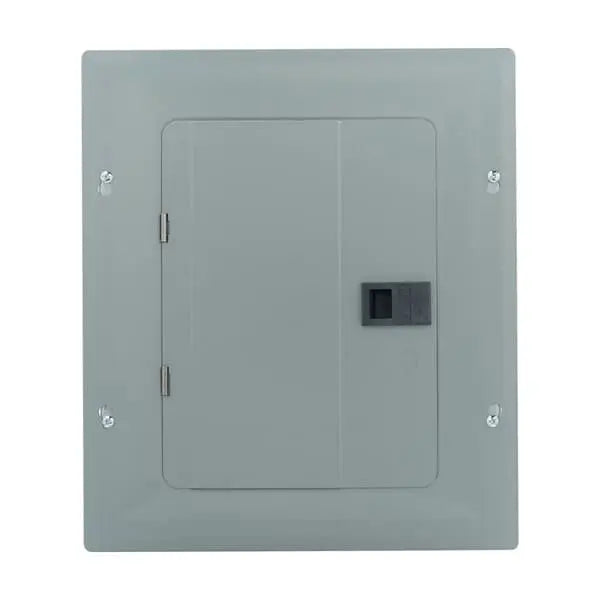

This Eaton BR Main Lug Loadcenter is built for outdoor applications with a weather-resistant NEMA 3R metallic enclosure. Rated at 125 Amps, it accommodates 24 circuits and 12 spaces, making it a reliable choice for residential and light commercial installations. The loadcenter supports single-phase, 120/240V systems with three-wire configuration and accepts Type BR 1-inch breakers.
Key Features:
- 125 A rating with NEMA 3R enclosure for outdoor use
- Supports up to 24 circuits and 12 spaces
- Compatible with Type BR 1-inch breakers
- Single-phase, 3-wire, 120/240V system
- Accepts wire size range: 6 – 2/0 AWG Cu/Al
- 10 kAIC short-circuit protection rating
Ideal for weather-exposed applications, this loadcenter delivers dependable outdoor electrical distribution.
Documents:
Specifications and datasheets
Eaton Specification Sheet - BRP12L125R
