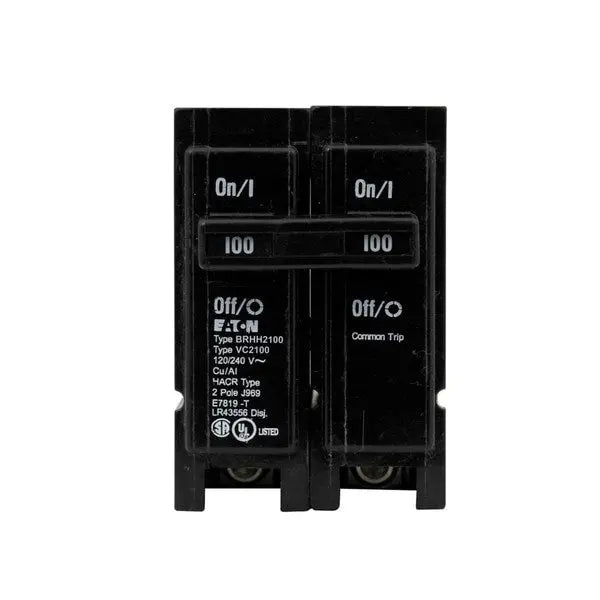

BRHH2100 - Eaton BR Thermal Magnetic Circuit Breaker

The Eaton BR Thermal Magnetic Circuit Breaker is a dependable overcurrent protection device designed for residential and light commercial electrical systems. This two-pole breaker is rated for 100 amps and features a thermal magnetic trip mechanism for fast and accurate response to overloads and short circuits. Built to fit Type BR loadcenters, it uses a compact 1-inch plug-on mounting system and supports both copper and aluminum conductors. With a high interrupting rating of 42 kAIC, this breaker provides strong protection in high-fault environments.

Key Features:

• Breaker Type: Thermal Magnetic
• Series: Type BR
• Poles: Two-Pole
• Amperage Rating: 100 A
• Voltage Rating: 120/240V AC
• Interrupting Rating: 42 kAIC
• Trip Type: Common Breaker Trip
• Mounting: 1-Inch Plug-On
• Conductor Size Range: 4 AWG – 1/0 AWG Copper or Aluminum
• Compatibility: For use in Type BR Loadcenters
• Catalog Number: Q28, BRH
• Certifications: UL Listed

The Eaton BR Thermal Magnetic Circuit Breaker delivers strong, code-compliant protection for branch circuits, ensuring safety and reliability in a wide range of electrical distribution systems.

Documents:

Specifications and datasheets
Eaton Specification Sheet - BRHH2100
