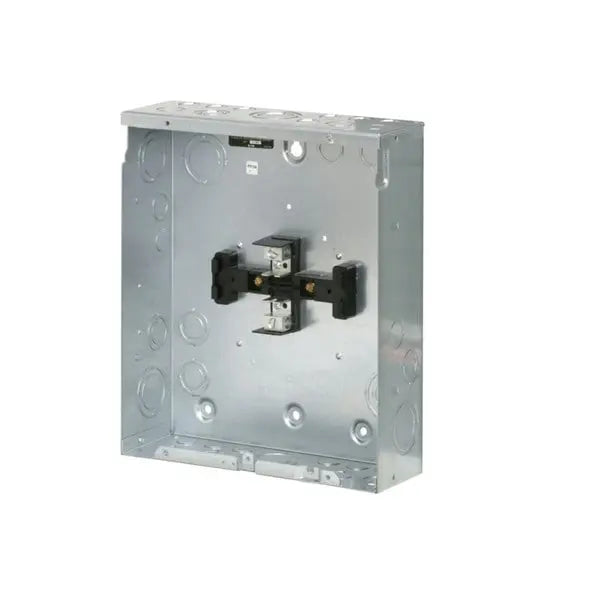

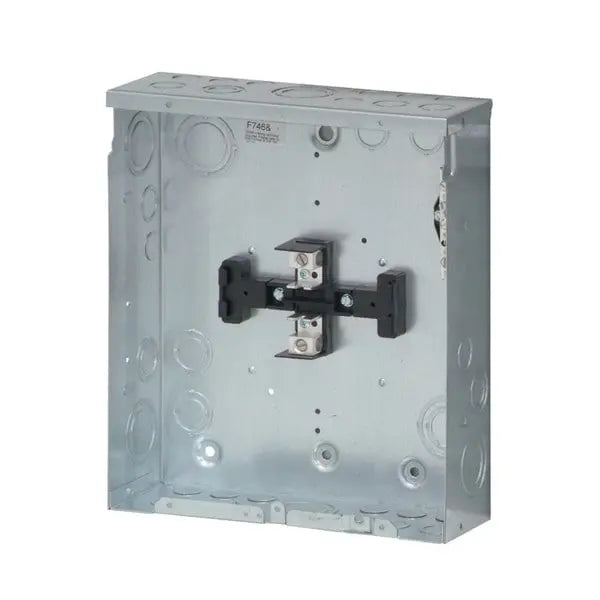

BR48L125SP - Main Lug Load Center

The Main Lug Load Center, 4 Spaces is designed to provide efficient power distribution for residential and light commercial applications. With a 125 A capacity and 120/240 V AC rating, it ensures reliable operation for various electrical circuits. The load center accommodates 4 spaces and 8 circuits, offering ample room for circuit breakers and ensuring flexibility for future expansion.

The unit is constructed from durable metallic material with an aluminum bus material, ensuring longevity and safety. It supports wire sizes ranging from 14 to 1/0 AWG, making it suitable for different electrical configurations. With its surface mount (trim) design, the load center is easy to install and offers a clean, organized appearance.

Key Features:

• 125 A capacity for reliable power distribution
• 120/240 V AC rating suitable for residential and commercial use
• 4 spaces and 8 circuits for flexible electrical configuration
• Supports wire sizes from 14 to 1/0 AWG
• Metallic material construction for durability
• Aluminum bus material for superior conductivity
• Compact size: 11 in length, 3.56 in width, 13 in height
• Surface mount (trim) design for easy installation

This Main Lug Load Center, 4 Spaces is an ideal solution for safely managing electrical circuits in your home or business, ensuring both functionality and ease of use.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Specifications and datasheets
Eaton Specification Sheet - BR48L125SP

Warranty guides
Eaton type BR circuit breaker limited warranty June 2024
