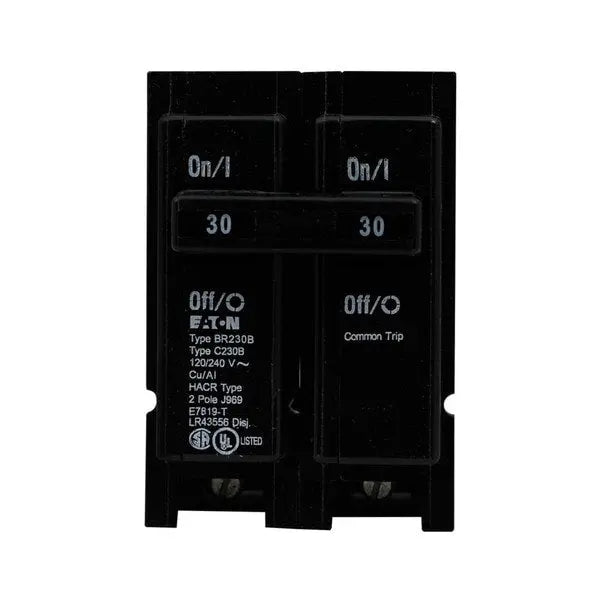

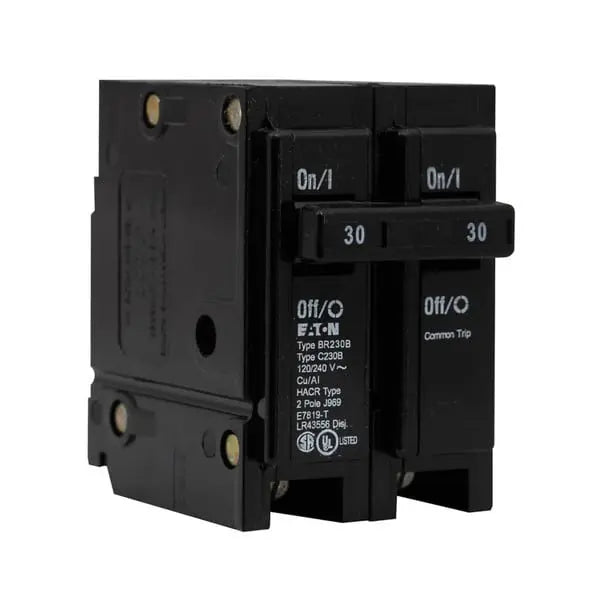

BR230B - Standard Trip Circuit Breaker

The standard trip circuit breaker, 30 A, is a reliable and efficient electrical protection device designed for residential and light commercial applications. Featuring a common tripping mechanism, this breaker ensures simultaneous disconnection of both the line and load terminals during an overcurrent event. The plug-on design allows for easy installation, and it is rated for 120/240 V AC applications. This circuit breaker provides overcurrent protection for your electrical system, preventing potential damage to wiring and connected devices.

Key Features:

• Type: Standard Trip Circuit Breaker
• Amperage: 30 A
• Tripping Mechanism: Common tripping for simultaneous line and load disconnection
• Terminal Type: Line and load lug terminals
• Design: Plug-on for easy installation
• Voltage Rating: 120/240 V AC
• Application: Suitable for residential and light commercial electrical systems

This circuit breaker ensures reliable protection for electrical circuits and helps maintain system safety by preventing overloads and short circuits.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Specifications and datasheets
Eaton Specification Sheet - BR230B

Warranty guides
Eaton type BR circuit breaker limited warranty June 2024
