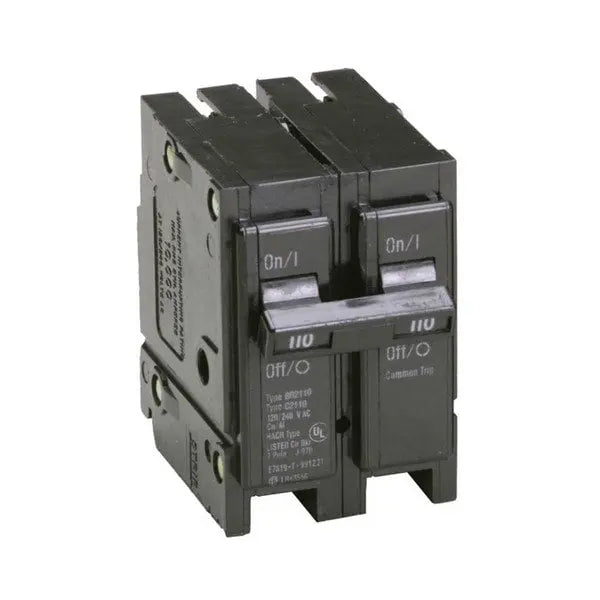

BR2110 - Eaton BR Thermal Magnetic Circuit Breaker

The Eaton BR Thermal Magnetic Circuit Breaker is a reliable and efficient overcurrent protection solution for residential and commercial applications. This Type BR 1-Inch Plug-On Circuit Breaker is rated for 110 A and features a 10 kAIC (kiloampere interrupting capacity), ensuring reliable protection against both thermal and magnetic faults. Designed for use with Eaton BR Loadcenters, this two-pole breaker operates at 120/240V and is capable of handling up to 4-1/0 AWG copper or aluminum conductors, providing flexibility in wire sizes. The Common Breaker Trip feature ensures that both poles trip simultaneously during a fault condition, adding an additional layer of safety. It’s easy to install and provides robust protection, making it an excellent choice for protecting your electrical systems.

Key Features:

• Product Type: Eaton BR Thermal Magnetic Circuit Breaker
• Amperage: 110 A
• Interrupting Capacity: 10 kAIC
• Poles: Two-pole design
• Voltage Rating: 120/240V
• Conductor Size: Compatible with 4-1/0 AWG copper or aluminum conductors
• Mounting Type: 1-inch plug-on for easy installation in BR loadcenters
• Trip Type: Common breaker trip for simultaneous pole operation during faults
• Compatibility: Designed for use in BR Loadcenters and similar systems

This Eaton BR Thermal Magnetic Circuit Breaker offers peace of mind with dependable protection for your electrical systems, ensuring that your circuits remain safe and operational under normal and fault conditions. Ideal for use in Eaton BR Type Loadcenters, it delivers both performance and safety in a compact, easy-to-install design.
