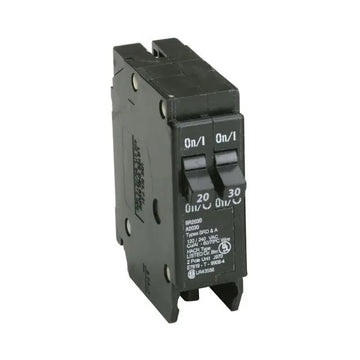

BR2030 - Eaton BR Thermal Magnetic Circuit Breaker

The Eaton BR Thermal Magnetic Circuit Breaker is designed for use in Type BR loadcenters, offering reliable protection for electrical systems. This 1-inch plug-on circuit breaker provides thermal magnetic protection, ensuring the safety of your system from overloads and short circuits. With a 120V rating, it is ideal for residential and light commercial applications. The breaker is compatible with 14-4 AWG copper or aluminum wire, providing flexible installation options. It features a common breaker trip, allowing for coordinated protection across multiple circuits.

Key Features:

• 120V rating for residential and light commercial use
• Thermal magnetic protection for overload and short circuit safety
• Compatible with 14-4 AWG copper or aluminum wire
• Designed for use with Type BR loadcenters
• 1-inch plug-on design for easy installation
• Common breaker trip for coordinated protection

The Eaton BR Thermal Magnetic Circuit Breaker ensures dependable protection, offering safety and performance for residential and light commercial electrical systems.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Specifications and datasheets
Eaton Specification Sheet - BR2030

Warranty guides
Eaton type BR circuit breaker limited warranty June 2024
