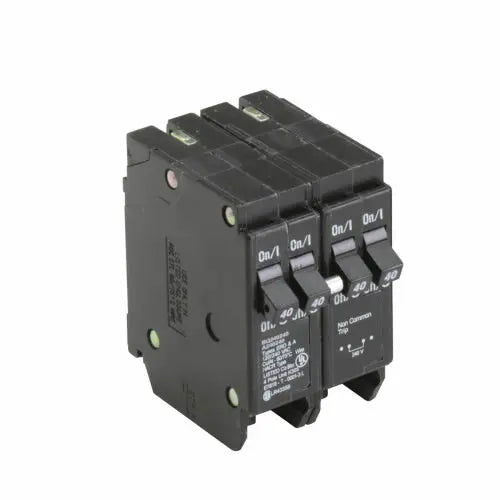

BQ240240 - BQ Quad BRKR 2 -40A/2P Indep. Trip 120/240V 10K

Optimal Performance with the 40 Amp Quad Breaker 120/240V

BQ Quad BRKR 2 -40A/2P Indep. Trip 120/240V 10K
Standard Trip Circuit Breaker, 40 A, 4 Poles, Independent Tripping Mechanism, Line and Load Lug Terminal, Plug-On, 120/240 V Ac, 3 In Overall Height, 3 In Overall Length, 2 In Overall Width

Eaton's residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneous

Key Features:

• Current rating: 40A
• Interrupt rating: 10 kAIC
• Poles: 4-pole
• Voltage rating: 120/240V AC


Documents:

Specifications and datasheets
Eaton Specification Sheet - BQ240240

Advanced Features of the BQ240240 Breaker

The 40 amp quad breaker 120/240V BQ240240 is designed to provide reliable circuit protection with high precision. This breaker operates independently on two poles, enabling seamless management of 120/240 voltage applications. It supports a 10,000 amp interrupting rating, ensuring safety during electrical faults. Its compact design allows easy installation in standard panels, making it ideal for both residential and commercial electrical systems where dependable performance is crucial.

Applications and Usability

This 40 amp quad breaker 120/240V is perfect for managing multiple circuits in tight spaces, offering flexible and secure power distribution. Its independent trip mechanism safeguards each circuit separately, reducing the risk of total system failure. Commonly used in multi-family housing and light commercial setups, the BQ240240 enhances system reliability and safety. Maintenance and upgrades can be done easily without disrupting the entire power system.

Durability and Safety Standards

Engineered to meet strict safety and durability standards, the BQ240240 quad breaker delivers long-lasting performance under demanding conditions. It complies with industry certifications ensuring thermal and magnetic tripping protections. This breaker smoothly handles overloads and short circuits, protecting wiring and connected equipment. With its robust build, it helps prevent electrical fires and hazards, making it a trustworthy component for your electrical distribution needs.
