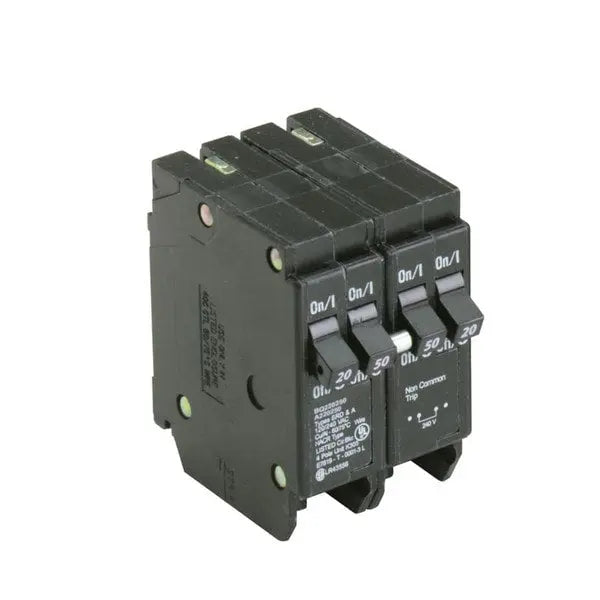

BQ220250 - Eaton BR Thermal Magnetic Circuit Breaker

The Eaton BR Thermal Magnetic Circuit Breaker is a Type BQ 1-Inch CTL Plug-On circuit breaker designed for reliable overcurrent protection in residential and commercial systems. This four-pole breaker includes one two-pole 20 A and one two-pole 50 A configuration, offering flexibility for different load requirements. With a 10 kAIC interrupting rating, it provides robust protection against short circuits. It features a rejection tab for added safety and supports independent operation. Compatible with 14-4 AWG copper or aluminum wire, this breaker operates at 120/240V and fits standard Type BQ panels.

Key Features:

• Includes one 2-pole 20 A and one 2-pole 50 A configuration
• Type BQ 1-inch CTL Plug-On with rejection tab feature
• 10 kAIC interrupting capacity for high fault protection
• Compatible with 14–4 AWG Cu/Al wire
• Four-pole, 120/240V operation with independent function

The Eaton BR Thermal Magnetic Circuit Breaker ensures efficient, safe circuit management with dual load options and thermal-magnetic technology for dependable protection.

Documents:

Catalogs

Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1
Specifications and datasheets

Eaton Specification Sheet - BQ220250
Warranty guides

Eaton type BR circuit breaker limited warranty June 2024
