BQ220230 - BQ Quad BRKR 1-20A/2P 1-30A/2P Indep. Trip 120/240

Understanding the BQ Quad circuit breaker for enhanced electrical safety

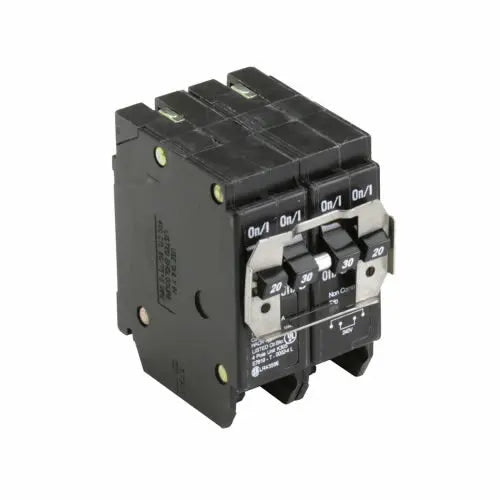

BQ Quad BRKR 1-20A/2P 1-30A/2P Indep. Trip 120/240
Standard Trip Circuit Breaker, 20/30 A, 4 Poles, Independent Tripping Mechanism, Line and Load Lug Terminal, Plug-On, 120/240 V Ac, 3 In Overall Height, 3 In Overall Length, 2 In Overall Width

A branch feeder type arc fault circuit interrupter is a device intended to mitigate high current arcing faults in the complete circuit, including connected cords. High current arcing faults can occur from line to neutral or line to ground. These arcing faults are in parallel with the load and produce the most energy of all arcing faults.The branch feeder type AFCI is required in the 1999 and 2002 National Electrical Code. The Combination Type AFCI is required in the 2005, 2008, and 2011 National Electrical

Key Features:

• Circuit breaker type: Standard trip circuit breaker
• Dimensions: 3.0 in × 2.0 in × 3.0 in
• For use with: Type BR loadcenters
• Mounting type: Plug-on
• Overall height: 3 in
• Overall width: 2 in
• Standards met: UL Listed 489, Federal Specifications Classification W-C375, IGCC 4813
• Terminal connection type: Line and load lug
• Trip type: T194
• Tripping mechanism: Independent


Documents:

Specifications and datasheets
Eaton Specification Sheet - BQ220230

Key Features of the BQ Quad circuit breaker

The BQ Quad circuit breaker is designed for robust electrical protection in residential and commercial settings. It supports independent trip functions with ratings of 1-20A and 1-30A across two poles, making it adaptable for different circuit needs. Its 120/240V compatibility ensures it fits standard electrical panels. This breaker offers reliable interruption of electrical flow during overload or short circuits, thereby safeguarding wiring and appliances from damage. The quad design integrates multiple breakers into a compact unit, allowing efficient use of panel space while providing independent control for two separate circuits.

Benefits of Independent Trip Mechanism

One of the standout features of the BQ Quad circuit breaker is its independent trip capability. This mechanism allows each pole to trip individually without affecting the other, enhancing safety and minimizing downtime during electrical faults. Such independent operation is essential in complex circuits where different loads require separate protection. It effectively isolates faults, reducing the risk of complete power interruptions and improving system reliability. This design feature makes the BQ Quad breaker especially suitable for applications needing precise circuit management and increased operational flexibility.

Applications and Installation Insights

The BQ Quad circuit breaker excels in a variety of applications from residential homes to commercial electrical distribution systems. Its compact structure saves panel space, allowing for more circuits in limited panel real estate. Installation is straightforward, designed to fit standard 120/240V breaker slots seamlessly. Electricians appreciate its easy integration and reliable performance under continuous load conditions. Whether used in new installations or upgrades, the BQ Quad circuit breaker ensures compliance with safety standards while delivering consistent circuit protection and operational longevity.
