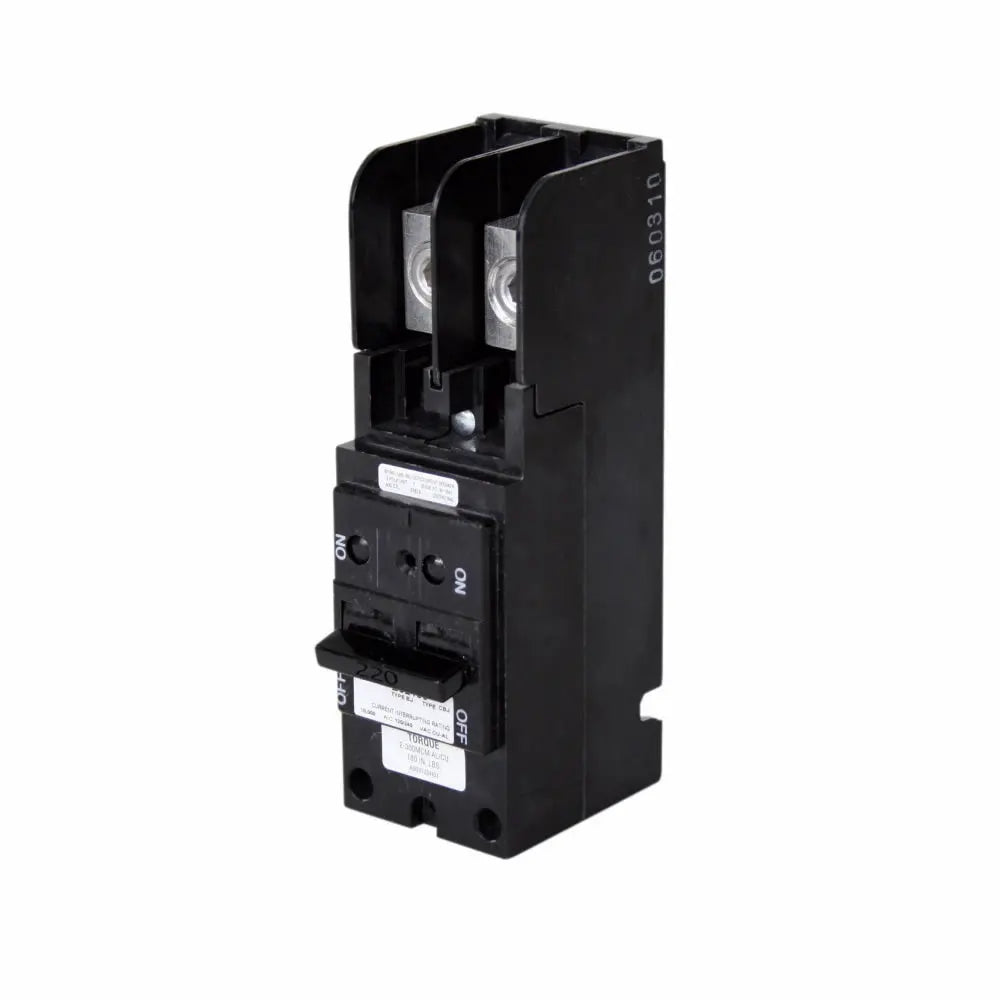

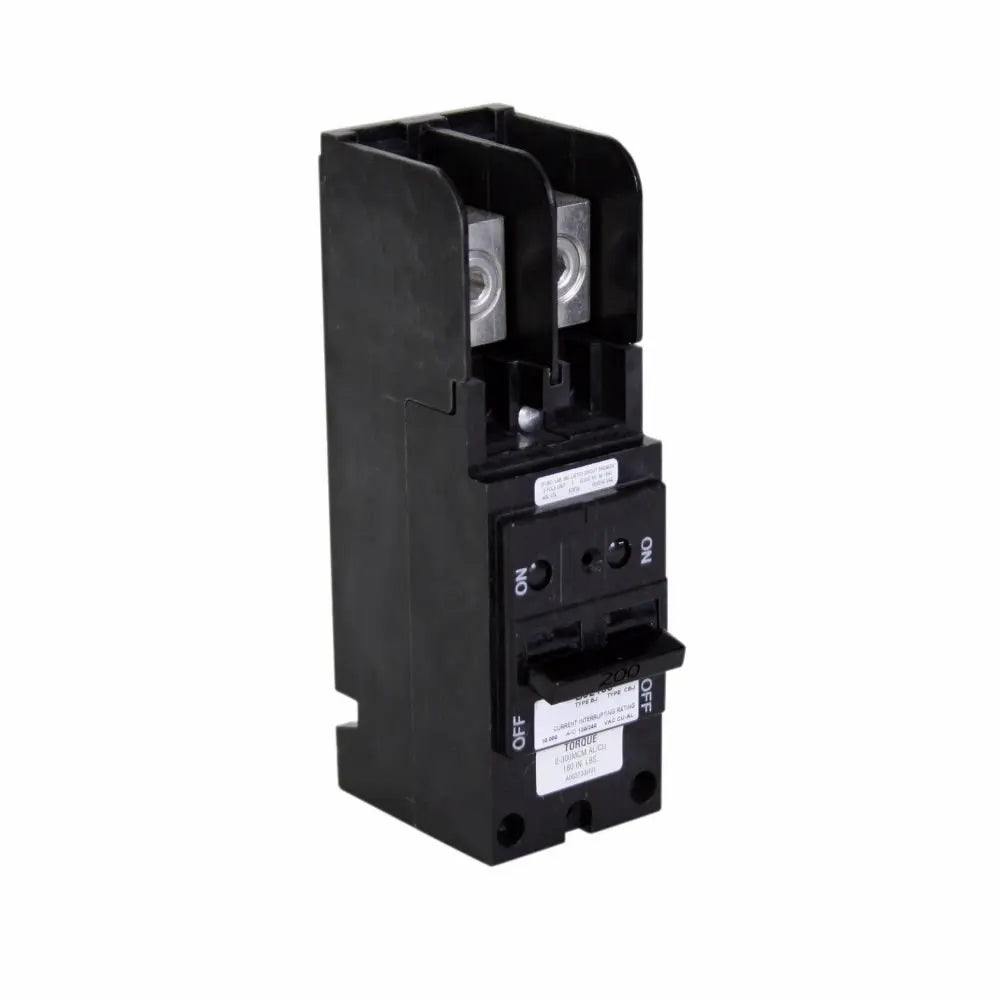

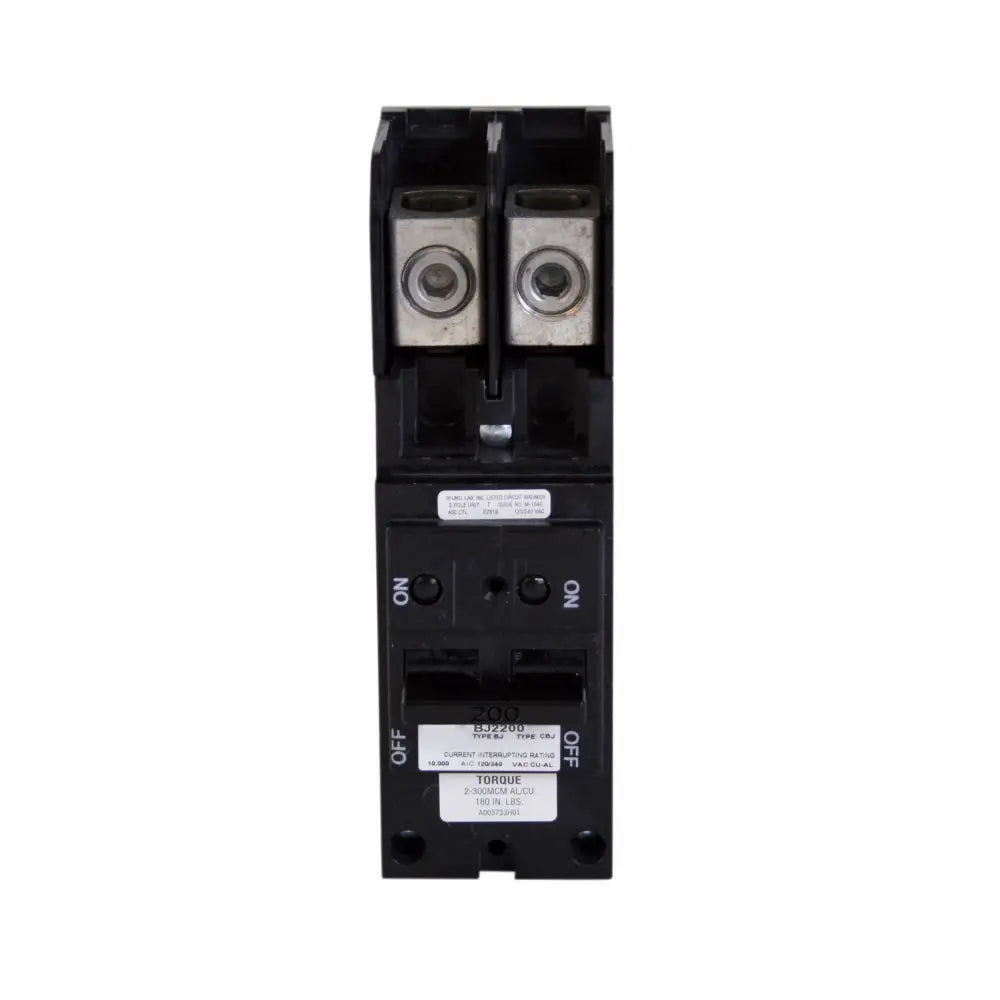

BJ2200 - Type BJ BRKR 200A/2 Pole 120/240V 10K Req 4 Spaces

Type BJ BRKR 200A/2 Pole 120/240V 10K Req 4 Spaces
Standard Trip Circuit Breaker, 200 A, Common Tripping Mechanism, Plug-On, 120/240 V Ac, 2.5 In Overall Height, 6.5 In Overall Length, 3.5 In Overall Width

A branch feeder type arc fault circuit interrupter is a device intended to mitigate high current arcing faults in the complete circuit, including connected cords. High current arcing faults can occur from line to neutral or line to ground. These arcing faults are in parallel with the load and produce the most energy of all arcing faults.The branch feeder type AFCI is required in the 1999 and 2002 National Electrical Code. The Combination Type AFCI is required in the 2005, 2008, and 2011 National Electrical

Key Features:

• Type: Standard trip circuit breaker
• Dimensions: 6.5 in × 3.5 in × 2.5 in
• For use with: Type BJ loadcenters
• Mounting type: Plug-on
• Overall height: 2.5 in
• Overall width: 3.5 in
• Standards met: UL Listed 489, Federal Specifications Classification W-C375, IGCC 4813
• Trip type: Common
• Tripping mechanism: Common trip


Documents:

Specifications and datasheets
Eaton Specification Sheet - BJ2200
