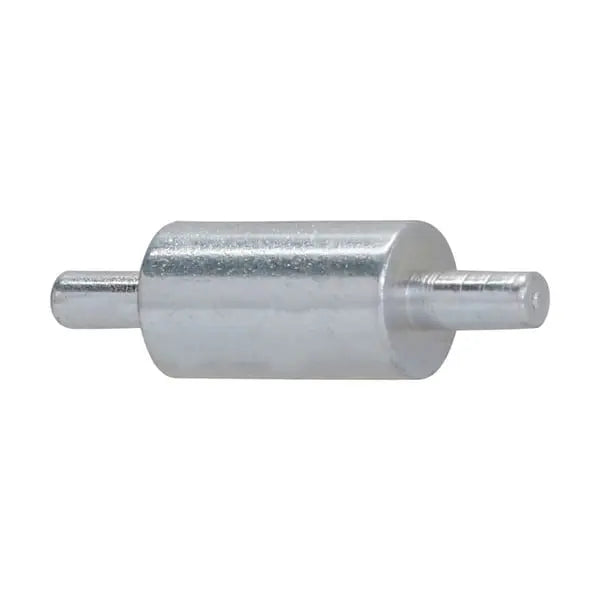

BHT - Eaton Handle Tie Bar For Type BR Circuit Breakers

The Eaton Handle Tie Bar is a practical accessory designed for use with Eaton Type BR circuit breakers. It functions as a handle lock or tie, connecting two single-pole breakers to create a two-pole breaker configuration. This accessory ensures simultaneous operation of connected breakers, enhancing circuit safety and compliance with electrical code requirements. Ideal for BR loadcenters, each tie bar measures 1 inch and comes in a pack of 10 for added convenience.

Key Features:

• Accessory Type: Handle Tie / Lock
• Compatibility: Designed for Type BR circuit breakers
• Application: Links two single-pole breakers for two-pole operation
• Size: 1 inch
• Quantity: Pack of 10
• Use With: BR loadcenters
• Material: Durable construction for long-term use

The Eaton Handle Tie Bar offers a reliable and code-compliant solution for modifying breaker configurations in residential or light commercial panels, ensuring safe and synchronized breaker operation.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Specifications and datasheets
Eaton Specification Sheet - BHT

Warranty guides
Eaton type BR circuit breaker limited warranty June 2024
