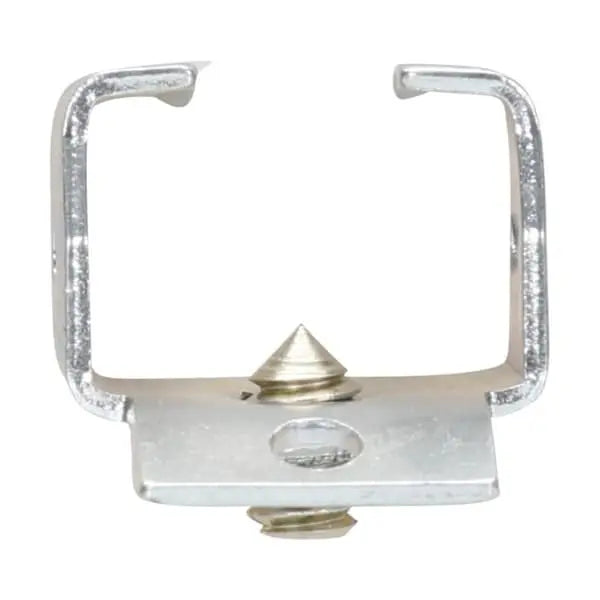

BHLW1 - Eaton Handle Lockdog

The Eaton Handle Lockdog is a reliable safety accessory designed to secure the handle position of single-pole Type BR circuit breakers. This handle-mounted lockdog prevents unauthorized operation or accidental switching of the breaker, ensuring enhanced safety in residential, commercial, or industrial electrical systems. Measuring 1 inch, it is specifically engineered for compatibility with Eaton BR circuit breakers, offering a secure fit and straightforward installation.

Key Features:

• Product Type: Handle Lockdog
• Compatibility: Suitable for Type BR Circuit Breakers
• Application: For Single-Pole Breakers (Handle Mounted)
• Size: 1 Inch
• Purpose: Prevents accidental or unauthorized breaker operation
• Installation: Easy, tool-free mounting on breaker handle
• Use Case: Residential, Commercial, or Industrial Safety

The Eaton Handle Lockdog provides a simple yet effective way to enhance breaker security and meet lockout/tagout safety requirements in electrical systems.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Specifications and datasheets
Eaton Specification Sheet - BHLW1
