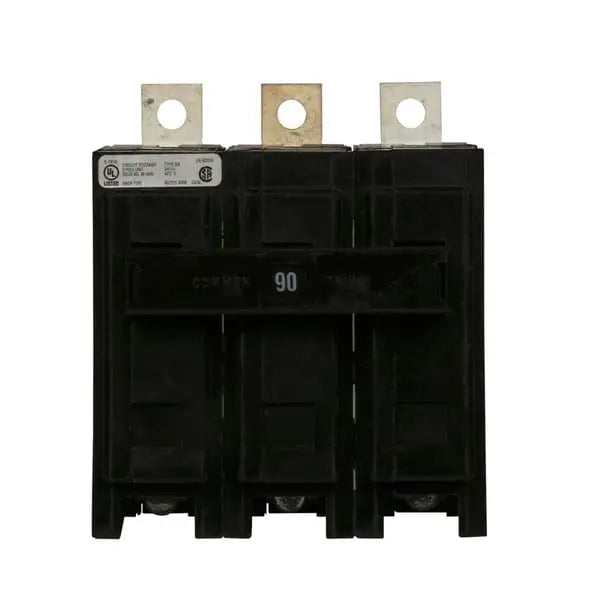

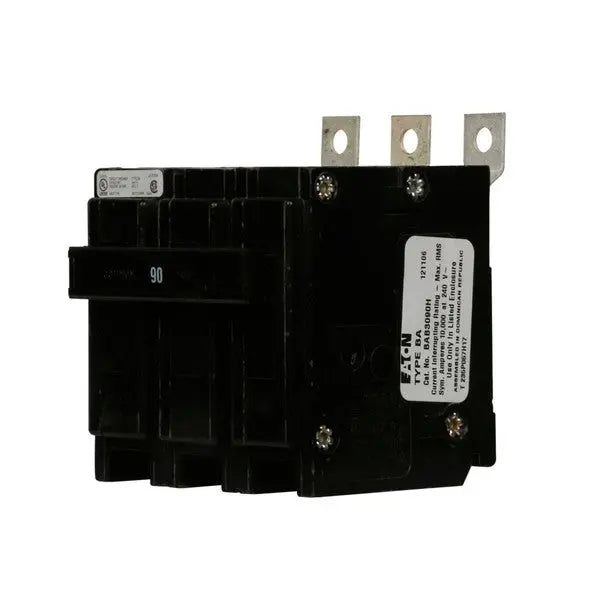

BAB3090H - Eaton Quicklag Industrial Thermal-Magnetic Circuit Breaker

The Eaton Quicklag Industrial Thermal-Magnetic Circuit Breaker is built to provide dependable protection for industrial and commercial electrical systems. With a three-pole configuration and a 90A rating, this breaker ensures the safe interruption of power during overloads or short circuits. Featuring a thermal-magnetic trip unit and a non-interchangeable design, it delivers consistent performance. Rated for 10,000 amperes of interrupting capacity (Kaic) and equipped with bolt-on mounting, it is ideal for secure installation in 240V systems.

Key Features:

• 90A rating for strong current protection
• Thermal-magnetic trip unit for overload and short-circuit defense
• 10 Kaic interrupting capacity for high-level electrical safety
• Three-pole design compatible with 240V systems
• Non-interchangeable with bolt-on mounting for stable installation

This circuit breaker ensures long-lasting protection and reliable operation for demanding electrical environments.

Documents:

Catalogs
Circuit Protection, Miniature Circuit Breakers and Supplementary Protectors, Volume 4, Tab 1

Multimedia
Circuit Breakers Explained

Specifications and datasheets
Eaton Specification Sheet - BAB3090H
