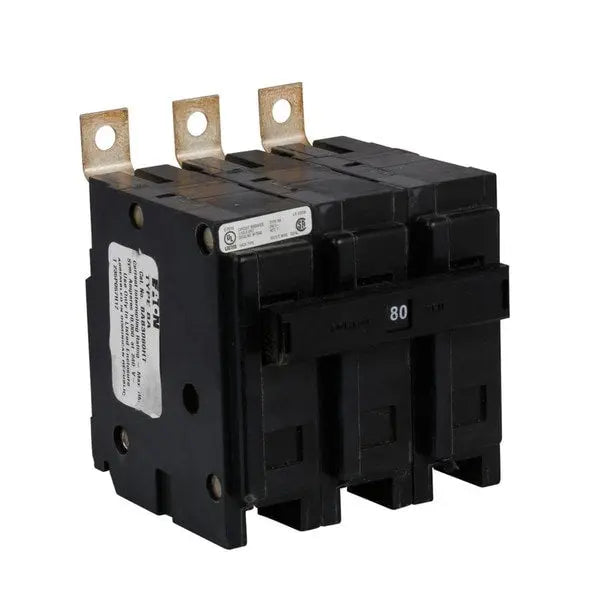

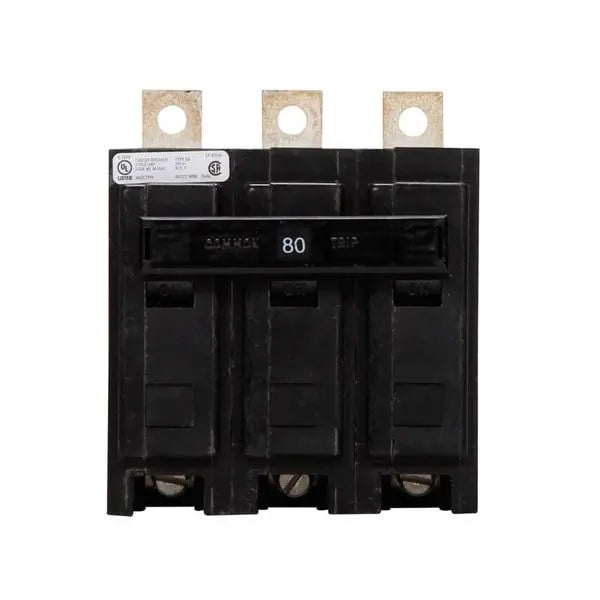

BAB3080H - Eaton Quicklag Industrial Thermal-Magnetic Circuit Breaker

The Eaton Quicklag Industrial Thermal-Magnetic Circuit Breaker is designed to offer reliable protection for industrial and commercial electrical systems. With a three-pole configuration and an 80A rating, this breaker effectively interrupts power during overloads or short circuits. Featuring a thermal-magnetic trip unit and a non-interchangeable design, it ensures consistent and dependable performance. Rated for 10,000 amperes of interrupting capacity (Kaic) and built for bolt-on mounting, it is an excellent choice for 240V applications.

Key Features:

• 80A rating for robust current protection
• Thermal-magnetic trip unit for overload and short-circuit protection
• 10 Kaic interrupting capacity for enhanced system safety
• Three-pole design suitable for 240V electrical systems
• Non-interchangeable with bolt-on mounting for secure installation

This circuit breaker delivers durable, high-performance protection for maintaining the safety of your electrical infrastructure.

Documents:

Catalogs
Circuit Protection, Miniature Circuit Breakers and Supplementary Protectors, Volume 4, Tab 1

Multimedia
Circuit Breakers Explained

Specifications and datasheets
Eaton Specification Sheet - BAB3080H
