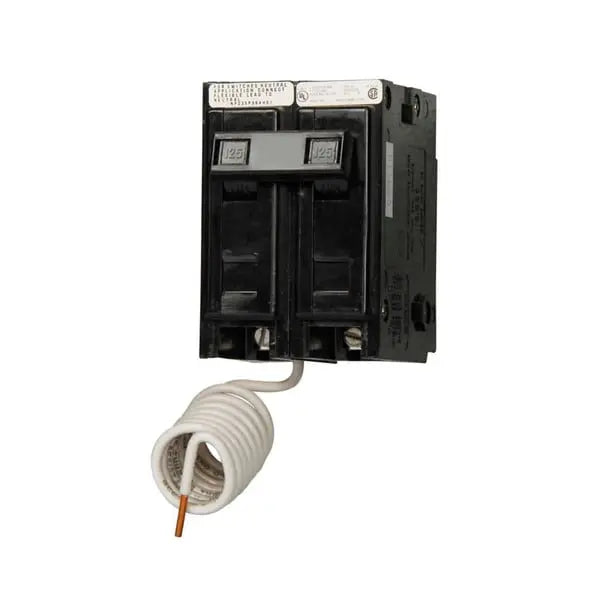

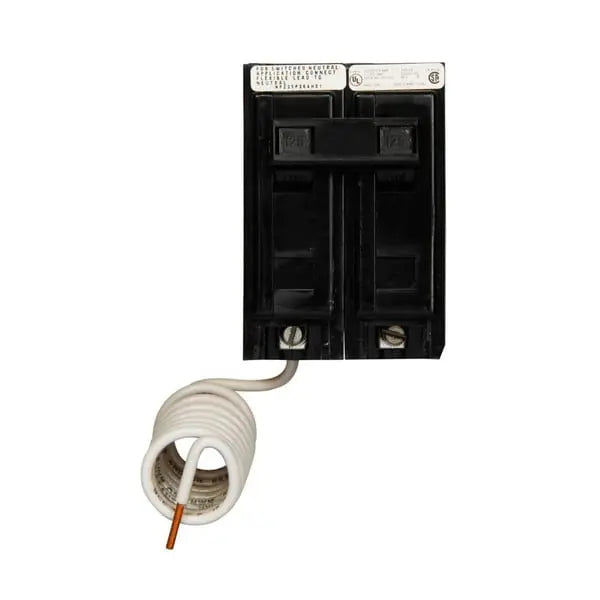

BAB2125 - Thermal Magnetic Circuit Breaker

This Thermal-Magnetic Circuit Breaker is built to deliver dependable protection for a wide range of electrical systems. With a 125A rating and a non-interchangeable tripping mechanism, it ensures secure interruption of power during overloads or short circuits. Designed for bolt-on mounting, this breaker fits easily into various electrical panels. With dimensions of 4.8 inches in height, 3.8 inches in length, and 2.1 inches in width, and a weight of 0.75 pounds, it combines compact size with powerful performance for 120/240V AC systems.

Key Features:

• 125A rating for high-capacity current protection
• Non-interchangeable tripping mechanism for consistent operation
• Bolt-on mounting for stable and secure installation
• Compact design with 4.8" height, 3.8" length, and 2.1" width
• Suitable for use in 120/240V AC electrical systems

This circuit breaker provides efficient, durable, and space-saving protection for your critical electrical infrastructure.

Documents:

Catalogs
Circuit Protection, Miniature Circuit Breakers and Supplementary Protectors, Volume 4, Tab 1

Multimedia
Circuit Breakers Explained

Specifications and datasheets
Eaton Specification Sheet - BAB2125
