BAB1020 - Type Bab Circuit BRKR 1P, 20AMP 120/240V, 10, 000AIC,

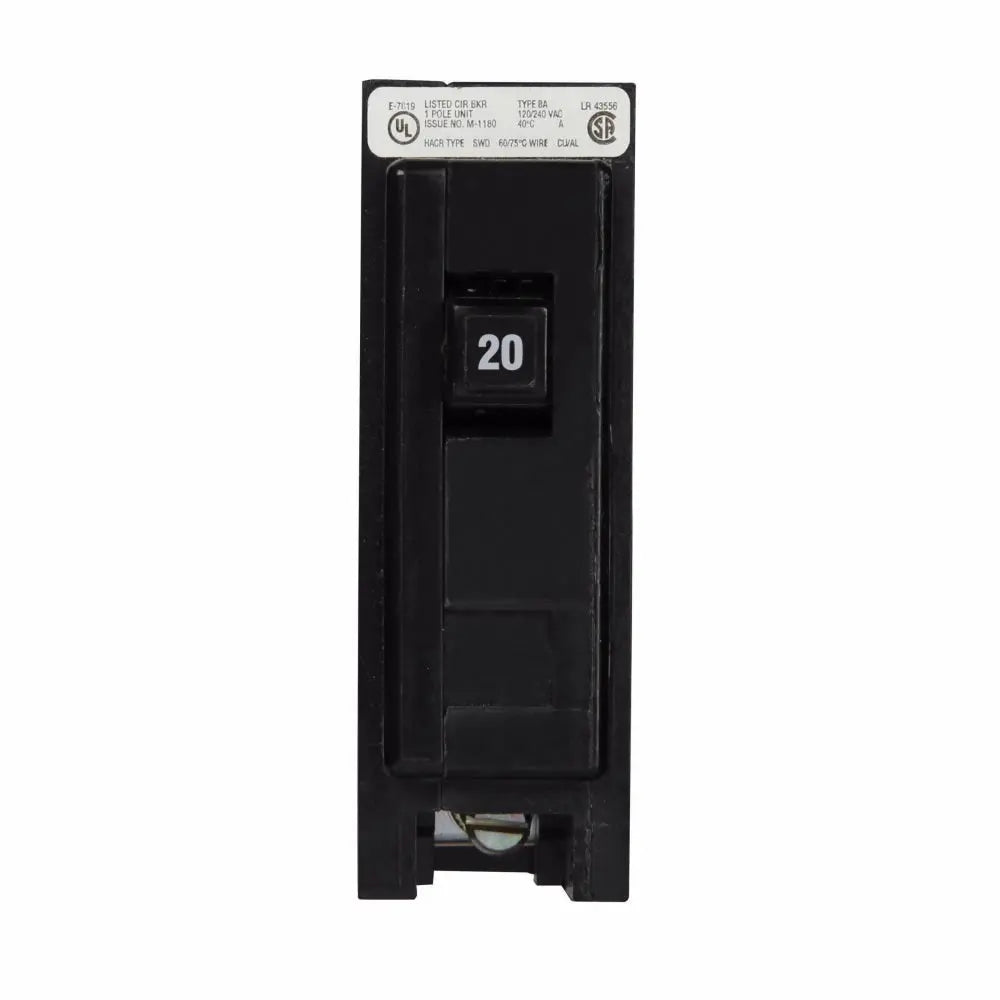

Detailed Overview of the Eaton BAB1020 Circuit Breaker

Eaton BAB thermal magnetic circuit breaker,Quicklag industrial thermal-magnetic circuit breaker,Bolt-on mounting, High intensity discharge,20 A,10 kAIC,Single-pole,120/240 V,Non-Interchangeable,Q7,BAB

Key Features:

Application: OtherGeneration - Renewable Energy - Alternative EnergyGeneration - Conventional Energy - Conventional EnergyDatacenters - IT Space: CI and Hyper ConvergedMarine Vessels and Equipment - Marine Vessels and Equipment - OtherResidential Bldgs & Facilities - Residential Bldgs & Facilities - Other
Standard: CSA Certified,UL Listed

Documents:

Specifications and datasheets
Eaton Specification Sheet - BAB1020

Reliable Performance of Eaton BAB1020 Circuit Breaker

The Eaton BAB1020 circuit breaker is designed to deliver reliable protection for residential and commercial electrical systems. Featuring a single-pole 20-ampere rating, this breaker supports 120/240 volts, making it suitable for various standard applications. Its 10,000 ampere interrupting capacity (AIC) ensures it can safely handle fault currents, preventing electrical hazards. Engineered for durability, the BAB1020 offers stable operation and consistent performance under demanding conditions. This makes it a trusted choice for electricians and facilities that prioritize safety and reliability in their power distribution systems.

Key Features and Benefits of the BAB1020 Circuit Breaker

The Eaton BAB1020 circuit breaker comes with several features that enhance safety and efficiency. Its Type Bab design allows for easy installation in standard panelboards and load centers. Rated for 120/240 volts, it accommodates typical electrical setups, while the 10,000 AIC rating provides high fault tolerance, reducing the risk of equipment damage. Additionally, the 1-pole breaker offers compact size and simplicity, making it ideal for circuit protection in various applications. These features combine to deliver both peace of mind and operational excellence for users requiring dependable electrical protection solutions.

Applications and Installation Insights for the Eaton BAB1020

The Eaton BAB1020 circuit breaker is widely used in homes, offices, and light commercial environments due to its versatile specifications. It is compatible with common panelboards, which simplifies the replacement and upgrade process. Installation requires a qualified electrician to ensure compliance with local electrical codes and standards. Thanks to its standard 1-pole configuration, the BAB1020 fits seamlessly into existing electrical systems, providing robust overcurrent protection. Its efficiency in interrupting fault currents up to 10,000AIC makes it ideal for safeguarding electrical circuits and preventing potential hazards from short circuits or overload conditions.
