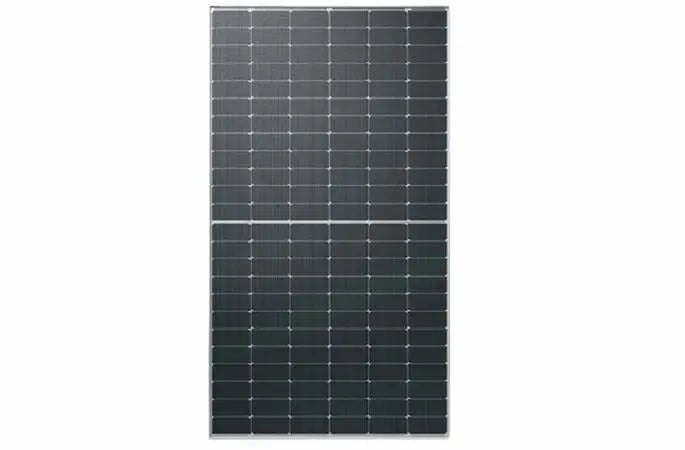

Axitec Solar 580W 144 TOPCon Cells Bifacial Solar Panel
Axitec 580W Bifacial Solar Panel: Advanced Solar Technology for Enhanced Power Output
Built for maximum output and long-term durability, the Axitec 580W TOPCon Bifacial panel delivers premium performance for commercial, ground-mount, and utility-scale solar installations. With N-Type TOPCon cell technology and a glass-glass bifacial design, this module captures energy from both sides — boosting real-world yield well beyond its rated output.
✅ In Stock — Ready to Ship from Our U.S. Distribution Centers
Why Choose the Axitec 580W TOPCon?
- High Efficiency N-Type TOPCon Cells: 144 half-cut cells engineered for superior low-light and high-temperature performance
- Bifacial Design: Captures reflected light from the rear side for up to 30% additional energy yield
- Glass-Glass Construction: Enhanced durability and resistance to PID, moisture, and mechanical stress
- 30mm Silver Aluminum Frame: Robust structural integrity for ground-mount and tracker installations
- Bankable Brand: Axitec is a trusted Tier 1 manufacturer with a proven global track record
Technical Specifications
| Specification | Value |
|---|---|
| Model | AC-580TGB/144TS |
| Peak Power (Pmax) | 580W |
| Power Tolerance | 0 / +5W |
| Module Efficiency | 22.45% |
| Cell Technology | N-Type TOPCon Bifacial |
| Cell Configuration | 144 Half-Cut Cells |
| Max Power Voltage (Vmp) | 43.94V |
| Max Power Current (Imp) | 13.20A |
| Open Circuit Voltage (Voc) | 52.82V |
| Short Circuit Current (Isc) | 14.01A |
| Max System Voltage | 1500V DC |
| NOCT | 45°C ± 2K |
| Temp. Coefficient (Pmax) | -0.31% / °C |
| Temp. Coefficient (Voc) | -0.25% / °C |
| Temp. Coefficient (Isc) | +0.05% / °C |
| Module Dimensions | 2278 x 1134 x 30 mm (89.7 x 44.6 x 1.2 in) |
| Weight | 31.2 kg (68.8 lbs) |
| Frame | 30mm Silver Aluminum |
| Front Glass | 2.0mm Tempered Glass |
| Rear Glass | 2.0mm Tempered Glass |
| Junction Box | IP68 Rated |
| Connector Type | MC4 Compatible |
| Front Load (Wind/Snow) | 5400 Pa |
| Rear Load | 2400 Pa |
| Product Warranty | 25 Years |
| Performance Warranty | 30 Years Linear |
📄 Product Datasheet
Download Axitec 580W TOPCon Datasheet (PDF)
Best For
- Commercial rooftop and ground-mount installations
- Solar tracker systems
- Utility-scale projects requiring high-density energy output
- Installers and developers sourcing premium bifacial modules
Innovative 144 TOPCon Cells for Superior Efficiency
The Axitec 580W bifacial solar panel features 144 state-of-the-art TOPCon cells designed to optimize power conversion and enhance overall efficiency. TOPCon technology improves electron flow, reducing energy loss and enabling the panel to capture more sunlight compared to conventional solar modules. This results in higher energy yield, making it an ideal choice for both residential and commercial solar installations looking for reliable and efficient performance.
Bifacial Design Maximizes Energy Harvest
With its bifacial solar module design, the Axitec 580W bifacial solar panel captures sunlight from both the front and rear sides. This double-sided light absorption increases total energy production by up to 25%, especially when installed on reflective surfaces like white roofs or light-colored ground covers. This technology ensures a more consistent and robust power output throughout the day and across varying sun angles.
Durability and Reliability for Long-Term Use
Built with high-quality materials and rigorous manufacturing standards, the Axitec 580W bifacial solar panel offers excellent durability to withstand harsh weather conditions, including heavy snow, strong winds, and corrosion. Its robust frame and advanced cell encapsulation contribute to a lengthy service life with minimal performance degradation. This reliability means a secure investment for solar energy users seeking a low-maintenance, long-lasting solar solution.
