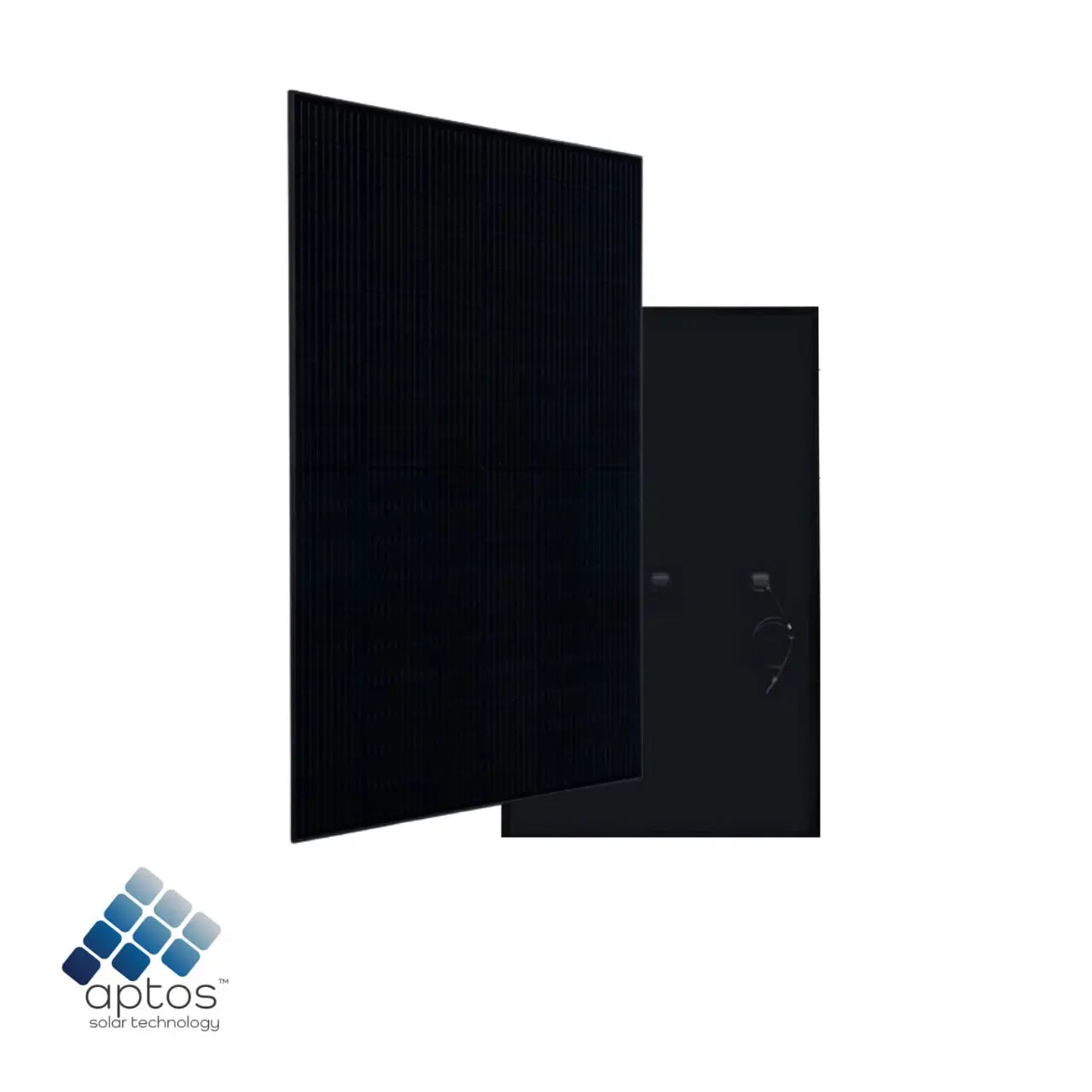

Apartments 460W DNA Split Cell Mono PERC Solar Panel | DNA-120-MF10-460W
-
Estimated Delivery:May 12 - May 16
-
Free Shipping & Returns: On all orders under $50
Apartments 460W DNA Split Cell Mono PERC Solar Panel | DNA-120-MF10-460W
Advantages of Apartments with 460W Solar Panel Installation
The Aptos DNA-120-MF10-460W is a high-performance 460-watt monofacial solar panel engineered for both residential and commercial applications. Featuring Aptos Solar's patented DNA Split Cell technology with advanced Selective Emitter PERC (SE-PERC) cells, this panel delivers industry-leading efficiency, superior durability, and a 30-year product and performance warranty — making it a bankable, long-term investment for any solar project.
Selling Price: $153.41 per panel
Volume pricing available — contact us for container and pallet quotes.
Key Features
- Patented DNA Technology: Aptos' proprietary DNA Split Cell design uses 10 ultra-thin busbars to reduce resistive losses and maximize energy harvest across the full active cell area.
- Advanced SE-PERC Cell Technology: Selective emitter PERC with thin film layers improves heat tolerance, minimizes resistive loss, and utilizes 5% more of the available active area for optimal power output.
- Maximum Durability – Level 6 Salt Mist Certified: Engineered to withstand the harshest coastal and industrial environments with Level 6 salt mist resistance.
- 5400 Pa Wind and Snow Load Certified: Structurally rated for extreme weather conditions — 5400 Pa front-side load capacity for clamping installations.
- All-Black Aesthetic: Sleek black frame and backsheet design suitable for residential rooftops and commercial installations where aesthetics matter.
- IP68 Junction Box: Fully sealed junction box provides superior moisture and dust protection for long-term field reliability.
- Staubli EVO2 Connectors: Industry-standard connectors ensure secure, reliable electrical connections.
- Industry-Leading 30-Year Warranty: 30-year product warranty and 30-year linear power performance warranty — one of the strongest in the industry.
- Bankable Investment: Winner of the Leadership in Solar Energy award for three consecutive years; listed as a Top Solar Product 2021–2022.
Electrical Specifications (STC)
| Rated Output Power (Pmpp) | 460W (STC) / 344W (NOCT) |
| Module Efficiency | 21.26% |
| Open Circuit Voltage (Voc) | 41.97 V |
| Short Circuit Current (Isc) | 13.75 A |
| Max Power Voltage (Vmpp) | 35.36 V |
| Max Power Current (Impp) | 13.00 A |
| Maximum System Voltage | 1,500 VDC (UL & IEC) |
| Maximum Series Fuse | 25 A |
| Fire Performance Type | Type 1 |
Temperature Coefficients
| Power (Pmpp) | -0.35% / C |
| Voltage (Voc) | -0.274% / C |
| Current (Isc) | +0.045% / C |
| NOCT | 45 +/- 2 C |
Mechanical Specifications
| Cell Type | SE-PERC (Selective Emitter PERC) |
| Number of Cells | 120 Half-Cells |
| Dimensions | 75.1 in x 44.6 in x 1.3 in (1908 x 1134 x 35 mm) |
| Weight | 52.9 lbs (23.1 kg) |
| Frame | Anodized Aluminum Alloy, Black |
| Glass | 3.2mm Anti-Reflection Coating, High Transmission, Low Iron, Tempered |
| Encapsulant | POE |
| Junction Box | IP68 |
| Connector Type | Staubli EVO2 |
| Output Cable | 4mm2 (EU) / 12AWG, 47.2 in (1200mm) |
| Load Capacity | 5400 Pa Snow Load / 5400 Pa Wind Load (clamping method) |
Packaging & Logistics
| Modules per Pallet | 31 |
| Pallets per 40ft Container | 24 |
| Modules per 40ft Container | 744 |
| Pallet Dimensions | 76.29 x 44.48 x 49.76 in (1938 x 1130 x 1264 mm) |
| Pallet Weight | 1,581 lbs (717.1 kg) |
Technical Resources
- Product Datasheet / Technical Specifications (PDF)
- Installation Manual (PDF)
- Warranty Information – 30-Year Product & Performance Warranty
Why Choose Solar Cellz USA?
Solar Cellz USA is a trusted B2B distributor of premium solar equipment serving installers, contractors, and developers across the United States. We offer competitive pricing, expert technical support, and fast fulfillment on top-tier products like the Aptos DNA series.
For volume pricing, pallet orders, or container-level quotes, contact our team directly at sales@solarcellzusa.com or call 980-729-7442.
High Efficiency and Power Output
Installing apartments with 460W solar panel technology like the DNA-120-MF10-460W ensures high energy efficiency and reliable power output. This solar panel uses advanced mono PERC cells with split cell design, maximizing sunlight absorption and minimizing losses. As a result, residents benefit from consistent and clean energy generation, helping lower electricity bills while reducing carbon footprint. The 460W capacity is ideal for apartment rooftops or communal solar installations, providing robust power to meet various energy needs without requiring excessive space.
Durability and Weather Resistance
Apartments with 460W solar panel systems are designed to withstand harsh environmental conditions. The DNA-120-MF10-460W features a durable frame and high-quality tempered glass, ensuring resistance against wind, snow, and hail. Its advanced encapsulation technology protects the internal cells from moisture and dust, enhancing longevity. This solar panel suits urban residential setups where robust, low-maintenance performance is critical. The reliable construction guarantees long-term energy production, making it a smart investment for sustainable apartment living.
Easy Installation and Integration
Choosing apartments with 460W solar panel options like the DNA-120-MF10-460W simplifies the installation process. Its split cell design makes the panel lighter and easier to handle, reducing labor time and cost. Additionally, this solar panel integrates seamlessly with modern solar inverters and battery storage systems common in apartment complexes. Its compatibility enhances energy management and supports off-grid or grid-tied systems. This ease of integration helps apartment owners and building managers adopt solar energy quickly and efficiently, promoting eco-friendly living environments.
