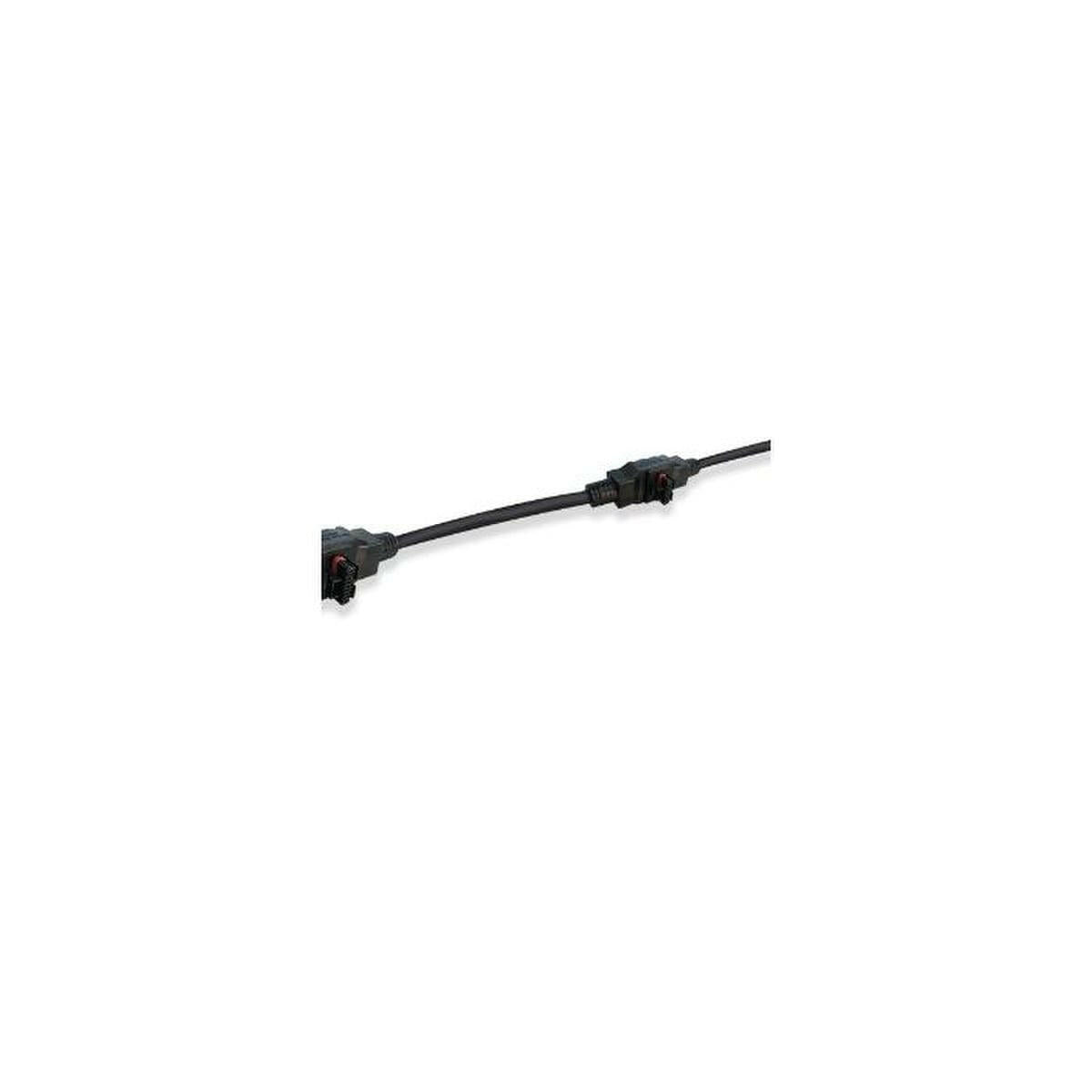

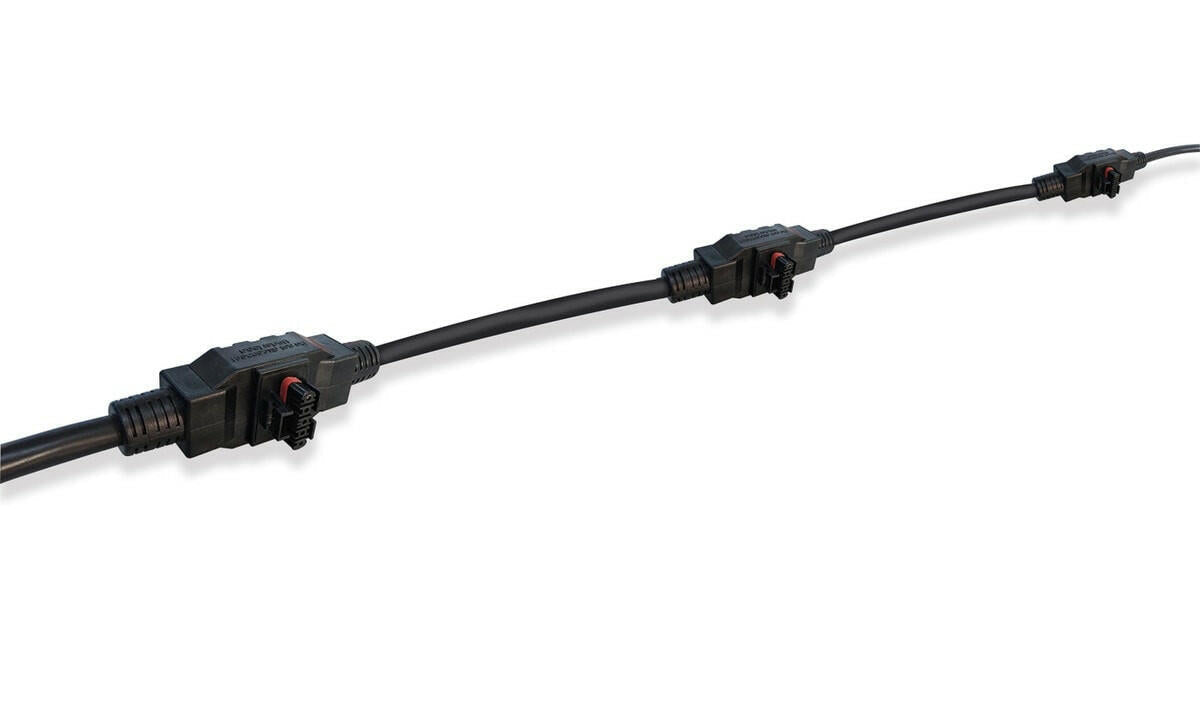

APSystems QT2 3-phase 5-C Bus Cable (10AWG, TC, 2.4m)

Features

• Provides the junction of the inverter's AC output and grid connection
• A series of bus cable contains 40 connectors, each connector spacing is 240 cm
• The 200N·60S tension at the t connector does not affect electrical and waterproof performance
• The surface has no abrasion, scratches, deformation and other defects
• Use blank cartons for packaging and blue label


Specifications

• Type: 3 Phase
• Wire Size: 10 AWG
• Wire Type: E489601 (UL) Type TC-ER 5C/10 AWG 90°C WET OR DRY 600 V - C (UL) Type CIC 90°C 600V FT1 XLPE 5C/10AWG DIR BUR SUN RES COLD BEND HWATEK
• Insulation Material: Thermoplastic
• Voltage Rating: 600 V
• Dielectric Strength: 4000 V
• Resistivity: ≥500 mohm Insulation
• Number of Strands: 5
• Current Rating: 40 A
• Waterproof Rating: IP67
• Length: 2.4 m
• Wire Terminations: Black - L1, Red - L2, Blue - L3, White - N, Green - PE
• Insert & Draw Frequency: ≥50 Times
• Standards: RoHS Compliant


Documents

• Technical Drawing
