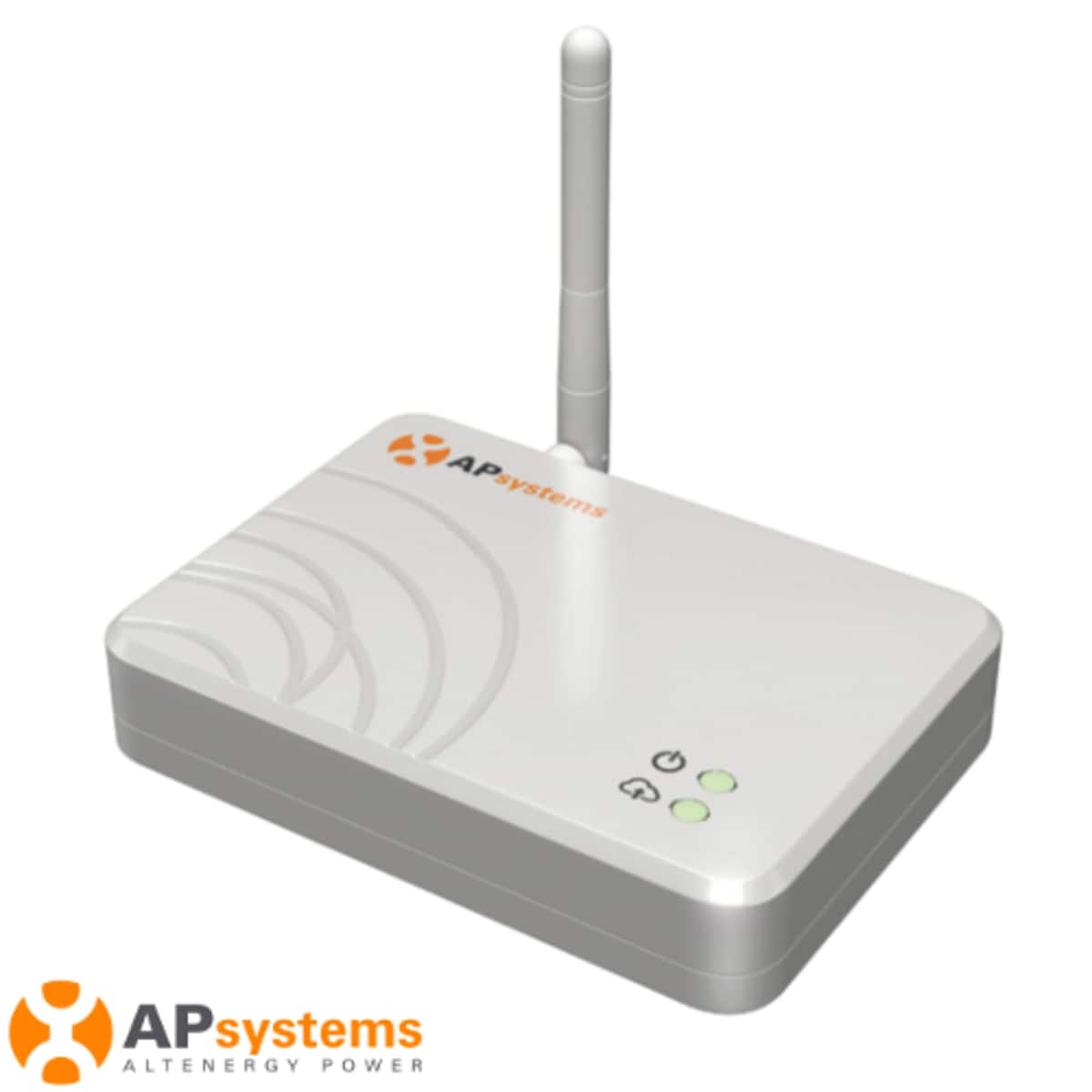

APS Systems 802.11 g/n ZigBee 2.4 GHz Standard ECU-R Gateway

The APsystems Gateway, our state-of-the-art Energy Communication Unit (ECU), is the information gateway for APsystems inverters. It collects and transfers module performance data giving you comprehensive monitoring and control over each individual module, optimizing the performance of your solar array.

Features

• Gathers and transmits data from inverters
• Each inverter is monitored at the module level
• Built-in Wi-Fi
• Compact size and adaptable installation
• ZigBee (ZigBee) wireless networking
• Connect to the ECU-R via your smartphone

Specifications

• Type: Standard
• Integrated Wi-Fi: 802.11 g/n
• Communication Interface: ZigBee 2.4 GHz
• Ethernet: 10/100 Auto-Sensing, Auto-Negotiation
• Wireless Security: WEP, WPA2-PSK
• USB Interface: Power only (5V-1A)
• Power Consumption: 1.7 W
• Dimensions: 3.4 in (W) x 4.8 in (L) x 0.98 in (D)
• Operating Temperature: -4 to 149°F
• Standards:
  • IEC 60950-1, EN60950-1
  • IEC 60529, EN 60529
  • ANSI/UL 60950-1, CAN/CSA C22.2 No.60950-1
  • UL50E, FCC part 15
  • EN61000-6-1, EN61000-6-3
  • ICES-003, AS/NZS 60950-1
  • GB/T17799

Documents

• Specification Sheet
