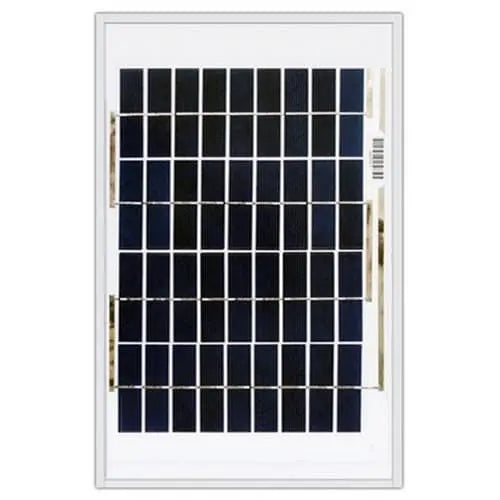

Ameresco Solar 10J 10 Watt Solar Panel
Product description
Shipping & Return
Ameresco Solar 10J – 10 Watt Photovoltaic Solar Panel
Ameresco Solar's Class 1 Division 2 (C1D2) modules are the direct result of over three decades of design, manufacturing, and use. Attending to every detail in the design and manufacture of our products, our process controls and testing methods have optimized module life and electrical energy production.
Key Features
- Built to Last: Proven in the harshest environments — from mountaintops to off-shore platforms, weather stations in Antarctica, and telephone signal repeaters in the Australian outback.
- Accessible Junction Box: J-type junction box with accessible terminals for easier module interconnections in off-grid applications. Allows fitting cable glands for various sections.
- High Reliability: Cell interconnections and diode placement use well-established industry practice, field-proven for excellent reliability.
- Thick, Durable Scratch-Resistant Back Sheet: Extra insulation and increased resistance to protect against rough handling. Made of white polyester for longer-term performance.
- ISO 9001 Factory Certified
- Class 1, Division 2 Hazardous Location Certified
Electrical Specifications (STC: 1000W/m², AM1.5, 25°C)
| Parameter | STC Value | NOCT Value |
|---|---|---|
| Maximum Power (Pmax) | 10W | 7.2W |
| Voltage at Pmax (Vmpp) | 17.9V | 15.9V |
| Current at Pmax (Impp) | 0.56A | 0.45A |
| Short Circuit Current (Isc) | 0.58A | 0.47A |
| Open Circuit Voltage (Voc) | 22.1V | 20.1V |
| Module Efficiency | 8.8% | — |
| Tolerance (Pmax) | ±10% | — |
| Nominal Voltage | 12V | — |
| Limiting Reverse Current | 0.65A | — |
| Temp. Coefficient of Isc | 0.105%/°C | — |
| Temp. Coefficient of Voc | -0.360%/°C | — |
| Temp. Coefficient of Pmax | -0.45%/°C | — |
| NOCT | 47±2°C | — |
| Maximum Series Fuse Rating | 1A | — |
| Maximum System Voltage | 50V (NEC) / 1000V (IEC) | — |
Mechanical Specifications
| Parameter | Value |
|---|---|
| Solar Cells | 36 crystalline silicon cut cells connected in series |
| Front Cover | High transmission 3.2mm (1/8") tempered glass |
| Encapsulant | EVA |
| Back Cover | White polyester |
| Frame | Silver anodized aluminum |
| Junction Box | IP65 with 4 terminal screw connection block; accepts PG 13.5, M20 13mm (½") conduit, or cable fittings accepting 6-12mm diameter cable. Terminals accept 2 (8-14 AWG) wire. |
| Dimensions | 16.73 x 10.74 x 1.97 in (425 x 273 x 50 mm) |
| Weight | 1.9 kg / 4.2 lbs |
Certifications
- IEC 61215 (ed.2) and EN 61215:2005-08
- IEC 61730-1 and IEC 61730-2 / EN 61730-1:2007 and EN 61730-2:2007
- UL 1703 & ULC ORD-C1703 (Listed by Intertek ETL) – Class C Fire Rating
- Class I, Division 2, Group A, B, C, D Hazardous Location (FM 3611 / CAN/CSA C22.2 No. 213)
- ISO 9001 Factory Certification
- Conforms with European Directive 2006/95/EC
Warranty
- 2 years: Free from defects in materials and workmanship
- 12 years: 90% minimum power output
- Optional 25-year warranty available
